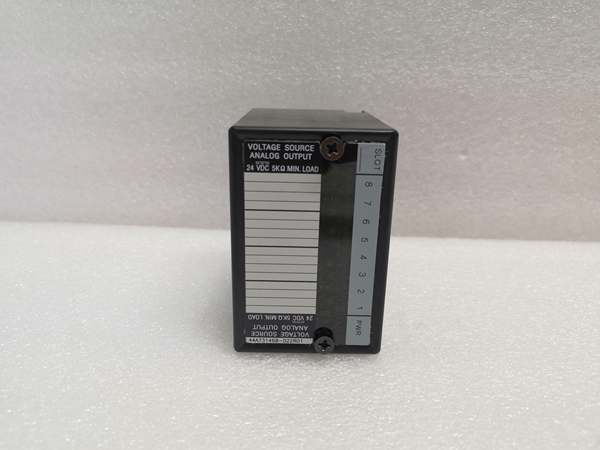

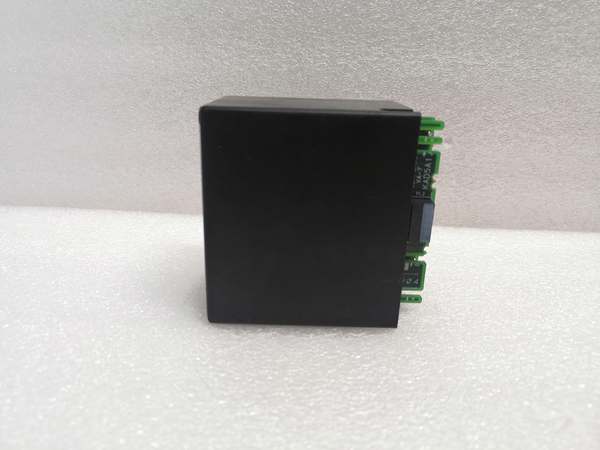

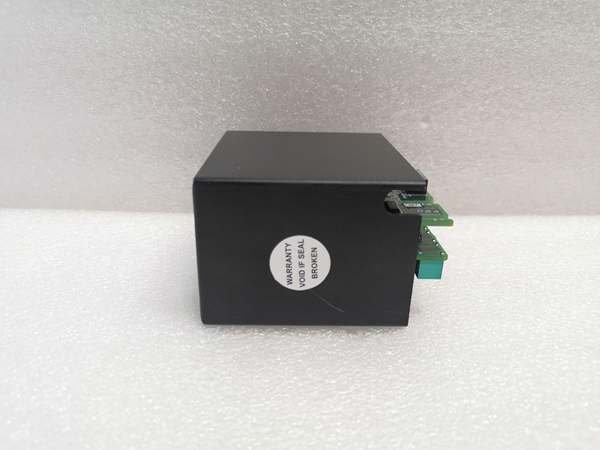

GE IC670ALG310-JA | 8-Channel Isolated Analog Voltage Output Module – Engineering Service Manual

  • Model: IC670ALG310-JA
  • Alt. P/N: IC670ALG310, IC670ALG310J, IC670ALG310JA
  • Product Series: GE Fanuc Genius Field Control / Series 90-70 (now Emerson Automation Solutions)
  • Revision: JA (indicates Revision JA version)
  • Hardware Type: 8-Point Isolated Analog Voltage-Source Output Module
  • Key Feature: 8 independent voltage output channels with user-configurable scaling, 14-bit resolution, and advanced diagnostics including overrange/underrange fault detection, with output range from -10V DC to +10V DC or 0 to 10V DC. Channels grouped in two isolated groups of 4, providing 850Vrms isolation between groups and channel-to-ground.
  • Primary Field Use: High-precision analog signal generation for process control applications, converting digital control commands to analog voltage signals for driving control valves, sensor excitation, and signal simulation in industrial automation systems.
Get a Quote
In Stock
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide. Brand:

Description

Hard-Numbers: Technical Specifications

  • Output Channels: 8 analog voltage outputs (2 isolated groups of 4 channels)
  • Output Voltage Range: -10V DC to +10V DC or 0 to 10V DC
  • Resolution: 14-bit
  • Linearity: ±0.05% F.S.
  • Settling Time: ≤1.5ms (to 0.1% accuracy)
  • Isolation Rating: 850Vrms between groups and channel to ground
  • Power Supply: 18-30V DC (external power input required)
  • Current Draw from BIU: 170 mA
  • Operating Temperature: -40°C to +85°C
  • Mechanical Dimensions: 149.2 x 44.45 x 115.6 mm (5.875 x 1.75 x 4.55 inches)
  • Weight: 0.45 kg (0.99 lbs)
  • Communication Protocol: Genius Bus (compatible with DF1)
    GE IC670ALG310-JA

    GE IC670ALG310-JA

The Real-World Problem It Solves

This module eliminates signal interference and ground loops in industrial control systems. Its isolated channel design protects equipment from electrical transients while maintaining precise analog signal output for critical process control applications.
Where you’ll typically find it:
  • Valve position control in oil/gas pipelines
  • Temperature regulation in chemical reactors
  • Speed control of variable frequency drives (VFDs)
Bottom line: It provides isolated, high-resolution analog voltage outputs to maintain precise control in harsh industrial environments.

Hardware Architecture & Under-the-Hood Logic

This module contains its own microprocessor and digital-to-analog converters (DACs) for each channel. Channels are divided into two isolated groups with 850Vrms isolation between groups and channel-to-ground.
Signal flow breakdown:
  1. Digital commands are received via Genius Bus from the PLC/PAC system
  2. Microprocessor processes commands and applies user-configurable scaling parameters
  3. DAC converts digital values to analog voltage outputs (-10V to +10V DC)
  4. Output signals are amplified and isolated through dedicated isolation circuitry
  5. Status information and diagnostics are continuously monitored and reported back to the CPU
  6. Calibration data is stored in FLASH memory for easy field recalibration
  7. Fault safety modes activate on communication failure or detection of abnormal conditions
    GE IC670ALG310-JA

    GE IC670ALG310-JA

Field Service Pitfalls: What Rookies Get Wrong

Incorrect Power Supply VoltageTechnicians often use unregulated power supplies outside the 18-30V DC range, causing module damage or erratic operation.
  • Field Rule: Measure input voltage with multimeter before connection. Use a regulated power supply with overcurrent protection.
Poor Shielding PracticesRookies often ground shields at both ends, creating ground loops and signal distortion.
  • Field Rule: Use twisted-pair shielded cable. Ground shield at controller end only.
Ignoring Group IsolationInstalling non-isolated wiring between channel groups violates isolation requirements and causes signal corruption.
  • Field Rule: Maintain isolation between the two 4-channel groups. Run separate cables for each group to prevent cross-talk.
