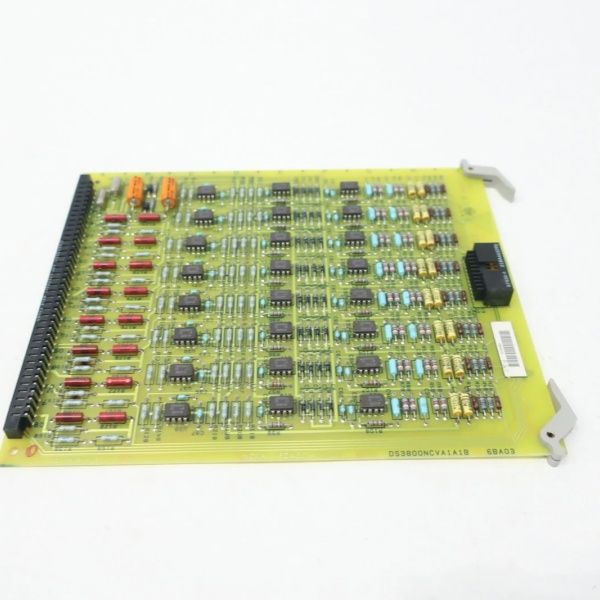

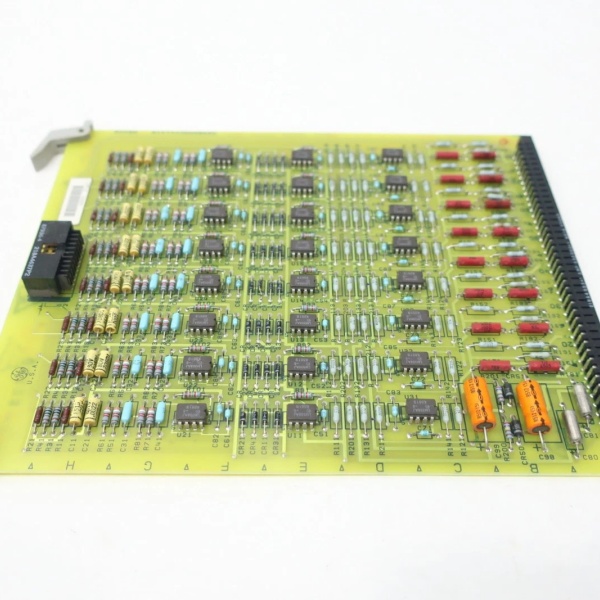

GE DS3800NCVA1A1B | Current-Loop Input Board for Mark IV / EX2000 Turbine Control

DS3800NCVA1A1B Product Overview
The DS3800NCVA1A1B is a current-loop input isolator board that plugs into GE Mark IV turbine and EX2000 exciter control racks. Occupying a 6BA03 Euro-card slot, it acts as the analog “front end” between field transducers and the 5 V CPU: it accepts 4–20 mA or ±10 V current-loop signals, provides 1500 Vdc group isolation, buffers the result to the NDIA data bus, and clamps incoming surges with on-board MOVs. Because all copper traces are fully encapsulated in high-temperature epoxy, the unit is treated as a line-replaceable module—any internal fault requires a complete card swap rather than component-level rework. The module is fully hot-swappable when the rack is powered down, and its low-profile epoxy package allows adjacent-slot population without additional cooling.

Current-Loop Isolation: The on-board isolation amplifiers accept 4–20 mA or ±10 V on the same terminal strip. For the control engineer this eliminates external signal conditioners and ground-loop errors, reducing wiring complexity and spare-part count.

Epoxy-Sealed Construction: All internal copper is encapsulated in high-temperature epoxy. In coastal or industrial sites with conductive dust and high humidity the seal prevents trace-to-trace shorting that would otherwise cause random “CURRENT LOOP FAIL” alarms after ten-plus years of service. The trade-off is non-repairability—any internal fault requires a whole-card exchange—but this is offset by reduced troubleshooting time and the fact that plants stock one spare instead of maintaining a repair bench.

Quick-Connect Field Terminals: The board is normally sold together with terminal block DS3800DSWA, providing screw-clamp landing for field wires and on-board MOVs for surge suppression. For maintenance crews this translates to a three-minute replacement instead of a half-shift re-wiring job.

In combined-cycle power plants the board is installed in the Mark IV turbine control core where it lands isolated 4–20 mA signals from exhaust-temperature transmitters and ±10 V from compressor-discharge pressure transmitters. The on-board opto-isolators keep 480 V switching transients from walking into the 5 V CPU data bus.

On utility-scale EX2000 static exciters the same card is used to isolate the brushless-exciter field-current transmitter (4–20 mA) and the diode-fail analog output. Because the inputs are group-isolated, a shorted transducer will not drag down the entire analog I/O rack.

Frequently the same part number is used on mechanical-drive gas compressors to land the 4–20 mA inlet-pressure transmitter and the ±10 V guide-vane position feedback. Its ability to mix current-loop and low-level voltage signals on one card makes it a universal “current isolator” for any Mark IV loop that needs deterministic, ground-loop-free operation.
