Description
Hard-Numbers: Technical Specifications
- Functional Acronym: SDCI (Servo Digital Control Interface)
- Group Number: G1 (Group 1 variant)
- Revision: GB (Board Revision G, Artwork Revision B)
- Core Location: Control Core (R> processor rack) – typically Location 1-3 range
- Servo Interfaces: Multiple servo control interfaces (varies by Group 1 configuration)
- Command Output: Analog and/or digital command outputs to servo controllers
- Feedback Input: Multiple feedback input channels (LVDT, resolver, or encoder feedback)
- Position Feedback: LVDT (Linear Variable Differential Transformer) inputs for position sensing
- Signal Conditioning: Enhanced signal conditioning for improved noise immunity
- Gain/Offset Adjustment: Potentiometers for servo loop tuning
- Trip Function: Integrated trip output for emergency actuator shutdown
- Isolation: Galvanic isolation between control system and servo equipment
- LED Indicators: LED indicators for servo status, fault conditions, and feedback status
- Power Requirements: Typically 24 V DC or 125 V DC from control system power supply
- Dimensions: Standard Mark V board form factor (typically 3″ H × 11.5″ W)
- PCB Coating: Normal coating (non-conformal)
- Manual: GEH-6202 (Servo Interface Board Manual)

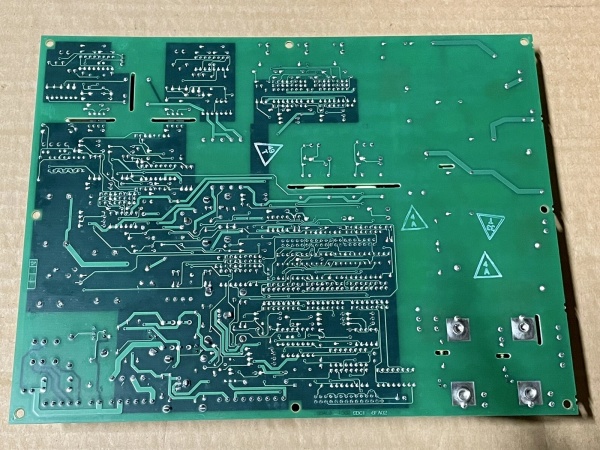

DS200SDCIG1AGB
The Real-World Problem It Solves
The Mark V control system requires precise interface between the governor processor and servo-controlled actuators such as fuel valves, steam valves, inlet guide vanes (IGVs), and other precision positioning devices. The DS200SDCIG1AGB (Servo Interface Board – Group 1, Revision GB) provides this interface, converting digital position commands from the R> processor into servo-compatible analog or digital command signals while processing actual position feedback from LVDTs, resolvers, or encoders. This board implements closed-loop servo control logic, comparing commanded position with actual position and adjusting servo output to minimize position error. The revision GB represents a mature hardware design with potential improvements in signal conditioning accuracy, enhanced feedback processing, improved noise immunity, or additional diagnostic capabilities over earlier revisions. Without this board, precise position control of critical actuators would be impossible, leading to inefficient turbine operation, unstable speed/load control, or equipment damage.
Where you’ll typically find it:
- Control Core (R> processor rack) – Location 1-3 range
- Gas turbine control systems with servo valve position control
- Steam turbine control systems with steam valve servo control
- Applications with inlet guide vane (IGV) position control
- Systems requiring precise actuator position control with enhanced feedback processing
- Turbines with LVDT or resolver-based position feedback
Bottom line: Precision servo interface for critical actuator position control—Group 1 variant, revision GB configuration, enabling closed-loop positioning of fuel valves, steam valves, IGVs, and other actuators.
Hardware Architecture & Under-the-Hood Logic
The DS200SDCIG1AGB (Group 1, Revision GB) is the servo interface board for the Mark V control system. This revision GB represents a mature hardware evolution, potentially incorporating enhanced signal conditioning circuits, improved feedback processing, updated isolation barriers, or artwork modifications based on GE engineering change orders. The Group 1 configuration provides specific servo interface options optimized for general-purpose servo control applications. The board receives digital position commands from the R> processor and converts these commands into servo-compatible analog or digital command signals. Position feedback from LVDTs, resolvers, or encoders is conditioned and processed to provide accurate position information for closed-loop control. The servo loop compares commanded position with actual position and adjusts servo output to minimize position error. The revision GB design may include improved LVDT excitation stability, enhanced analog output accuracy, or additional diagnostic LED indicators compared to earlier revisions.
Signal flow:
- R> processor issues digital position command to SDCI
- Command conversion circuitry generates servo-compatible analog or digital output
- Servo controller receives command signal and drives actuator accordingly
- Actuator position changes are detected by position feedback device (LVDT/resolver/encoder)
- LVDT excitation circuitry provides stable AC excitation to LVDT primary (revision GB may have improved stability)
- LVDT/resolver/encoder feedback signals are conditioned and demodulated
- Enhanced feedback processing circuitry (revision GB) extracts accurate position information
- Position feedback returns to servo loop for error calculation
- Servo loop calculates position error and adjusts servo output accordingly
- Gain and offset potentiometers allow servo loop tuning
- Integrated trip function provides emergency actuator shutdown
- Galvanic isolation separates control system ground from servo equipment ground
- LED indicators display servo status, fault conditions, and feedback status
- Group 1 configuration provides general-purpose servo interface
- Board operates in control core with R> processor redundancy
DS200SDCIG1AGB
Field Service Pitfalls: What Rookies Get Wrong
Assuming revision GB behaves identically to earlier revisions causes diagnosis confusionNot understanding GB-specific improvements. I’ve seen technicians expecting revision GB to behave exactly like earlier revisions, causing confusion when troubleshooting signal issues.
- Field Rule: Understand revision GB may have different operational characteristics. Signal conditioning may be enhanced compared to earlier revisions. LVDT excitation stability may be improved. Feedback processing accuracy may be different. LED indication patterns may differ. Consult revision GB-specific documentation for operational differences. Never assume GB behavior matches earlier revisions—learn GB-specific characteristics.
Failing to verify GB-enhanced feedback processing causes calibration errorsNot validating improved feedback signal accuracy. I’ve seen technicians installing revision GB boards but not verifying improved feedback processing characteristics, causing calibration errors or position inaccuracy.
- Field Rule: Verify revision GB feedback processing characteristics after installation. Test feedback signal accuracy with known displacements. Check feedback stability across full range. Compare feedback readings with earlier revision if available. Verify feedback matches actuator actual position. Calibrate feedback scaling if adjustable. Never assume feedback processing is unchanged—GB may have improved accuracy or different characteristics.
Improper LVDT calibration despite GB improvements causes position errorIncorrect LVDT scaling or zero adjustment. I’ve seen technicians assuming GB enhancements compensate for poor LVDT calibration, causing actuators to drift or fail to reach commanded position.
- Field Rule: Always calibrate LVDT feedback after SDCI replacement, even with GB enhancements. Verify LVDT zero position corresponds to actual actuator zero. Check LVDT full-scale position matches actuator full travel. Adjust LVDT scaling potentiometers if required. Test position accuracy across entire range. Never assume GB improvements eliminate need for calibration—calibrate after every SDCI change.
Confusing SDCI with other servo boards causes installation errorsMixing up SDCI and SBCA or other servo boards. I’ve seen technicians replacing SDCI with SBCA boards, causing incompatible interfaces and control failures.
- Field Rule: Clearly identify SDCI vs. other servo boards. SDCI is Servo Digital Control Interface—SBCA is Servo Board Assembly. Check board label for “SDCI” designation. Compare original board type with replacement board. Consult GEH-6202 manual for SDCI-specific configuration. Never assume all servo boards are interchangeable—verify board type matches application requirements.
Skipping GB compatibility verification causes installation failuresInstalling revision GB without checking compatibility. I’ve seen technicians replacing earlier SDCI revisions with revision GB boards without verifying compatibility, leading to configuration errors or interface failures.
- Field Rule: Verify revision GB compatibility before installation. Revision GB may have different jumper positions, connector assignments, or component values. Compare original board revision with replacement board. Consult GEH-6202 manual for revision compatibility matrix. Check for any engineering change notices (ECNs) applying to revision GB. Document any configuration differences between revisions. Never assume revision GB is drop-in compatible—verify GB-specific requirements.
Overlooking GB-specific diagnostic LEDs causes missed fault informationNot understanding GB LED indication patterns. I’ve seen technicians ignoring additional LED indicators on revision GB, missing valuable diagnostic information.
- Field Rule: Learn revision GB-specific LED indication patterns. GB may have additional LED indicators or different flash patterns. Understand what each LED indicates (status, fault, feedback validity, trip status). Use LED information for fault diagnosis. Never assume LED behavior matches earlier revisions—learn GB-specific LED patterns.
Improper servo loop tuning despite GB enhancements causes control instabilityMisadjusting gain and offset potentiometers. I’ve seen technicians not understanding GB-enhanced processing, setting gain/offset incorrectly, causing oscillation or sluggish response.
- Field Rule: Adjust servo loop gain and offset carefully, considering GB enhancements. GB-enhanced feedback processing may require different gain settings than earlier revisions. Start with original board settings, then fine-tune if needed. Monitor actuator response during adjustment. Document final potentiometer settings. Never assume gain/offset settings transfer directly—GB may require different tuning.
Forgetting to test emergency trip function causes protection failureNot verifying integrated trip function. I’ve seen technicians replacing SDCI boards but not testing emergency trip, discovering trip failures during actual emergency conditions.
- Field Rule: Always test emergency trip function after SDCI installation. Verify trip command causes actuator to move to fail-safe position. Test trip response time. Check that trip overrides normal servo control. Document trip function test results. Never assume trip function works—verify emergency response before placing in service.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
