Description
Product Core Brief

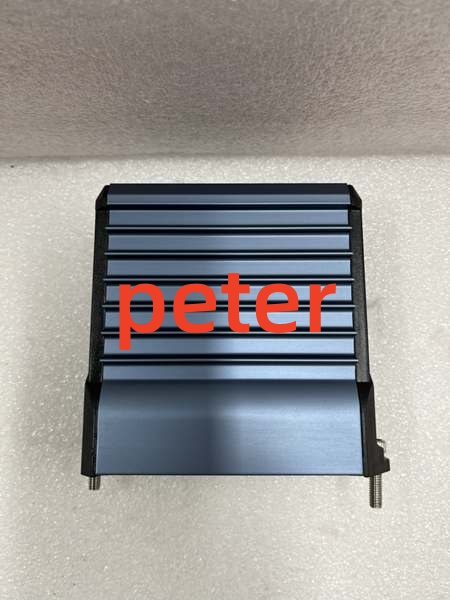

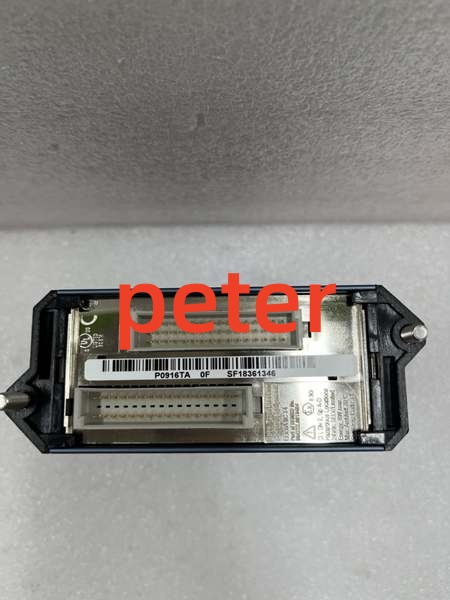

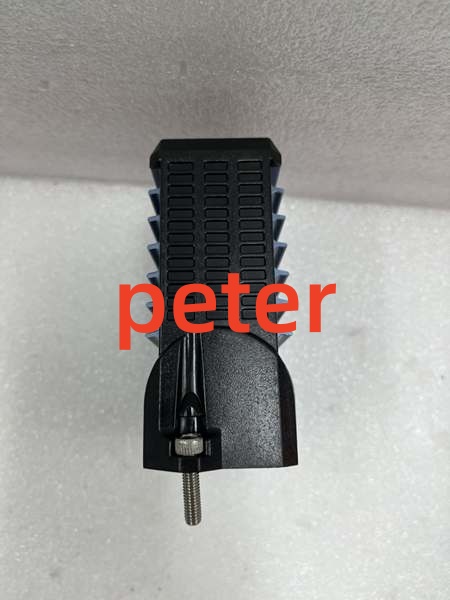

- Model: FBM242 P0101AG
- Brand: Foxboro (Invensys / Schneider Electric)
- Series: I/A Series Compact 200 Distributed Control System (DCS)
- Core Function: Provides 16 channels of fully isolated discrete outputs for external power switching and field device control.
- Product Type: Discrete Output Field Bus Module (FBM)
- Key Specs: 16 Channels | External Power | Multi-Voltage Support | P0101AG Part Number
- Condition: New Original (New Surplus) | Factory Sealed
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Discrete Output Field Bus Module (FBM) |
| System Platform | Foxboro I/A Series Compact 200 DCS |
| Channel Count | 16 Independent Isolated Output Channels |
| Supported Voltages | 15-60 VDC, 120 VAC/125 VDC, 240 VAC |
| Load Capacity | Up to 2 A per channel (at 60 VDC) |
| Manufacturer Part Number | P0101AG |
| Power Source | External Customer-Supplied Power |
| Mounting | Plug-in Compact 200 Series FBM Baseplate |
| Application | Solenoids, Relays, Motor Starters, Alarms |
| Environmental Rating | Industrial Grade, G3 Harsh Environment |
| Condition | New Original (New Surplus) |
| Warranty | 1-Year Functional Warranty |
FBM242
Product Introduction
Driving high-power field loads reliably in an I/A Series system requires an output module that can handle diverse voltage levels while maintaining strict electrical isolation. The delivers 16 fully isolated discrete outputs, serving as a robust interface between the DCS logic and external field actuators.
Designed for the Compact 200 series, this module supports a wide range of external supply voltages (from 15-60 VDC up to 240 VAC) and features configurable fail-safe options and ladder logic support. The ensures safe, high-current switching for critical sequential control, interlocks, and valve actuation in demanding chemical, power, and oil & gas environments.
Key Selling Points & Differentiators
- Multi-Voltage Versatility: Supports multiple discrete output voltage levels (15-60 VDC, 120 VAC/125 VDC, 240 VAC) using external power, eliminating the need for external signal conditioning or relay panels.
- High-Current Capacity: Rated for up to 2 A per channel (at 60 VDC) with appropriate terminal assemblies, capable of directly driving heavy-duty solenoids and motor starters.
- Complete Channel Isolation: Every output channel is completely isolated from other channels and ground, preventing ground loops and ensuring system stability in noisy industrial environments.
- Verified Functionality: Every undergoes a 24-hour live load test on a dedicated I/A Series test rack before shipping, complete with a signed test report.
- Not Recommended For: Do not use this module for analog signals or discrete inputs. For discrete inputs, use the FBM217 or FBM207 series.
- Stock Availability: Current inventory is factory-sealed new surplus with traceable lot numbers; typically ships within 48 hours of order confirmation.
- Warranty Backed: Includes a 1-year functional warranty covering manufacturing defects and DOA conditions, with no restocking fees for verified failures.
FBM242
FAQ
Yes. All units in stock have passed our 24-hour live bench test and include a signed test report. We ship same-day for orders placed before 2 PM EST, so you’ll have tracking before end of day.
The is designed specifically for the Compact 200 series FBM baseplates. Verify your baseplate revision and node processor firmware first to ensure proper recognition of the discrete output block. Send us your baseplate part number, and we’ll confirm compatibility within 30 minutes.
Do I need to reconfigure the module after installation?
No. The retains its configuration in the I/A Series node processor. Simply plug it into the same slot, and the system will recognize it. However, always verify output fail-safe configurations, filter times, and ladder logic assignments in your DCS configuration tool after replacement.
What if the module fails within the warranty period?
We offer a no-questions-asked replacement for any verified manufacturing defect. Ship the failed unit back with your RMA number, and we’ll send a replacement within 24 hours of receipt. We also provide a loaner program for critical control loops to minimize downtime.
Can this module handle high-interference environments?
Yes. The features robust electrical isolation and is built with a rugged extruded aluminum enclosure designed for harsh G3 environments. However, ensure your field wiring uses proper shielding and that external power supplies are adequately filtered.
Is this a refurbished or new surplus unit?
This is New Original (New Surplus) – factory sealed, never installed, with full traceability to the original manufacturing lot. It is not refurbished, repaired, or pulled from a decommissioned system. We provide the original manufacturer’s lot code upon request for your quality records.
Quality Transparency SOP
- Incoming Verification: Source traceability confirmed via lot code; anti-counterfeit visual inspection; serial number cross-referenced with OEM records; accessories verified.
- Live Bench Test: Dedicated I/A Series test rack; power-on self-check; 16-channel discrete switching test; external power load validation; node communication handshake test; 24-hour continuous load test; signed test report generated.
- Electrical Tests: Insulation resistance verified at 500V megger (>10 MΩ); ground continuity confirmed; channel-to-channel isolation validated.
- Firmware Verification: Firmware version recorded; DIP/jumper configuration backed up and documented.
- Final QC & Packaging: QC sign-off; anti-static seal applied; shock protection installed; QC Passed label affixed with date and inspector ID.
Test photos and video available upon request. We never claim “100% failure-free” – we provide verified, tested units with documented performance.
Technical Risk Avoidance
- External Power Faults: Risk: Output failure or module damage. Prevention: Verify external power supply voltage, polarity, and capacity before connecting to the terminal assembly. Field Note: A reversed external power supply blew the output fuses and damaged the field device. Check polarity and voltage first.
- Baseplate Seating: Risk: Intermittent communication or channel dropouts. Prevention: Ensure the module is fully seated and locked onto the baseplate. Field Note: A partially seated FBM caused random output failures during vibration. Push firmly until the latch clicks.
- Fail-Safe Misconfiguration: Risk: Unsafe process state during failure. Prevention: Verify fail-safe mode (hold vs. de-energize) matches your process safety requirements. Field Note: A valve held open during a controller failure caused an overpressure event. Configure fail-safe correctly.
- Terminal Assembly Mismatch: Risk: Poor connection or arcing. Prevention: Verify the terminal assembly (TA) matches the pinout and voltage rating. Field Note: Using a TA from an FBM241 on an caused reversed polarity. Always verify the TA part number.
- ESD Damage: Risk: Silent channel failure. Prevention: Use grounded wrist strap and anti-static mat during handling. Field Note: We’ve tested modules that passed power-on but had dead channels after 48 hours due to ESD. Handle with care.
