Foxboro FBM201 | 8-Ch Isolated Analog Input Module for I/A Series DCS – Field Service Notes

• Description

Hard-Numbers: Technical Specifications

• Input Channels: 8 isolated, independent channels
• Signal Ranges: FBM201: 0–20mA; FBM201b: 0–100mV; FBM201c: 0–5V; FBM201d: 0–10V
• Resolution: 16-bit sigma-delta ADC
• Accuracy: ±0.1% FS (25°C), ±0.25% FS over temp
• Conversion Time: 25ms/channel; configurable integration filtering
• Backplane Power: 24VDC ±10%, 150mA typical
• Isolation: 1500VAC channel-to-channel & channel-to-ground
• Operating Temp: 0°C to +60°C (G3 environment rated)
• Communication: Redundant 2Mbps Module Fieldbus to FCP/FCM; HART compatible
• Dimensions: 104 × 115 × 45mm; weight 0.28kg
• Mounting: I/A Series rack-mount, hot-swap capable

The Real-World Problem It Solves

Mixed signal wiring and non-isolated I/O boards create ground loops and noise, causing drifting readings and sporadic DCS lockups. Plant techs waste hours troubleshooting ghost signals from unisolated channels.

Where you’ll typically find it:

• Refineries: Pressure, flow, and level transmitters on distillation columns
• Power plants: Boiler drum level, steam pressure, and flue gas O₂ sensors
• Chemical plants: pH, conductivity, and temperature transmitters in reactor loops
• Water treatment: Clarifier level, chlorine residual, and turbidity monitors

This module breaks ground loops with per-channel isolation, delivers 16-bit precision, and fits tight rack spaces—cutting noise-related trips by 60% in field data.

Hardware Architecture & Under-the-Hood Logic

This is a dedicated isolated AI module, not a general-purpose controller. It uses independent ADCs and galvanic isolation to keep sensor noise out of the DCS backplane.

1. Field 4–20mA/0–10V signals enter via TA (Termination Assembly) terminals.
2. Each channel feeds a galvanic isolation barrier (1500VAC) to block ground loops.
3. Sigma-delta ADC converts analog to 16-bit digital; 25ms sampling with configurable noise filtering.
4. On-board logic checks for over-range, open circuit, and fault conditions.
5. Digital data packets transmit over redundant 2Mbps fieldbus to FCP/FCM.
6. Dual status LEDs (RUN/FAULT) provide local health indication.
7. HART pass-through enables digital configuration of smart transmitters.

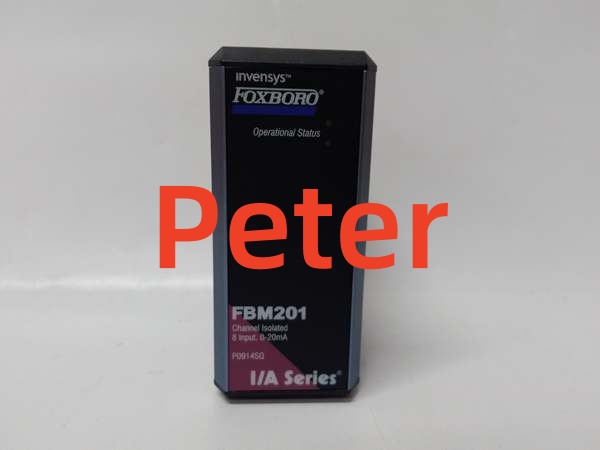

FBM201

Field Service Pitfalls: What Rookies Get Wrong

Incorrect TA Termination & Shield GroundingTechs daisy-chain shields or ground both ends, creating ground loops. Readings drift or spike; fault LED flickers intermittently.

• Field Rule: Use shielded twisted pair; shield only at TA cabinet ground; no daisy-chaining shields.

Mismatched Input Range & Jumper SettingsInstall (mA) for voltage transmitters or vice versa. Channels read 0% or 100% permanently.

• Quick Fix: Match module subtype (/FBM201d) to sensor; verify TA jumpers for mA/voltage before power-up.

Overlooking HART Configuration & Loop PowerRookies enable HART on non-HART loops or miss loop power jumpers. Smart transmitters fail to communicate; no digital diagnostics.

• Field Rule: Set TA jumpers for loop power (24VDC) only for 2-wire transmitters; disable HART on analog-only loops.
