FANUC A13B-0202-B002 | Series 15i CNC Control – Field Service Notes

  • Model: FANUC A13B-0202-B002
  • Alt. P/N: A13B-0202-B001 (variant)
  • Product Series: FANUC Series 15i CNC Control System
  • Hardware Type: Main CPU Control Board
  • Key Feature: High-performance CNC control with PMC integration
  • Primary Field Use: Provides main CNC control functions, motion planning, and programmable machine control for CNC machine tools.
Get a Quote
In Stock
Manufacturer:
Part number: Fanuc A13B-0202-B002
Our extensive catalogue, including : Fanuc A13B-0202-B002  , is available now for dispatch to the worldwide. Brand:

Description

Hard-Numbers: Technical Specifications

  • Series: Series 15i CNC Control
  • Processor Type: RISC CPU (32-bit/64-bit architecture)
  • Control Axes: Up to 8 axes
  • Spindle Control: Up to 4 spindles
  • Memory Capacity: 512KB SRAM (expandable to 2MB)
  • PMC (Programmable Machine Control): PMC-L integrated
  • I/O Points: Up to 1024 inputs / 1024 outputs
  • Communication Ports: RS-232C, Ethernet (optional)
  • Operating Temperature: 0°C to +55°C
  • Storage Temperature: -20°C to +60°C
  • Relative Humidity: 10% to 90% non-condensing
  • Certifications: CE, UL, CSA, RoHS

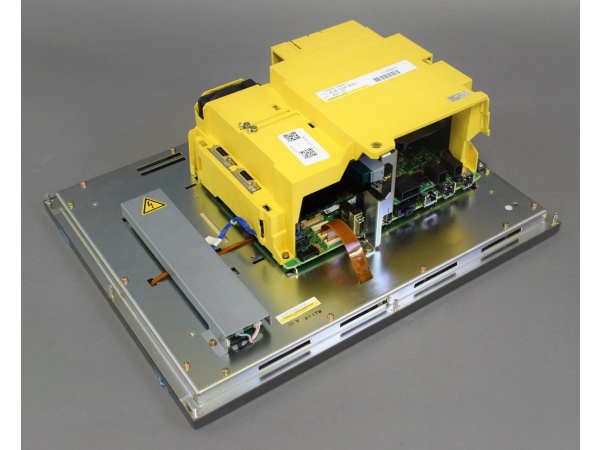

Fanuc A13B-0202-B002

Fanuc A13B-0202-B002

The Real-World Problem It Solves

CNC machines need reliable, high-performance control to handle complex machining operations and multi-axis coordination. Old control boards lack processing power and integration, causing cycle time issues and compatibility problems with modern interfaces. The A13B-0202-B002 delivers powerful CNC processing with integrated PMC, enabling multi-axis interpolation, high-speed data processing, and flexible machine control for demanding applications.
Where you’ll typically find it:
  • Multi-axis CNC machining centers
  • CNC turning centers with complex tooling
  • High-speed milling machines
  • Large CNC gantry routers
Bottom line: It provides powerful CNC control with integrated machine control for complex applications.

Hardware Architecture & Under-the-Hood Logic

This main CPU board is the brain of the Series 15i CNC control system. It houses the main RISC processor, PMC-L CPU, and memory subsystem for program storage and execution. The board communicates with servo amplifiers, I/O modules, and peripheral devices through high-speed internal buses and external interfaces.
  1. The RISC CPU executes CNC motion planning, interpolation calculations, and coordinate transformations for up to 8 axes.
  2. The PMC-L CPU executes ladder logic for machine control, managing I/O points, tool changers, and auxiliary functions.
  3. System SRAM stores CNC programs, parameters, and user data for quick access during operation.
  4. The control board communicates with servo amplifiers via high-speed serial buses (FSSB – FANUC Serial Servo Bus).
  5. External I/O modules connect through the I/O bus, providing digital and analog I/O for machine sensors and actuators.
  6. RS-232C and optional Ethernet interfaces provide external communication for DNC, data transfer, and network connectivity.
  7. Watchdog timers monitor system health, triggering safe shutdowns or error displays if faults are detected.
Fanuc A13B-0202-B002

Fanuc A13B-0202-B002

Field Service Pitfalls: What Rookies Get Wrong

Forgetting to Back Up SRAM Data Before ReplacementTechnicians replace the CPU board without backing up CNC parameters, programs, and PMC ladder. After replacement, the machine won’t run, and critical data is lost permanently, costing days of downtime.
  • Field Rule: Always perform a full SRAM backup using FANUC’s PCMCIA card or DNC software before touching the CPU board. Verify backup integrity and store copies in multiple locations.
Incorrect PMC Parameter SettingsNew engineers restore CNC parameters but forget PMC-specific parameters related to I/O timing, tool changer logic, and machine interlocks. The machine runs but experiences unexplained faults or crashes during operation.
  • Quick Fix: Back up both CNC and PMC parameters separately before replacement. After installation, restore PMC parameters using the PMC-LADDER-III software, not just the CNC parameter screens.
Loose Board Connections Causing Intermittent FaultsRookies don’t reseat connectors properly after replacing the CPU board. Vibration causes intermittent contact issues, leading to random alarms, communication errors, or unexpected shutdowns.
  • Field Rule: After installing the CPU board, reconnect all cables and firmly seat each connector. Apply gentle pressure to ensure full insertion. Lock connectors with retaining clips or screws where provided.
Overlooking Battery Backup for SRAMTechnicians forget to install or check the CMOS battery after replacement. The battery dies within hours, causing loss of SRAM data including parameters and programs when power is cycled.
  • Field Rule: Install a fresh lithium battery (typically CR2032) during CPU board replacement. Verify battery voltage is 3V or higher. Set calendar date and time after initial power-on.
