Emerson SLS1508 | DeltaV SIS Smart Logic Solver SIL 3

• Description

Key Technical Specifications

• Part Number: (KJ2201X1-BA1)
• Power Supply: 24VDC ±5%, 1A logic; 4A field power
• I/O Configuration: 16 configurable channels (16DI/8DO base; supports AI/HART)
• Safety Rating: SIL 3 (IEC 61508); ATEX/IECEx Zone 2, T4; FM Class I Div 2
• Communication: SISnet (dual redundant bus); Modbus RTU; HART
• Processor: 32-bit RISC, deterministic scan <1ms
• Temperature Range: -40°C to +70°C (operating)
• Dimensions: 83.8 × 105.5 × 110 mm
• Weight: 1.2 kg
• Mounting: 8-wide carrier (odd slots 1/3/5/7)
• Redundancy: Dual-module parallel operation, bumpless fault tolerance

Product Introduction

The Emerson is the core SIL 3-certified smart logic solver for DeltaV SIS, built for emergency shutdowns, fire/gas safety, and critical interlocks in oil/gas, chemical, and power plants. It delivers deterministic, fault-tolerant logic execution with comprehensive self-diagnostics.

This unit integrates natively with DeltaV via SISnet redundancy bus, supporting 16 flexible I/O channels (DI/DO/AI/HART). Its compact, hazardous-area rated design ensures reliable operation in extreme industrial environments, reducing unplanned downtime.

QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify Emerson hologram, serial number, and COC. Check casing, connectors, and carrier clips for damage.
2. Live Testing: Power with 24VDC; connect to DeltaV SIS. Run 24-hour burn-in with full I/O simulation; validate SISnet comms and fault diagnostics.
3. Electrical Testing: Measure 24VDC tolerance; verify channel isolation >10MΩ; confirm ground continuity.
4. Firmware/Config Backup: Record firmware revision; backup safety logic and I/O config; photograph DIP switches.
5. Final QC & Packaging: Label with test data; seal in anti-static bag; attach signed QC tag and static warning label.

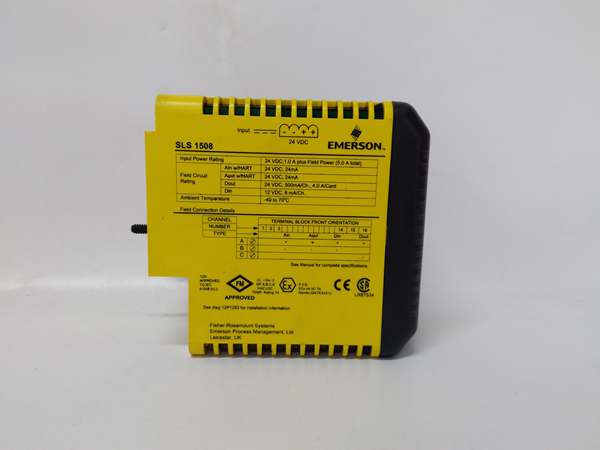

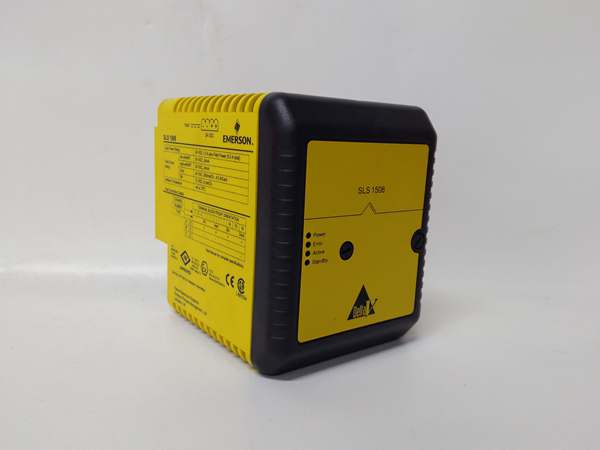

Emerson SLS1508

Installation Pitfalls & Guide (Engineer to Engineer)

• ❗ Non-Isolated 24VDC Supply: Use only isolated 24VDC (separate from DeltaV controller power). Shared ground causes noise-induced logic faults.
• ❗ SISnet Cable Mismatch: SISnet requires dedicated twisted-pair; Ethernet cables cause communication loss and redundant pair failure.
• ❗ ESD Damage: Always ground chassis and use anti-static gloves. Unprotected handling can destroy the $3,000 unit.
• ❗ Logic Program Mismatch: Upload exact program from old unit. Mismatched logic triggers spurious trips or interlock bypass.
• ❗ Slot Misplacement: Install only in odd-numbered slots (1/3/5/7) on 8-wide carrier. Even slots cause backplane conflict.

Replacement Guide

1. Pre-install: Power off SIS node; LOTO; photograph wiring/DIP switches; backup logic.
2. Removal: Disconnect SISnet/field cables; release carrier latch; pull module straight out.
3. Install: Seat firmly in odd slot; reconnect cables per photos; set DIP switches to match original.
4. Power-on Test: Restore power; download verified logic; perform full I/O loop test; validate redundancy switchover.

FAQ (Frequently Asked Questions)

Q: Is hot-swappable?A: No. Hot-swapping risks SISnet voltage spikes and backplane damage. Always power down the SIS node.

Q: What’s the difference between and standard PLCs?A: It’s SIL 3-certified with 100% self-diagnostics and redundant parallel execution; standard PLCs lack safety integrity for ESD.

Q: Can it operate standalone without DeltaV?A: Limited standalone via Modbus RTU. Full safety logic, diagnostics, and redundancy require DeltaV SIS.

Q: What’s the warranty coverage?A: 12 months from delivery. Covers manufacturing defects; excludes ESD damage, over-voltage, or misconfiguration.

Q: How often to perform proof tests?A: Annual proof test per IEC 61508. Validate logic, I/O, and redundancy; no calibration required.

Q: Does it support HART pass-through?A: Yes, on analog input channels. Enables HART diagnostics and parameter access from DeltaV.

Q: What happens if one redundant fails?A: The paired unit continues operation bumplessly; diagnostics alert to the fault for scheduled replacement.
