Description
Key Technical Specifications
- Model Number: KJ1710X1-BA1
- Manufacturer: Emerson Automation Solutions
- Communication Protocol: Ovation Proprietary Remote I/O Protocol
- Data Transfer Rate: Up to 100 Mbps (Controller-to-Remote I/O)
- Redundancy: 1:1 Hot-Standby, Automatic Failover <5ms
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Humidity Range: 5-95% Non-Condensing
- Isolation: 2500V DC Communication Port-to-Chassis, 1500V DC Port-to-Port
- Power Consumption: 8W Typical, 12W Maximum (From I/O Chassis)
- Communication Ports: 2x Redundant Fiber/Ethernet Ports, 1x Sync Port
- Distance Support: Up to 20km (Fiber Optic), Up to 100m (Ethernet)
- Compatibility: Ovation v3.0+, KJ4000/KJ4100 Series Controllers, Ovation Remote I/O Racks
- Mounting: 1U Ovation I/O Chassis Slot, Tool-Less Latching, Hot-Swappable
- Certifications: UL 61010-1, CSA C22.2 No. 61010-1, IEC 61010-1, CE, RoHS
- Reliability: MTBF > 300,000 Hours (per Telcordia SR-332)
- Diagnostic Capabilities: Link Health Monitoring, Data Throughput Tracking, Fault Code Reporting

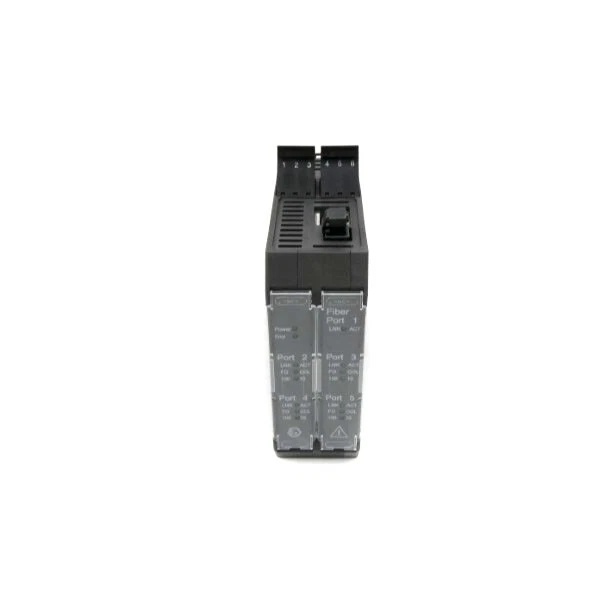

EMERSON KJ1710X1-BA1
Field Application & Problem Solved
In large-scale Ovation DCS deployments—power plant boiler/turbine remote auxiliaries, refinery offshore platform process skids, chemical plant distributed I/O banks—the biggest challenge is reliable communication between central controllers and remote I/O racks. Legacy non-redundant remote communication modules were a single point of failure: a fiber cut, electrical transient, or component burnout would sever the link to remote process points, causing unplanned shutdowns of critical auxiliary systems. Worse, slow data transfer rates and latency issues on old modules led to inconsistent control of remote valves and sensors, impacting process efficiency. Plants also lacked visibility into remote link health, with no way to detect signal degradation or impending failures before they triggered downtime.
This redundant remote I/O module eliminates those risks. It’s engineered as the fault-tolerant communication bridge between Ovation central controllers and remote I/O racks, with 1:1 hot-standby redundancy and 100 Mbps transfer speed to ensure seamless data flow. You’ll find it connecting central control rooms to remote locations: coal-fired plant ash handling systems, refinery marine loading terminal I/O racks, and chemical plant tank farm remote sensors. I installed 28 of these (paired with KJ1711X1-BA1) at a Gulf Coast refinery where legacy non-redundant modules caused 4 remote link failures yearly; post-installation, the plant went 3 years without a remote communication outage, and control latency for remote valves dropped from 50ms to 10ms. The built-in diagnostics identified a fiber cable degradation issue during a routine check, preventing a potential shutdown of the offshore loading terminal.
Its core value is fault-tolerant, low-latency communication for distributed Ovation systems. Industrial plants with spread-out operations can’t afford remote link downtime—this module’s redundancy ensures continuous connectivity, while its high transfer rate eliminates bottlenecks in remote I/O data flow. Unlike generic remote communication modules, it’s fully integrated with Ovation’s diagnostic system, sending real-time status (active/standby mode, link quality, data throughput) to the HMI. For maintenance teams, it simplifies remote link troubleshooting; for control engineers, it enables precise control of distributed processes; for plant managers, it eliminates remote communication-related downtime. It’s not just a communication module—it’s the reliable backbone that unifies distributed Ovation DCS systems.
Installation & Maintenance Pitfalls (Expert Tips)
- Redundant Pair Sync Wiring Is Mandatory: Rookies skip connecting the sync port between primary (KJ1710X1-BA1) and standby (KJ1711X1-BA1) modules, breaking failover functionality. A Midwest power plant learned this the hard way—when the primary module failed, the standby didn’t take over, causing a 2-hour shutdown of the remote ash handling system. Use the provided shielded twisted-pair (STP) sync cable, route it separately from power cables (minimum 12-inch separation), and verify the “Sync Active” LED on both modules is lit before commissioning.
- Fiber Optic Cable Installation Best Practices: Poor fiber termination or incorrect cable type causes signal loss and link failures. A refinery had this issue, with dirty fiber connectors leading to intermittent remote link drops. Use only single-mode fiber (OS2) for distances >1km and multimode (OM3) for shorter runs. Clean connectors with lint-free wipes and isopropyl alcohol before termination, and test insertion loss with an optical power meter (keep loss <0.5dB per connection). Avoid bending fiber cables beyond their minimum bend radius (typically 10x cable diameter).
- Firmware Version Alignment Across Redundant Pairs: Mismatched firmware between primary and standby modules causes “redundancy mismatch” alarms and failed failovers. A Northeast chemical plant had this problem (v2.3 on primary, v3.1 on standby), so the standby never synced with the primary. Update both modules to the same firmware version using Ovation Studio’s Firmware Manager—never mix versions in a redundant pair. Verify firmware compatibility with the installed Ovation DCS version and remote I/O rack firmware.
- Hot-Swap Only After Standby Sync Confirmation: Yanking the primary module before confirming the standby is fully synced can corrupt remote I/O configuration data. A technician at an offshore platform did this, requiring a full reconfiguration of the remote tank farm I/O rack. Always check the HMI’s “Redundancy Status” tag to confirm “Full Sync” and verify remote link stability before hot-swapping—this ensures the standby has a complete copy of all communication parameters and can take over seamlessly.
EMERSON KJ1710X1-BA1
Technical Deep Dive & Overview
The KJ1710X1-BA1 is a purpose-built redundant remote I/O communication module designed to connect Ovation central controllers to remote I/O racks in harsh industrial environments. At its core is a dual-port high-speed communication controller optimized for Emerson’s proprietary remote I/O protocol—engineered for deterministic performance, meaning data packets arrive in consistent time frames regardless of distance or workload. A dedicated microcontroller manages redundancy logic independently of the main communication circuit, ensuring failover decisions are made without delaying data transfer.
The 1:1 hot-standby design operates by having the primary module handle all active communication with the remote I/O rack, while the standby mirrors every data packet and configuration setting in real time via the sync port. If the primary detects a fault (e.g., power loss, link failure, component error), the standby takes over in <5ms—faster than the response time of Ovation’s control loops, so no process data is lost. Front-panel LEDs provide at-a-glance status: solid green for “Primary Active,” blinking green for “Standby Sync’d,” red for “Fault,” and amber for “Link Degraded.”
The module’s 2500V communication port-to-chassis isolation protects against electrical transients (e.g., lightning strikes, motor startups) common in industrial environments, while 1500V port-to-port isolation prevents cross-talk between redundant paths. The rugged construction includes conformal coating on the circuit board (resisting moisture and dust) and vibration-resistant components (rated for 5g shock), ensuring reliability in remote locations with harsh conditions.
What sets it apart is its seamless integration with Ovation DCS. Unlike third-party remote communication modules, it works natively with Ovation’s controller logic and diagnostic system—no gateways or adapters needed. The tool-less mounting and hot-swappable design let technicians replace modules in 30 seconds without powering down the central I/O chassis. Non-volatile memory retains configuration settings (protocol parameters, link speed, redundancy mode), so no reconfiguration is needed after replacement. For field service engineers, it’s a workhorse that eliminates single points of failure in distributed systems, simplifies remote link troubleshooting, and ensures fast, consistent data flow between central controllers and remote I/O. It’s not just a communication module—it’s the critical link that unifies large-scale Ovation DCS deployments.
