Description
Quick Sizing & Sourcing Snapshot
- Manufacturer: Emerson (艾默生)
- Part Number: A6220 (9199-00009)
- System Platform: Emerson CSI 6500 / AMS 6500 Mechanical Health Monitoring System
- Hardware Type: Dual-Channel Shaft Eccentricity Monitor (双通道轴偏心/弯曲度监测器)
- Architectural Role: Acts as a critical mechanical protection module for rotating machinery, acquiring shaft bow/bend data and driving alarm/trip relays to prevent catastrophic rotor-to-stator rubs during startup.
- Key Specifications: Dual-Channel, 3U Size, 1-Slot Hot-Swappable Module, Compliant with API 670 Standard.

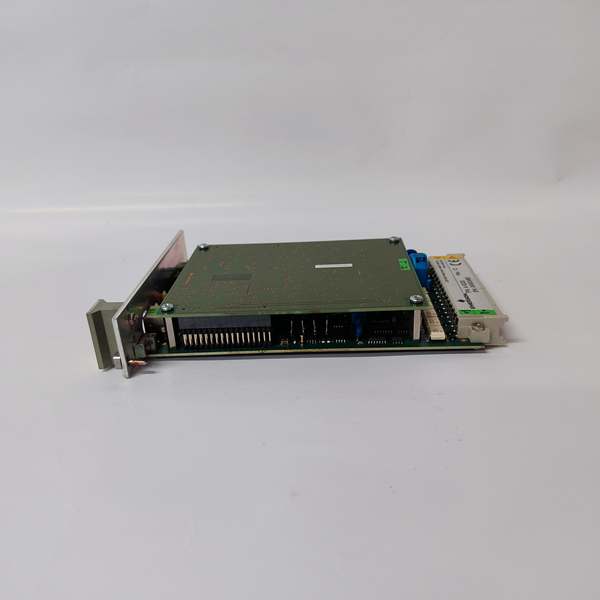

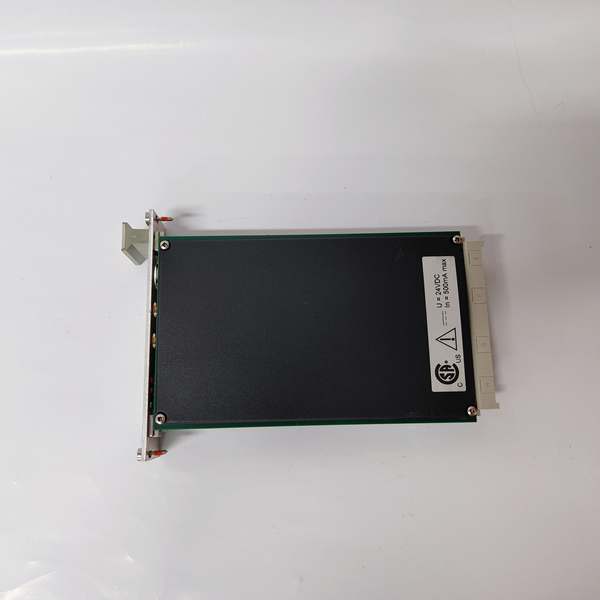

Emerson A6220
System Architecture & Operational Principle
The Emerson operates as a foundational mechanical protection component within the CSI 6500 and AMS Suite ecosystem. Sitting at the core of plant reliability, it translates physical shaft bending into precise electrical signals for machinery health evaluation.
Upstream, the module accepts inputs from non-contact eddy current displacement sensors (such as the PR6422, PR6423, PR6424, and PR6425 series) or LVDT sensors. Downstream, it processes these signals into standard analog outputs (0/4-20 mA, 0-10 V) and buffered outputs for seamless integration with DCS/PLC systems like DeltaV™ or Ovation®.
A major architectural advantage of the is its intelligent protection logic tailored for turbine startups. It continuously compares real-time shaft eccentricity parameters against user-defined setpoints. If a turbine rotor has cooled unevenly and developed a “bow,” starting the machine at high speeds can cause severe rubbing. The reliably drives alarms and trip relays to protect the mechanical asset before such damage occurs. Furthermore, when integrated with PlantWeb® and AMS Suite, it provides advanced predictive diagnostics, allowing maintenance personnel to confidently identify machine faults early.
Core Technical Specifications
- Module Type: Dual-Channel Shaft Eccentricity Monitor
- Manufacturer: Emerson
- Part Number:
- Physical Form Factor: 3U size, 1-slot plug-in module (Reduces cabinet space by 50% compared to traditional 4-channel 6U cards)
- Sensor Compatibility: Eddy current displacement sensors (PR6422, PR6423, PR6424, PR6425), CON xxx drivers, and LVDT sensors
- Input Characteristics: Differential input, >100 kΩ input resistance, 0 to -22 VDC input voltage range
- Outputs: Front/Rear buffered outputs, 0/4-20 mA, 0-10 V
- Compliance: API 670 compliant, hot-swappable module with password-protected user configuration (4-level access)
- Self-Diagnostics: Built-in monitoring of hardware, power input, internal temperatures, sensor health, and cable integrity
Customer Value & Operational Benefits
API 670 Compliant Mechanical Protection
Critical rotating equipment demands uncompromising safety standards. The strictly adheres to the API 670 standard for mechanical vibration monitoring. Its reliable comparison logic and relay actuation guarantee that machines are safely tripped before severe shaft bowing can cause catastrophic rotor-to-stator contact during startup.
Space-Efficient Modular Architecture
Control cabinet real estate is highly valuable. The ’s compact 3U, single-slot design cuts required rack space in half compared to legacy 6U cards. Its hot-swappable capability allows technicians to replace degraded modules without shutting down the entire monitoring system, maximizing plant uptime.
Advanced Predictive Diagnostics Integration
Beyond basic protection, the serves as an advanced diagnostic tool. When paired with AMS Suite configuration software, it enables engineers to view real-time waveforms, trend data, and startup/shutdown eccentricity plots. This empowers maintenance teams to transition from reactive repairs to proactive predictive maintenance, accurately judging machine faults in their early stages.
Field Engineer’s Notes (From the Trenches)
When you are working with the Emerson in a CSI 6500 chassis, pay extreme attention to your sensor type selection during configuration. The module supports both eddy current and LVDT sensors; ensure your configuration software correctly reflects the installed sensor type to avoid scaling errors. Always utilize the AMS 6500 configuration software’s real-time data verification feature before putting a new card into service—it allows you to validate gap voltages, waveform data, and overall displacement levels right at the rack. Finally, remember that this module supports remote limit multiplication and trip bypass; ensure these parameters are properly password-protected using the 4-level user login system to prevent accidental bypasses during critical operations.

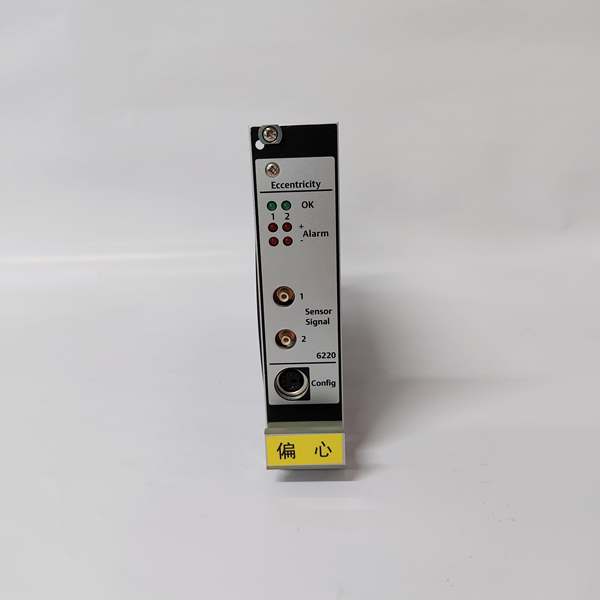

Emerson A6220
Real-World Applications
- Power Generation: Deployed extensively in steam turbines, gas turbines, and water turbines within power plants. The monitors shaft eccentricity to detect thermal bowing or uneven cooling during shutdown periods, ensuring safe clearances and preventing destructive vibrations during hot restarts.
- Oil & Gas Processing: Utilized on compressors, centrifugal pumps, and blowers in refineries and petrochemical facilities. Its dual-channel design allows simultaneous monitoring of multiple bearing housings, providing comprehensive protection against catastrophic rotor failures in explosive environments.
High-Frequency Troubleshooting FAQ
This module acts as a dual-channel mechanical protection monitor. It acquires shaft eccentricity (bow/bend) data from bearing-mounted eddy current or LVDT sensors, converts the analog signals to standard outputs for control systems, and drives protective relays when eccentricity exceeds safe operating limits.
How do I troubleshoot sensor or signal faults on this module?
First, use the AMS 6500 configuration software to check the real-time gap voltage and raw waveform data to verify sensor health. Second, take advantage of the module’s comprehensive self-test facilities, which actively monitor hardware health, power input, internal temperatures, and cable connections. If readings are erratic, verify that the configured operational mode matches the physical sensor placement.
Can this module be replaced while the system is powered on?
Yes. The is designed as a hot-swappable module that complies with API 670 standards. Individual monitors can be extracted and replaced without disrupting the rest of the CSI 6500 chassis or requiring a system shutdown, significantly reducing Mean Time To Repair (MTTR).
Commercial Availability & Pricing
Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
