Description
Product Core Brief
- Model: 1C31219G01
- Brand: EMERSON (Westinghouse)
- Series: Ovation DCS Platform
- Core Function: Converts digital logic signals into relay outputs for controlling field devices.
- Product Type: Relay Output (DO) Module
- Key Specs: 16 Channels | 24V DC | Backplane Mount
(Condition: New Original / New Surplus)

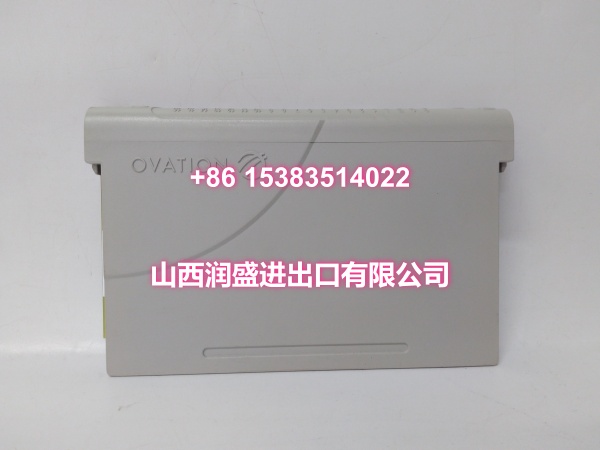

EMERSON 1C31219G01
Product Introduction
EMERSON 1C31219G01 acts as a critical digital output interface for Ovation DCS systems. This relay output module switches external circuits to control valves, motors, and heaters based on system logic.
The EMERSON 1C31219G01 guarantees reliable switching across decades of continuous service. It provides complete electrical isolation between the DCS backplane and field wiring. This industrial automation unit prevents ground loops and protects sensitive logic.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | EMERSON / Westinghouse |
| Part Number | 1C31219G01 |
| Alternate ID | 1C31222G01 / DOX Module |
| Component Type | Relay Output Module |
| System Compatibility | Ovation DCS Platform |
| Channel Count | 16 Independent Relay Outputs |
| Operating Voltage | 24V DC |
| Output Type | Form C (SPDT) Relay Contacts |
| Design Life | > 25 Years |
| Mounting Style | Modular Backplane Insert |
Quality Control Process
Every EMERSON 1C31219G01 undergoes rigorous relay validation. Technicians inspect the backplane connector pins for oxidation or bending. We then perform a functional coil test on a live Ovation simulator. A multimeter verifies that each relay clicks and closes at the correct 24V threshold. We also check contact resistance to ensure clean switching under load. Finally, the board is sealed in anti-static shielding to prevent ESD damage during transit.
Replacement Pitfall Guide
❗ Verify Relay Coil Voltage. This module is designed for 24V DC coil actuation. Applying higher voltage directly to the coil inputs will instantly burn out the driver transistors. Always confirm your backplane supply voltage matches.
❗ Never Hot-Swap the Relay Module. Pulling this board while energized can cause relay contacts to weld or arc. Always isolate power and wait at least 3 minutes for internal capacitors to discharge.
❗ Check Flyback Diode Integrity. The EMERSON 1C31219G01 relies on flyback diodes to suppress inductive kickback from relay coils. If you’re replacing this board due to repeated failures, inspect the mating controller’s relay driver outputs for short circuits.
❗ Inspect External Relay Loads. High inrush currents from external contactors can damage relay contacts over time. Ensure your external loads are within the module’s rated switching capacity. Use interposing relays for heavy loads.
Keep these in mind and you’ll cut 90% of rework time.

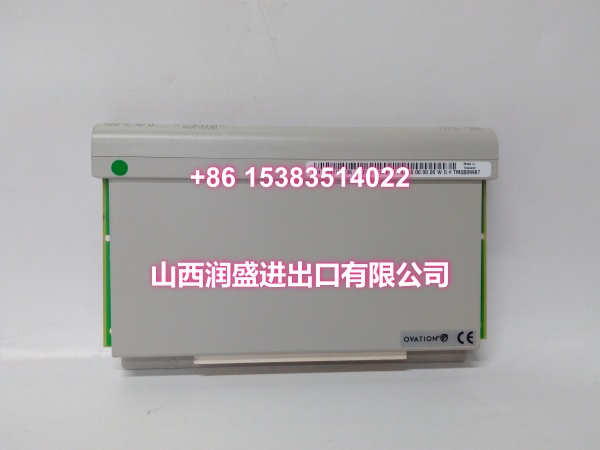

EMERSON 1C31219G01
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level (Direct/Needs Adaptation) | Migration Notes |
|---|---|---|---|
| 1C31219G01 | 1C31222G01 | Direct | Same part, alternate DOX designation |
| 1C31219G01 | EMERSON DOX Module | Direct | Functionally identical, updated branding |
| 1C31219G01 | 1C31219G02 | Needs Adaptation | Newer revision; verify firmware compatibility |
- Relay Response Time: < 15ms Coil-to-Contact Actuation
- Reliability: Rated for continuous operation in high-EMI power generation environments
