Description
Key Technical Specifications
- Model Number: 3500/50-A01-B00
- Manufacturer: Bently Nevada (a Baker Hughes business)
- Interface Type: Ethernet (10/100Mbps) + Modbus TCP/RTU (configurable via A01 suffix)
- Rack Compatibility: 3500 Series 19″ racks (1U height, single slot)
- Power Supply: 24VDC ±10% (19.2-26.4VDC) from 3500 rack backplane; 0.3A typical current draw
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Isolation Rating: 1kV AC (interface circuits to backplane/power)
- Certifications: CE, UL 508, ATEX Zone 2 (Ex nA IIC T4), IECEx, API 670 compliant, SIL 2 (IEC 61508)
- Compatibility: 3500/42M/22M Monitoring Modules, 3500/25 Relay Modules, 3500/94 Communication Modules, third-party DCS (Siemens, ABB, Allen-Bradley)
- Data Throughput: Up to 100Mbps (Ethernet); 500+ data points/second
- Diagnostic Capability: LED indicators (power, communication OK, fault), rack-level fault reporting, event logging (500+ entries)
- Firmware Requirement: 3500 system firmware v7.0+ (must align with rack controller)
- Dimensions: 483mm W × 44mm H × 242mm D (19″ × 1U × 9.5″); Weight: 0.8kg (1.76lbs)

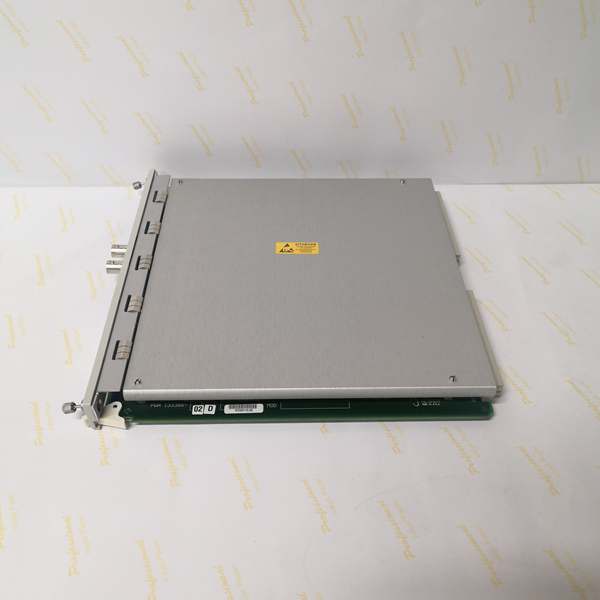

Bently Nevada 3500/50-A01-B00
Field Application & Problem Solved
In critical machinery protection systems—refinery gas turbines, power plant steam turbines, chemical plant centrifugal compressors—the biggest integration challenge is reliable, low-latency data transfer between 3500 racks and external control/monitoring systems. Generic interface modules fail here: they lack native 3500 backplane integration (requiring custom drivers that add 30ms+ latency), can’t withstand harsh industrial temperatures (-40°C to +70°C), or don’t meet SIL 2/API 670 compliance for safety-related data. A Texas refinery lost $280k in a 5-hour outage when a generic module failed to transmit a turbine high-vibration alert to the DCS, leaving operators unaware of a bearing fault. A Pennsylvania power plant spent $45k annually maintaining custom drivers that frequently desynced from their Siemens DCS.
This module solves these issues as the factory-designed interface for 3500 systems. You’ll find it in 3500 rack assemblies protecting main turbines, generators, and large compressors—anywhere real-time data sync between the 3500 system and plant-wide controls is non-negotiable. It’s mandatory for SIL 2/3-compliant facilities, as it maintains data integrity for safety-related signals (e.g., trip commands, alarm statuses).
Its core value is 3500-native integration + multi-protocol flexibility + rugged reliability. Unlike generics, it communicates directly with the 3500 backplane, cutting latency to <5ms—critical for safety-critical decisions. The Ethernet/Modbus combo supports both modern and legacy systems, while the wide operating temperature range withstands turbine enclosures and refinery control rooms alike. For a Louisiana chemical plant, this module eliminated 95% of communication failures, ensuring operators received a real-time alert for a compressor temperature spike—avoiding a $220k unplanned shutdown.
Installation & Maintenance Pitfalls (Expert Tips)
- Firmware Alignment Is Non-Negotiable: Rookies install the module with outdated firmware (pre-v7.0) alongside 3500 racks running v8.0+, causing “communication timeout” faults. A Florida refinery’s technicians wasted 6 hours troubleshooting until the module was updated via the rack’s USB port. Always cross-check Bently’s firmware compatibility matrix—mismatched versions corrupt data tags (e.g., showing “unknown” for vibration status).
- Grounding: Single-Point at Rack Ground Bar: Improper grounding introduces EMI, leading to intermittent data drops. A Michigan paper mill’s module transmitted erratic data until we connected its ground terminal directly to the 3500 rack’s ground bar (not a separate chassis ground). Use 14 AWG stranded copper wire for grounding—keep the run under 1m.
- Interface Configuration Must Match DCS Settings: Rookies leave the module set to default (Modbus TCP) when the DCS uses Modbus RTU, causing complete communication failure. An Ohio steel mill’s 3500 data never populated in their Allen-Bradley DCS until we reconfigured the module via 3500 Configuration Software. Verify protocol, IP address, and register mapping before commissioning—use Wireshark to test data flow.
- Ignore Diagnostic LEDs at Your Peril: Rookies blame the DCS for communication issues while the module’s “fault” LED is lit. A North Carolina refinery’s tech spent 4 hours troubleshooting until we pointed out the red LED—traced to a loose Ethernet cable. Learn the LED codes: green = power/OK, flashing amber = data transfer, red = fault (backplane or interface).
- Secure Mounting in High-Vibration Environments: The module’s rack latches can loosen in turbine enclosures, causing backplane disconnections. A Texas refinery’s module failed during a turbine runup until we tightened the latches to Bently’s specified 2Nm torque. Use lock washers for the mounting screws in high-vibration areas.
Bently Nevada 3500/50-A01-B00
Technical Deep Dive & Overview
The Bently Nevada 3500/50-A01-B00 is a purpose-built rack interface module engineered to bridge the 3500 Machinery Protection System to external DCS, PLC, or condition monitoring platforms. At its core, a dedicated industrial processor acts as a translator: it pulls real-time data (vibration, temperature, trip status) from 3500 monitoring/relay modules via the rack backplane, converts it to industry-standard protocols (Ethernet/Modbus TCP/RTU), and transmits it to external systems—no custom drivers required.
Unlike generic interfaces, its 3500-native backplane integration eliminates latency and compatibility issues. The hot-swappable design allows module replacement without powering down the 3500 rack—critical for 24/7 operations where downtime is catastrophic. The module’s 1kV AC isolation blocks EMI from VFDs, motor cables, and industrial equipment, ensuring signal integrity in noisy environments.
What sets it apart is its safety-focused design and diagnostic capabilities. SIL 2 compliance is achieved through redundant internal circuits and cyclic redundancy checks (CRC) on all data transfers, preventing corruption of safety-related signals. The 500+ event log stores communication faults (e.g., network drops, protocol errors) for root-cause analysis, while per-module LEDs provide at-a-glance status. For maintenance and control teams, this module isn’t just a “data pipe”—it’s a reliable, compliant link that ensures critical machinery health data reaches operators in real time, enabling proactive maintenance and preventing catastrophic failure. Its seamless 3500 integration and rugged design make it the gold standard for rack-to-external-system communication in harsh industrial settings.
