Description
Product Core Brief
- Model: 133396-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Processes signals from eddy current or magnetic sensors to provide highly reliable, redundant speed measurement for overspeed protection systems.
- Product Type: Overspeed Detection I/O Module
- Key Specs: 3500/53 Compatible | API 670/612 Compliant | 2oo3 Voting Logic
- Note: Requires a 3500 rack with redundant power supplies for full API compliance.

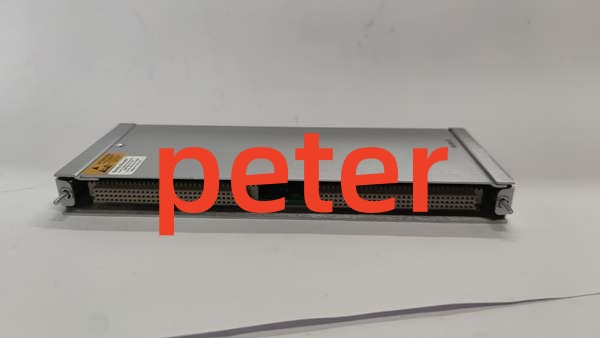

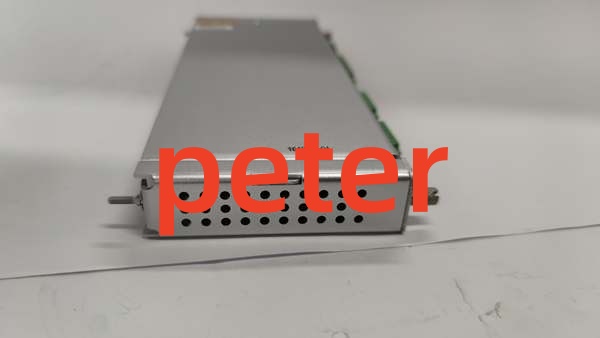

Bently Nevada 133396-01
Key Technical Specifications
- Compatible Monitor: 3500/53 Overspeed Detection Module
- Sensor Input: Eddy Current or Magnetic Pickup
- Input Signal Range: +10.0 VDC to -24.0 VDC
- Sensor Power Output: -24 VDC, 40 mA
- Typical Power Consumption: 8.0 Watts
- Recorder Output: +4 to +20 mA (proportional to RPM)
- Voting Logic: Supports 2-out-of-2 or 2-out-of-3 (Recommended)
- Operating Temp: -30 °C to +65 °C (-22 °F to +150 °F)
- Humidity: 5% to 95% non-condensing
- Environmental Seal: Epoxy-sealed for harsh environments
- Weight: 0.45 kg (1.0 lb)
Product Introduction
The Bently Nevada 133396-01 is a dedicated Overspeed Detection I/O module for the 3500/53 monitor. It provides a fast-response, redundant tachometer input specifically engineered to meet the stringent requirements of API Standards 670 and 612 for mechanical overspeed protection.
This module enables the creation of 2-out-of-3 (2oo3) voting systems when combined with other units, maximizing protection reliability while minimizing nuisance trips. Its epoxy-sealed construction and wide input tolerance ensure dependable operation in critical turbine and compressor applications where failure is not an option.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify serial number traceability against OEM records; inspect epoxy seal for cracks or moisture ingress; confirm anti-static packaging integrity.
- Live Testing: Install in 3500/53 test rack; verify OK LED and backplane communication; inject simulated tachometer signals at multiple frequencies to validate speed calculation and voting logic.
- Electrical Testing: Measure insulation resistance (>10 MΩ at 500VDC); verify ground continuity <0.1 Ω; test sensor power output under load to confirm -24 VDC @ 40 mA.
- Firmware/Config Backup: Record exact firmware revision via 3500 Configuration Software; photograph all DIP switches and jumper settings before packing.
- Final QC & Packaging: Apply QC pass tag with test date; pack in OEM-spec anti-static bag with foam corner protectors; seal in individual box with documentation.

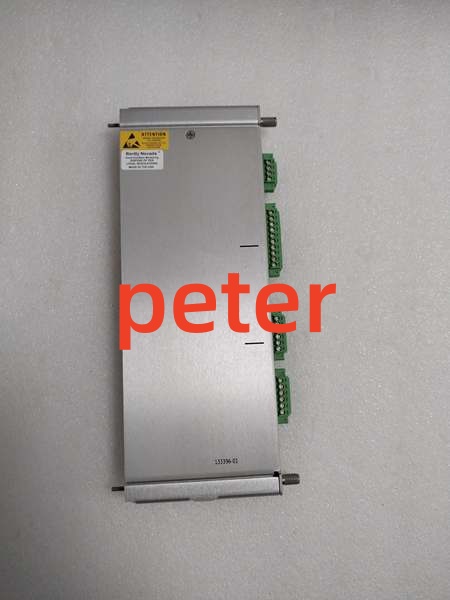

Bently Nevada 133396-01
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Mixing revisions in a 3500/53 slot can cause voting logic failures or communication errors. Always match the exact revision of the replaced unit or update the entire frame via 3500 Configuration Software before commissioning.
❗ DIP Switch/Jumper Errors: Voting logic and sensor type configuration are critical. Take a high-res photo of the old module’s jumper settings before removal. Incorrect sensor type selection (eddy current vs. magnetic) will cause complete signal loss or erratic speed readings.
❗ Wiring Incompatibilities: Input signal conditioning differs from standard 3500/50 speed modules. Do not assume wire-for-wire compatibility. Verify terminal block labeling against the 3500/53 manual; incorrect wiring can damage the input stage.
❗ Power Draw Changes: This module draws 8.0W, higher than many standard I/O cards. Calculate total backplane load including all 3500/53 modules; exceeding power supply capacity causes intermittent resets during overspeed events when all relays may energize simultaneously.
❗ ESD Dangers: The overspeed input stage is extremely ESD-sensitive. A single static discharge can destroy the $3,000+ signal conditioning circuitry. Always wear a grounded wrist strap connected to the rack chassis, not just the bench mat.
Replacement Procedure:
- Pre-install: Back up 3500/53 configuration; photograph jumpers; verify new unit revision and voting logic settings match.
- Removal: Power down frame (3500/53 is NOT hot-swappable); wait 60s for capacitor discharge; remove module.
- Install: Set jumpers per photo; seat module firmly; torque terminal screws to 0.5 Nm.
- Power-on Test: Apply power; verify OK LED; check 3500 Configuration Software for no faults; simulate overspeed condition to validate voting logic and relay trip.
FAQ (Frequently Asked Questions)
Q: Can I hot-swap the Bently Nevada 133396-01?
A: No. The 3500/53 overspeed module lacks hot-swap circuitry. Removing it under power will cause a backplane voltage disturbance, potentially corrupting the configuration of adjacent monitoring modules and risking arc damage to the backplane connector. Always perform a controlled frame shutdown.
Q: Why is my new module showing a “Sensor Fail” alarm?
A: Check the sensor type configuration first. If the module is set for eddy current but you’re using a magnetic pickup (or vice versa), the signal conditioning will be wrong. Also verify the sensor power output is present at the terminal (-24 VDC); a failed internal power supply will trigger this alarm immediately.
Q: Is this module interchangeable with the 3500/50 speed module?
A: Absolutely not. The 3500/50 is a general-purpose speed monitor. The Bently Nevada 133396-01 is specifically engineered for overspeed protection with enhanced signal processing, voting logic, and API 670 compliance. Forcing a 3500/50 into a 3500/53 slot will not provide certified overspeed protection.
Q: What happens if I lose power to this module during an overspeed event?
A: You lose overspeed protection. The 3500/53 requires continuous power to process tachometer signals and drive protection relays. There is no battery backup for overspeed detection. Always ensure redundant power supply configuration per API 670; this is non-negotiable for certified protection.
Q: How do I verify if this is a genuine Bently Nevada 133396-01?
A: Check for the Bently Nevada logo etched (not printed) on the PCB; verify the serial number matches the label; inspect the epoxy seal for factory consistency (re-applied epoxy indicates refurbishment or counterfeit). Request the OEM certificate of conformity from the supplier; reputable vendors provide traceability to the original Bently Nevada shipment.
Q: Can I use this module for non-overspeed speed monitoring?
A: Technically yes, but it’s overkill and misapplied. The 133396-01 is optimized for overspeed protection with specific filtering and response times. For general speed monitoring, use a 3500/50 module. Using an overspeed module for non-critical applications wastes budget and may cause confusion during audits.
Q: What’s the warranty on replacement units?
A: Standard warranty is 12 months from shipment date, covering manufacturing defects and DOA conditions. Warranty does not cover ESD damage, overvoltage from incorrect wiring, or physical damage from improper installation. Always retain the QC test report and original packaging for warranty claims.
Need the 2oo3 voting logic configuration matrix? That’s where most field engineers get tripped up during commissioning—misconfigured voting defeats the entire purpose of redundancy.
