Product Core Brief
- Model: 125840-01
- Brand: Bently Nevada
- Series: 3500 Machinery Protection System
- Core Function: Converts high-voltage AC input to regulated 24 VDC for the 3500/15 Transient Data Interface module.
- Product Type: High Voltage AC Power Input Module
- Key Specs: 100-240 VAC / 200-480 VAC Input | 24 VDC Output | 3500/15 Compatible
- Note: Verify input voltage range and revision suffix against existing rack configuration before ordering.

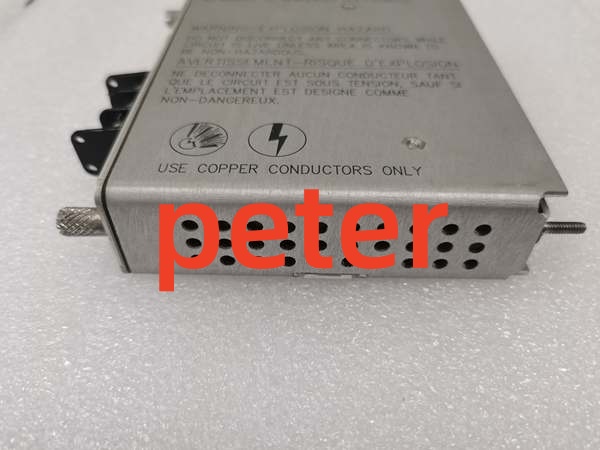

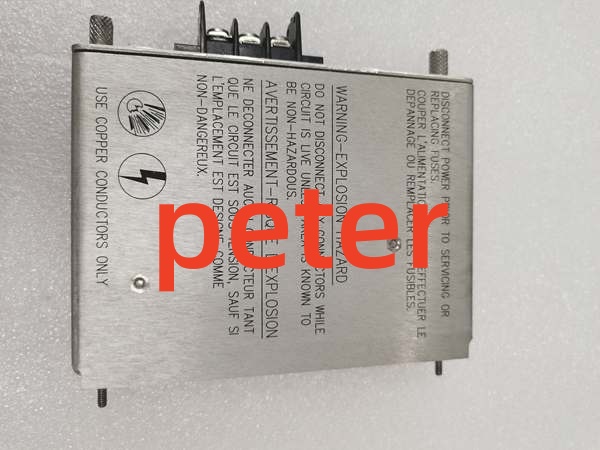

Bently Nevada 125840-01
Key Technical Specifications
- Input Voltage: 100-240 VAC or 200-480 VAC (Universal)
- Input Frequency: 50/60 Hz
- Output Voltage: 24 VDC
- Compatible Frame: 3500/15 Transient Data Interface
- Operating Temp: -20 °C to +65 °C
- Storage Temp: -40 °C to +85 °C
- Humidity: 95% non-condensing
- Protection: Over-voltage, Over-current, Short-circuit
- Mounting: 3500 Rack Backplane
- Weight: ~2 kg
Product Introduction
The Bently Nevada 125840-01 is a high-voltage AC power input module designed specifically for the 3500/15 Transient Data Interface. It accepts a wide range of AC line voltages and converts them to the stable 24 VDC required by the 3500 backplane.
This unit provides critical galvanic isolation and comprehensive protection against over-voltage, over-current, and short circuits. Its universal input capability simplifies global deployments while ensuring reliable power delivery for transient waveform capture during critical machinery events.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Verify serial number traceability against OEM records; inspect PCB for rework, corrosion, or lifted traces; confirm anti-static packaging integrity.
- Live Testing: Power-on in test rack with variable AC source; verify 3500/15 handshake and “OK” LED status; run 24-hour burn-in under full load to check for thermal drift.
- Electrical Testing: Measure insulation resistance (>10 MΩ at 500VDC); verify ground continuity <0.1 Ω; test protection trip points for over-voltage and over-current.
- Firmware/Config Backup: Record exact firmware revision via 3500 Configuration Software; photograph all DIP switches and jumpers before packing.
- Final QC & Packaging: Apply QC pass tag with test date; pack in OEM-spec anti-static bag with foam corner protectors; seal in individual box with documentation.
Bently Nevada 125840-01
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Mixing revisions in a 3500/15 slot can cause communication timeouts or erratic transient triggering. Always match the exact revision of the replaced unit or update the entire frame via 3500 Configuration Software before commissioning.
❗ DIP Switch/Jumper Errors: Input voltage selection is critical. Take a high-res photo of the old module’s jumper settings before removal. Installing with jumpers set for 110VAC on a 480VAC system will destroy the input stage instantly.
❗ Wiring Incompatibilities: Pinouts differ between high-voltage and standard 3500 power supplies. Do not assume wire-for-wire compatibility. Verify terminal block labeling against the 3500/15 manual, not the 3500/05 manual.
❗ Power Draw Changes: This module has different inrush characteristics than older 3500 power supplies. Calculate total backplane load including all 3500/15 modules; exceeding 80% of power supply rating causes intermittent resets during motor starts.
❗ ESD Dangers: The transient capture front-end is extremely ESD-sensitive. A single static discharge can destroy the $2,000+ input stage. Always wear a grounded wrist strap connected to the rack chassis, not just the bench mat.
Replacement Procedure:
- Pre-install: Back up 3500/15 configuration; photograph jumpers; verify new unit revision and voltage setting matches.
- Removal: Power down frame (3500/15 is NOT hot-swappable); wait 60s for capacitor discharge; remove module.
- Install: Set jumpers per photo; seat module firmly; torque terminal screws to 0.5 Nm.
- Power-on Test: Apply AC; verify “OK” LED; check 3500 Configuration Software for no faults; run self-test.
FAQ (Frequently Asked Questions)
Q: Can I hot-swap the Bently Nevada 125840-01?
A: No. The 3500/15 power module lacks hot-swap circuitry. Removing it under power will cause a backplane voltage collapse, potentially corrupting the configuration of adjacent monitoring modules and risking arc damage to the backplane connector. Always perform a controlled frame shutdown.
Q: Why is my new module showing a “Power Fail” alarm?
A: Check the input voltage selector jumpers first. If the unit is set to 110VAC but you’re feeding 220VAC, the internal protection circuit trips immediately. Also verify the AC source is within ±10% tolerance; brownout conditions during motor starts can trigger false alarms if the module’s hold-up time is marginal.
Q: Is this module interchangeable with the 3500/05 power supply?
A: Absolutely not. The 3500/05 is a general-purpose rack power supply. The Bently Nevada 125840-01 is specifically engineered for the 3500/15 Transient Data Interface with different voltage regulation and filtering characteristics. Forcing a 3500/05 into a 3500/15 slot will not work and may damage both.
Q: What happens if I lose power to this module during a transient event?
A: You lose the event. The 3500/15 requires continuous power to capture and buffer waveform data. There is no battery backup for transient capture. If power loss is a known risk, install a UPS on the AC input side or add a redundant power supply configuration per API 670 recommendations.
Q: How do I verify if this is a genuine Bently Nevada 125840-01?
A: Check for the Bently Nevada logo etched (not printed) on the PCB; verify the serial number matches the label; inspect solder joints for machine-wave consistency (hand-soldered joints indicate refurbishment or counterfeit). Request the OEM certificate of conformity from the supplier; reputable vendors provide traceability to the original Bently Nevada shipment.
Q: Can I use this module in a 3500/42 or 3500/45 slot?
A: No. The 125840-01 is mechanically and electrically keyed for the 3500/15 slot only. Other 3500 monitor modules use different power supply modules (e.g., 3500/05, 3500/15 Power Supply for other modules). Forcing it into the wrong slot can short backplane pins.
