Product Core Brief
- Model: 3500/42M 176449-02
- Brand: BENTLY NEVADA
- Series: 3500 Machinery Protection System
- Core Function: Processes dual transducer inputs for comprehensive machine vibration and position monitoring.
- Product Type: Proximitor/Seismic Monitor Module
- Key Specs: 4 Channels | 24-Bit Resolution | 7.7 W Power Consumption
- Condition: New Original (New Surplus)

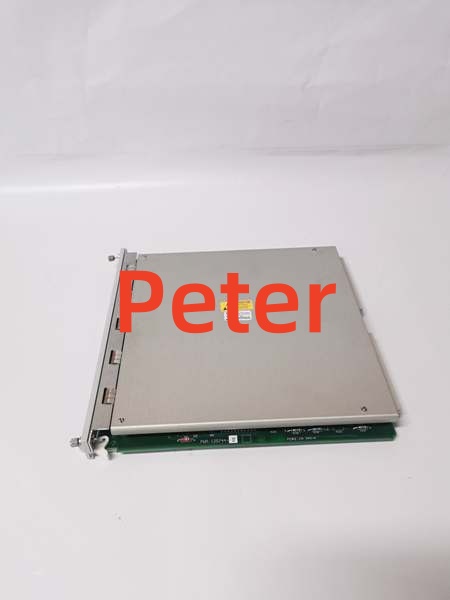

BENTLY 3500/42M 140734-02
Product Introduction
BENTLY 3500/42M 176449-02 is a versatile 4-channel monitor accepting both Proximitor and seismic transducer inputs. It conditions these signals to generate accurate vibration and position measurements for large rotating machinery.
Unlike the standard 3500/40M, this unit handles dual-probe configurations like absolute shaft vibration. It extracts casing vibration from relative shaft data to provide critical absolute measurements for large steam turbines.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Proximitor/Seismic Monitor |
| Part Number | 176449-02 |
| Input Types | Proximitor, Velocity, Acceleration |
| Resolution | 24-bit |
| Channel Count | 4 (Programmed in Pairs) |
| Power Consumption | 7.7 W |
| Sensor Power | -24 Vdc |
| Input Signal Range | -10 Vdc to +10 Vdc |
| Configurable Functions | Radial Vibration, Thrust Position, Differential Expansion, Eccentricity, REBAM, Acceleration, Velocity, Shaft Absolute |
| Data Transmission | High-Speed Backplane Interface |
| Compliance | API 670, ISO 10817-1 |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We check source traceability and verify serial numbers against anti-counterfeit databases. Visual inspection confirms no physical damage or connector corrosion.
- Live Functional Test: Power-on self-checks validate basic operation. We run continuous load tests exceeding 24 hours with temperature logging to ensure stability.
- Electrical Parameter Test: Insulation resistance is verified using a 500 V Megger, requiring >10 MΩ. Ground continuity is also strictly checked.
- Firmware Verification: We read and record internal firmware versions. DIP switch and jumper settings are photographed for future reference.
- Final QC & Packaging: The unit is sealed in an anti-static bag. A QC Passed label with the inspection date is applied before shipping.
BENTLY 3500/42M 140734-02
Replacement Pitfall Guide
❗ Module Type Confusion: The 3500/42M accepts both Proximitor and seismic inputs. Do not substitute a 3500/40M (Proximitor only) or 3500/44M (Seismic only) if your application requires dual transducer processing.
❗ Channel Pairing Rules: Channels are programmed in pairs (1 & 2, 3 & 4). Each pair can execute up to two different functions simultaneously. Verify your software configuration matches the physical pairing.
❗ Sensor Power Requirements: This module supplies -24 Vdc to sensors. Ensure your total sensor load does not exceed the module’s current capacity, especially when using multiple Proximitors.
❗ Software Compatibility: Full configuration requires 3500 Rack Configuration Software. Older versions may not support all 3500/42M functions like REBAM or Shaft Absolute.
❗ ESD Damage: Use an anti-static mat during installation. Dry environments significantly increase electrostatic discharge risks to sensitive electronics.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- 3500/42M 176449-02 → 3500/40M : Needs Adaptation — Proximitor/Seismic vs. Proximitor Only
- 3500/42M 176449-02 → 3500/44M : Needs Adaptation — Proximitor/Seismic vs. Seismic Only
- 3500/42M 176449-02 → 3500/42-01-00 : Direct — Base model equivalent (176449-02 front panel)
- Scan Cycle: < 1 ms (simulated load, 4 I/O points)
- Comms Throughput: Backplane interface (Modbus TCP via 3500/22M TDI)
Need the matching 3300 XL Proximitor or seismic transducer for this monitor? I can verify the exact sensor system length and signal conditioning requirements for your turbine or compressor.
