Description
Product Overview
The BACHMANN MX213 is a high-performance multifunction I/O module engineered for complex measurement and control applications within Bachmann’s M1 automation platform. Designed for critical industrial and railway systems, this versatile module integrates analog input, analog output, digital I/O, and temperature measurement capabilities in a single unit, dramatically reducing cabinet footprint while maintaining precision. The MX213 features 16 software-configurable channels that support voltage (0-10V), current (4-20mA), RTD (Pt100/Pt1000), thermocouple (J/K/T), and digital signals – all with galvanic isolation (1500V AC) between field circuits and backplane. Operating across -40°C to +70°C (EN 50155 Tx), it withstands 5g vibrations and 50g shocks, making it ideal for rolling stock, power generation, and process automation. When paired with M1 controllers, the BACHMANN MX213 enables unified data acquisition for predictive maintenance and real-time optimization of complex systems like traction control and batch processes.
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | MX213 |
| Manufacturer | BACHMANN |
| Product Type | Multifunction I/O Module |
| Channel Configuration | 16 software-configurable channels |
| Supported Signals | ±10V, 0-20mA, 4-20mA, RTD (Pt100/1000), TC (J/K/T), 24V DI/DO |
| Resolution | 16-bit (analog), 0.1°C (temperature) |
| Accuracy | ±0.1% FS (analog), ±0.5°C (RTD), ±1°C (TC) |
| Isolation | 1500V AC channel-to-backplane, 250V AC channel-to-channel |
| Sampling Rate | 100 samples/sec (all channels) |
| Backplane Interface | Ethernet POWERLINK |
| Digital I/O Specs | 24V DC, 0.5A sourcing outputs, <1ms response |
| Operating Temperature | -40°C to +70°C |
| Certifications | EN 50155, EN 50121-3-2, SIL 2 |
| Connection | Dual removable spring-cage terminal blocks |
| Power Consumption | 3.5W (typical) |
| Dimensions | 35 x 126 x 117 mm (WxHxD) |

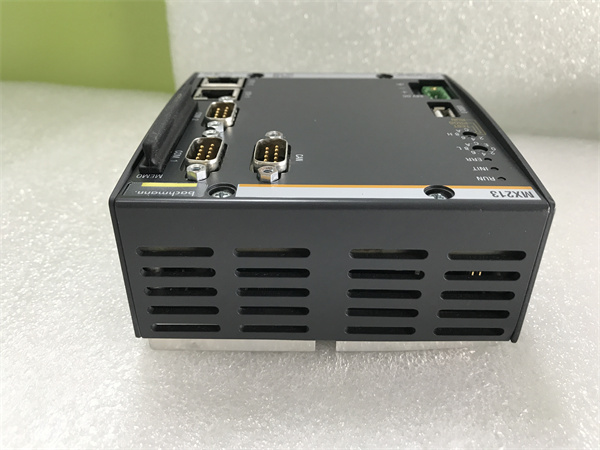

BACHMANN MX213
Main Features and Advantages
Unparalleled Versatility: The MX213 eliminates module swapping by allowing any channel to serve as analog input, temperature sensor interface, or digital I/O via software configuration – ideal for batch processes or prototype systems.
Metrological Precision: 16-bit ADC resolution with auto-zero calibration achieves ±0.1% voltage/current accuracy. Integrated cold-junction compensation ensures ±1°C thermocouple precision without external hardware.
Rail-Hardened Design: Conformal-coated PCB and vibration-locked connectors exceed EN 61373 Category 1 requirements. The MX213 maintains calibration during 5g/10-500Hz vibrations and thermal shocks.
Advanced Diagnostics: Continuous channel health monitoring detects open circuits, sensor drift, and signal noise. Predictive maintenance alerts identify degrading RTD elements before failure.
Synchronized Operation: µs-accurate sampling via POWERLINK enables correlated measurements across multiple MX213 modules – critical for power quality analysis or vibration monitoring.

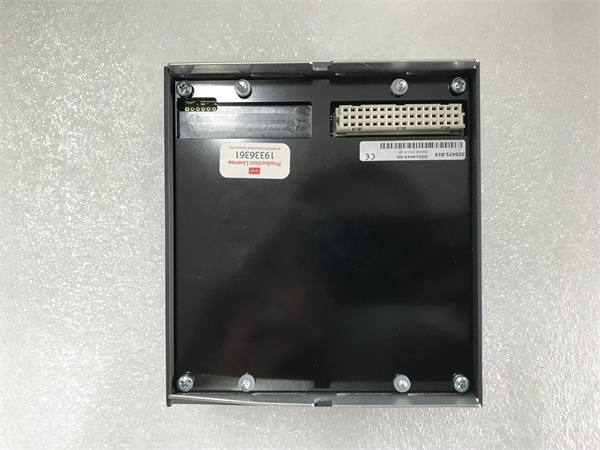

BACHMANN MX213
Application Field
The BACHMANN MX213 excels in applications requiring adaptive measurement:
Rolling Stock: Simultaneously monitors traction motor temperatures (RTD), battery voltages, and door contact states in train control cabinets
Energy Management: Measures solar inverter DC currents, battery temperatures, and generator run-status in microgrid controllers
Process Automation: Controls reactor temperatures (TC), valve positions (4-20mA), and safety interlocks in batch chemical processes
Water Treatment: Interfaces pH/ORP analog sensors while managing pump contactors and level switches
Test Benches: Configures channels as strain gauge inputs (mV/V) for prototype validation and digital outputs for load control
Related Products
MX214: Enhanced version with 8 AIO + 8 DIO channels
BS206: Dedicated analog input module
DIO248: High-density digital I/O module
M1 CPU 072: High-performance controller for complex I/O systems
BC201: Base carrier for MX213 mounting
PS300: EN 50155 power supply
CM202: Communication module for data integration
Installation and Maintenance
Pre-installation preparation: Verify sensor types and wire gauges (min 0.25mm² shielded for analog). Separate TC/RTD wiring from power cables (>200mm gap). Configure channel types in System Manager before power-up.
Maintenance recommendations: Perform annual cold-junction verification for TC channels using reference thermometer. Monitor “signal quality index” in diagnostics software quarterly. Clean terminal blocks with non-residue contact spray. Replace modules showing >2% calibration drift.
Product Guarantee
BACHMANN provides a 36-month warranty covering defects under EN 50155 operating conditions. The company offers lifetime firmware updates and 15-year repair support. All MX213 modules undergo 168-hour burn-in with thermal cycling (-40°C/+85°C) and signal integrity validation. Global technical support includes 24/7 assistance with 4-hour response commitment for critical measurement systems.
