Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | YPC104B YT204001-BT |
| Manufacturer | ABB |
| Product Category | Industrial Modem Board |
| Input Voltage | 24V DC |
| Communication Protocol | RS-485, Modbus RTU |
| Operating Frequency | 204001 kHz |
| Data Rate | 104 Kb/s |
| Power Consumption | 0.5 W |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (L x W x H) | 100 mm x 50 mm x 20 mm |
| Weight | 150 g |
| Certifications | CE, RoHS |

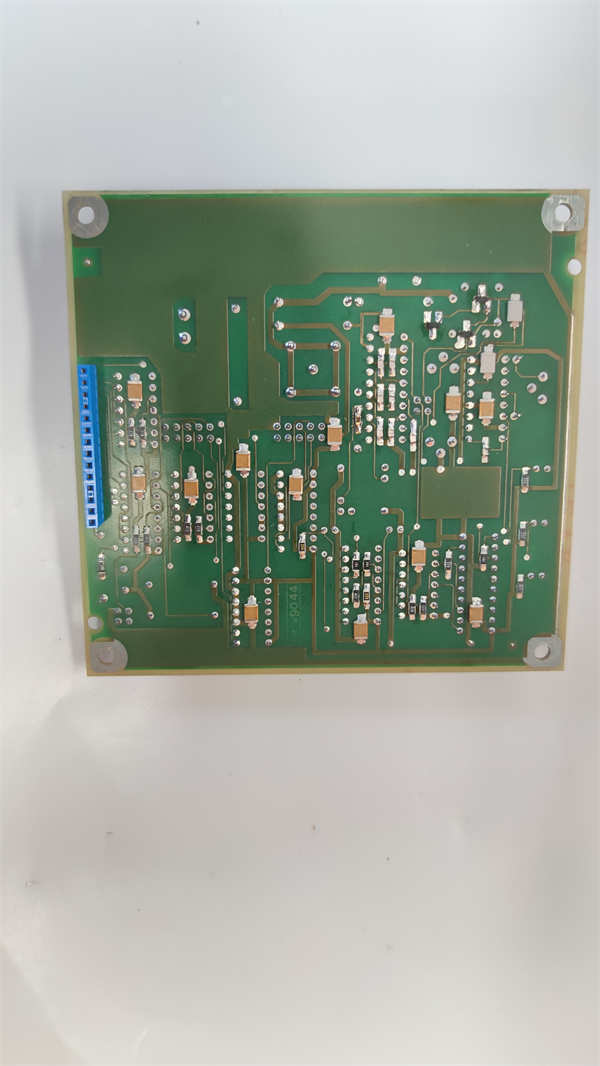

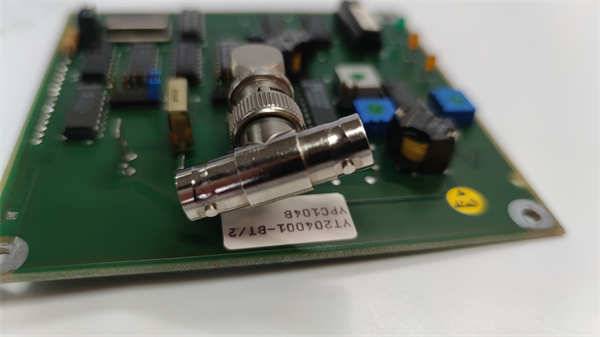

YPC104B YT204001-BT
Product Introduction
The ABB YPC104B YT204001-BT is a high-performance industrial modem board designed for seamless integration into advanced industrial automation systems. It ensures reliable data transmission over twisted pair cables, making it an ideal solution for distributed control systems (DCS) and other industrial applications. The board supports multiple industrial communication protocols, including RS-485 and Modbus RTU, and features a compact design with dimensions of 100 mm x 50 mm x 20 mm. Its low power consumption of 0.5 W and wide operating temperature range of -20°C to +70°C make it suitable for harsh industrial environments.
Core Advantages and Technical Highlights
Robust Communication Capabilities: The YPC104B YT204001-BT supports a wide range of industrial protocols, enhancing compatibility and flexibility across various automation systems. It features a data transfer rate of 104 Kb/s, ensuring efficient data exchange.
Energy Efficiency: With a power consumption of only 0.5 W, the modem board is highly energy-efficient, reducing operational costs.
Wide Operating Conditions: The board operates reliably within a temperature range of -20°C to +70°C and can be stored between -40°C and +85°C. It also features an IP20 protection rating, ensuring resistance to dust and water ingress.
Compact and Lightweight Design: Measuring 100 mm x 50 mm x 20 mm and weighing only 150 g, the modem board is easy to install and maintain in confined spaces.
High Reliability: The YPC104B YT204001-BT is designed with high-grade materials for durability and long-term reliability, even under extreme conditions.

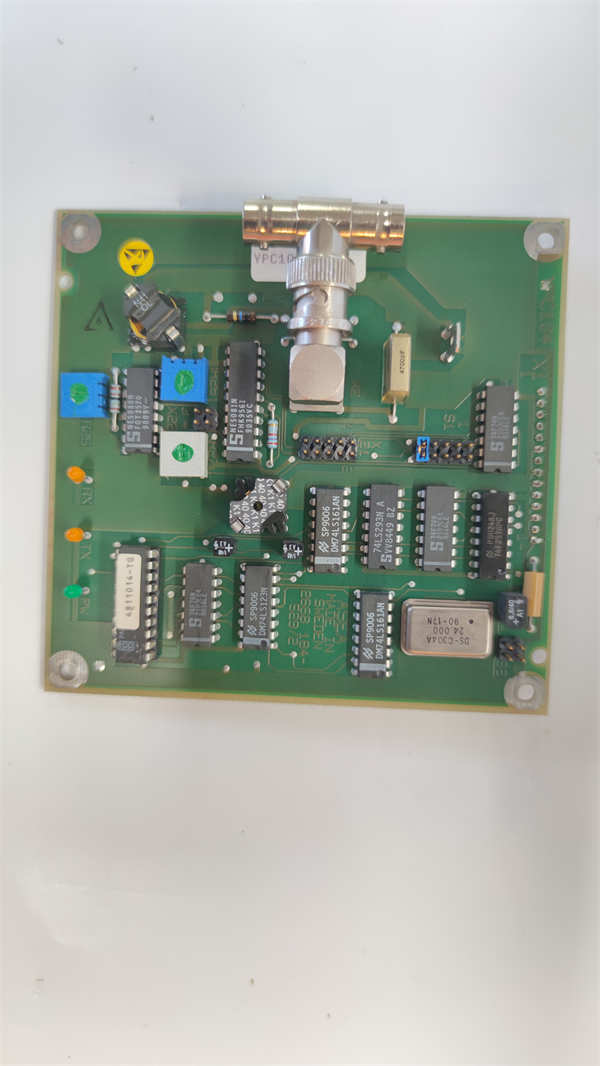

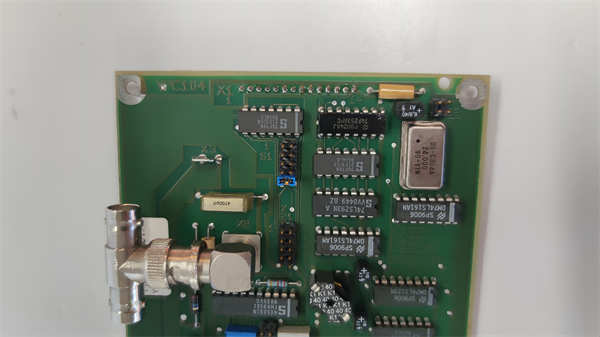

YPC104B YT204001-BT
Typical Application Scenarios
The ABB YPC104B YT204001-BT is widely used in various industrial sectors, including:
-
Power Plants: For remote monitoring and control of critical processes.
-
Chemical and Petrochemical Industries: For reliable data transmission in hazardous environments.
-
Manufacturing Automation: For precise control and synchronization of production lines.
Related Model Recommendations
-
YPK117A 61163280: A high-performance interface module for ABB’s IRC5 robot controller platform.
-
IRC5 Single Cabinet: Suitable for large-scale systems requiring high-density control.
-
IRC5 Compact: Ideal for space-constrained applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the modem board securely on a DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The ABB YPC104B YT204001-BT is backed by ABB’s comprehensive support and quality assurance. The modem board comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
