Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | XVC768AE102 3BHB007211R0102 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Operating Voltage | 220V AC |
| Output Frequency | 30 kHz |
| Communication Protocols | Modbus TCP/IP, Ethernet/IP, Profibus |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 0% to 95% RH non-condensing |
| Dimensions (L x W x H) | 400 mm x 250 mm x 120 mm |
| Weight | 12 kg |
| Certifications | CE, UL, ISO 9001 |

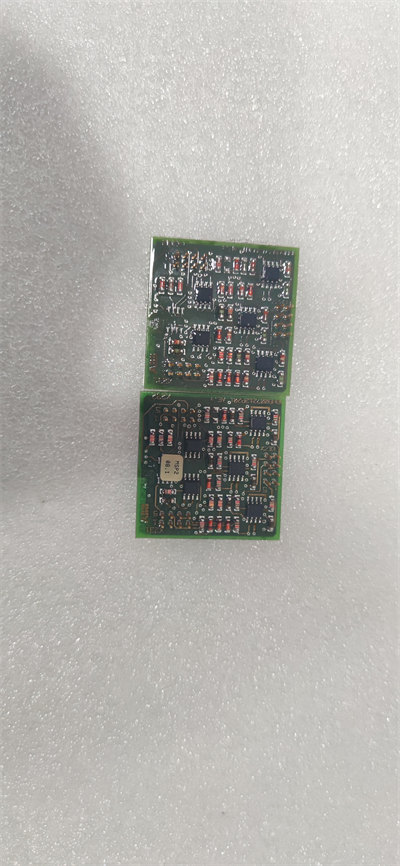

XVC768AE102 3BHB007211R0102
Product Introduction
The ABB XVC768AE102 3BHB007211R0102 is a high-performance industrial control module designed for precise and reliable operation in demanding industrial environments. It offers robust processing capabilities, advanced communication protocols, and extensive compatibility with ABB’s control systems. This module is ideal for applications requiring high precision and reliability, such as process control, machine control, and system monitoring.
Core Advantages and Technical Highlights
High-Performance Processing: Equipped with a powerful processor, the XVC768AE102 ensures rapid data processing and real-time control, providing seamless operation in high-demand environments.
Advanced Communication Protocols: The module supports multiple communication protocols, including Modbus TCP/IP, Ethernet/IP, and Profibus, enabling seamless integration with various control systems.
Robust Design: Built to withstand harsh industrial conditions, the XVC768AE102 features an IP20 protection rating, ensuring resistance to dust and water ingress.
Energy Efficiency: Designed with energy conservation in mind, this module minimizes power consumption while maximizing output.
Scalability: The modular design allows for easy expansion to accommodate future growth, making it a wise investment for companies looking to scale their operations.
User-Friendly Interface: Featuring an intuitive graphical interface, the XVC768AE102 simplifies monitoring and control, allowing users to easily configure settings and visualize system performance.

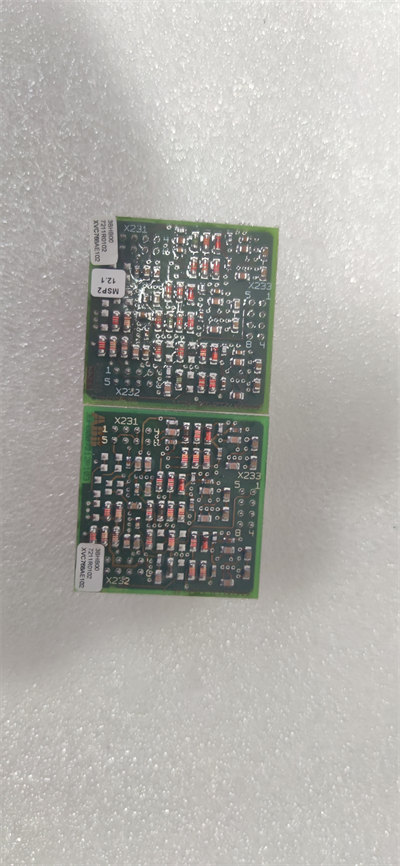

XVC768AE102 3BHB007211R0102
Typical Application Scenarios
The ABB XVC768AE102 3BHB007211R0102 is widely used in various industrial sectors, including:
-
Manufacturing Automation: For precise control and monitoring of automated manufacturing processes.
-
Process Control: In petrochemical plants and food processing facilities, ensuring consistent quality and efficiency.
-
Building Automation: For managing HVAC systems, lighting, and security measures in smart buildings.
-
Energy Management: In renewable energy applications, such as solar or wind farms, aiding in real-time monitoring and control of energy production and distribution.
-
Water Treatment: Ensuring consistent quality and compliance with environmental regulations in municipal and industrial water treatment facilities.
Related Model Recommendations
-
ABB CI855-1: A versatile I/O module designed for various industrial applications.
-
ABB 57160001-KX: A reliable power supply module that enhances system stability.
-
ABB DSQC202: A motion control module ideal for robotics and automation.
-
ABB DSMB-01C: Ideal for data communication in automation systems.
-
ABB REF542PLUS: Best suited for protection in electrical systems.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation location meets the specified temperature and humidity requirements. Mount the module securely on a DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages.
Service and Guarantee Commitment
The ABB XVC768AE102 3BHB007211R0102 is backed by ABB’s comprehensive support and quality assurance. The module comes with a warranty that ensures protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency.
