Description
1. Product Overview
The ABB UUD148AE01 is a rugged industrial controller from ABB’s AC 800M series, designed for mission-critical process automation in harsh industrial environments. This advanced controller delivers deterministic real-time control for complex industrial processes in oil & gas, power generation, and chemical industries.
2. Key Specifications
| Category | Specification |
| Processor | Dual-core 1.2 GHz ARM Cortex-A9 |
| Memory | 1GB DDR3 RAM, 4GB Flash |
| I/O Capacity | Supports up to 1024 I/O points |
| Communication | 2x Ethernet (PROFINET, Modbus TCP), 1x USB, 1x RS-485 |
| Power Supply | 24V DC (18-30V range) |
| Operating Temp | -40°C to +70°C |
| Protection Rating | IP20 (IP65 with enclosure) |
| Safety Certification | SIL 2 (IEC 61508) |
| Dimensions | 110 × 75 × 65 mm |
| Weight | 500g |

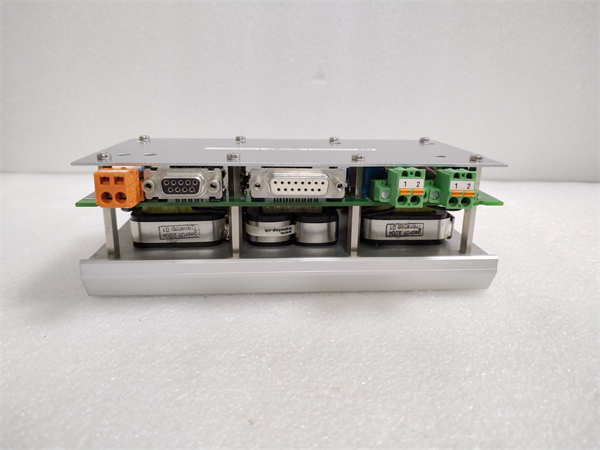

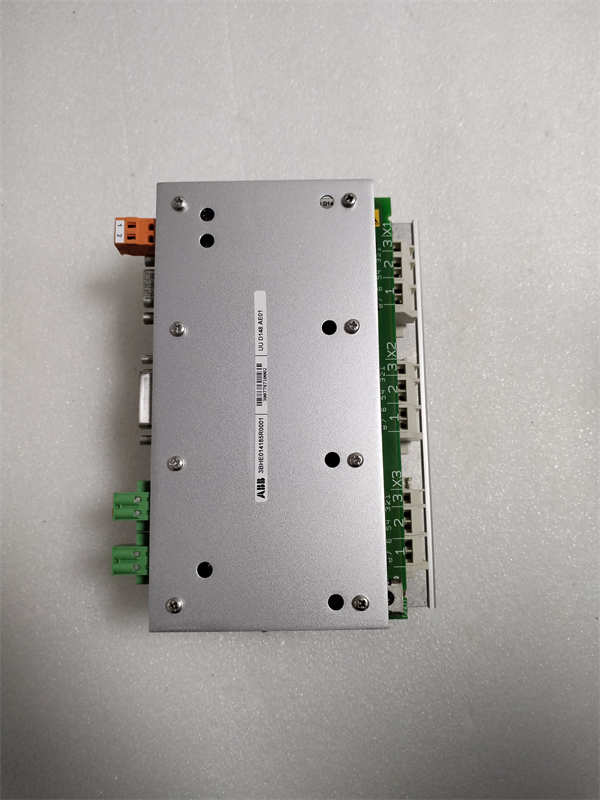

ABB UUD148AE01
3. Technical Highlights
Performance:
✔ 1ms control cycle time for precise process control
✔ Deterministic execution of complex control strategies
✔ Hot-swappable design for minimal downtime
Connectivity:
✔ Dual Ethernet ports with PROFINET and Modbus TCP support
✔ OPC UA for secure vertical integration
✔ USB for local configuration and diagnostics
Robustness:
✔ -40°C to +70°C operating range
✔ Vibration resistant (5g) for heavy industrial environments
✔ ATEX Zone 2 certified version available
Security:
✔ Secure boot with hardware trust anchor
✔ Role-based access control (RBAC)
✔ Encrypted communication (TLS 1.2/1.3)
4. Comparison with UUD148AE02
| Feature | UUD148AE01 | UUD148AE02 |
| Processor | 1.2 GHz Dual-core | 1.5 GHz Dual-core |
| Memory | 1GB RAM, 4GB Flash | 2GB RAM, 8GB Flash |
| I/O Capacity | 1024 points | 2048 points |
| Safety Rating | SIL 2 | SIL 2 |
| Typical Use | Medium complexity processes | High-performance applications |

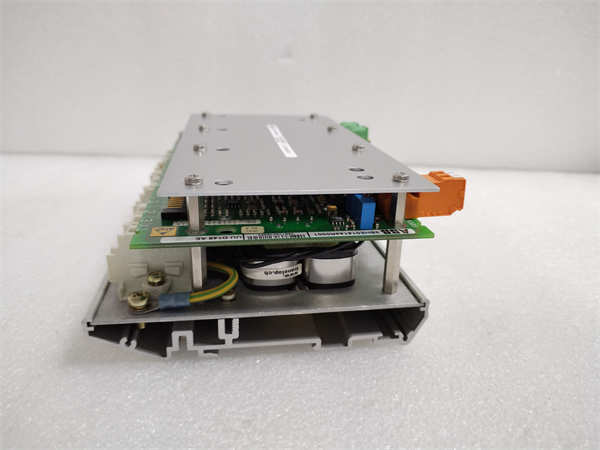

ABB UUD148AE01
5. Typical Applications
Oil & Gas:
Offshore platform control systems
Pipeline compressor automation
Safety instrumented systems (SIS)
Power Generation:
Turbine control systems
Balance-of-plant automation
Renewable energy integration
Chemical Processing:
Batch process control
Reactor temperature management
Hazardous area applications
6. Ordering Information
Base Unit:
UUD148AE01 (standard version)
Accessories:
CAB500 (communication cable kit)
MPR090 (mounting plate)
PWR240 (power supply unit)
Software:
Automation Builder (engineering environment)
Control Software AC 800M
7. Why Choose UUD148AE01?
- Proven reliabilityin extreme environments
• Seamless integration with ABB System 800xA
• Future-ready with OPC UA and cybersecurity features
• Global ABB support with 24/7 technical assistance
For detailed technical documentation or application engineering support, please contact your local ABB representative.
