Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB LWN2660-6 |
| Manufacturer | ABB |
| Product category | Power Management Device |
| Measurement Range | Voltage: 100-240V AC, Current: 0-10A |
| Accuracy | ±0.5% of reading |
| Communication Protocols | Modbus RTU, Profibus DP, HART |
| Output Signal | 4-20mA, Digital Outputs |
| Power Supply | 24V DC |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions | 150 mm x 100 mm x 50 mm |
| Weight | 1.2 kg |
| Protection Rating | IP54 |

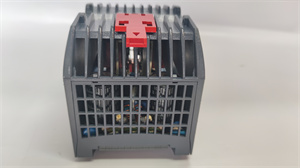

ABB LWN2660-6
Product Introduction
The ABB LWN2660-6 is a high-performance power management device designed to provide precise monitoring and control of electrical systems in various industrial and commercial applications. As part of ABB’s extensive range of power management solutions, the ABB LWN2660-6 offers reliable and accurate measurement of voltage, current, and power consumption. Its robust design and wide operating temperature range make it suitable for deployment in challenging environments. The device supports multiple communication protocols, including Modbus RTU, Profibus DP, and HART, ensuring seamless integration with existing control systems. With its compact form factor and versatile mounting options, the ABB LWN2660-6 is an ideal choice for optimizing energy usage and enhancing system reliability.
Core Advantages and Technical Highlights
High Accuracy and Precision: The ABB LWN2660-6 delivers highly accurate measurements with an accuracy of ±0.5% of reading. This level of precision ensures reliable data for energy management and control systems, enabling optimized performance and reduced operational costs.
Versatile Communication Options: Supporting multiple communication protocols such as Modbus RTU, Profibus DP, and HART, the ABB LWN2660-6 can be easily integrated into a variety of control systems. This flexibility simplifies installation and ensures compatibility with both legacy and modern automation infrastructures.
Robust Industrial Design: The ABB LWN2660-6 features a rugged IP54-rated enclosure, making it resistant to dust and water ingress. Its wide operating temperature range (-20°C to +60°C) ensures reliable performance in harsh industrial environments.
Compact and Space-Efficient: With dimensions of 150 mm x 100 mm x 50 mm, the ABB LWN2660-6 is designed to fit into tight spaces, making it ideal for installations where space is limited. Its lightweight design (1.2 kg) further simplifies handling and installation.
Advanced Diagnostics: The ABB LWN2660-6 includes built-in diagnostic capabilities that provide real-time monitoring of device status and performance. This feature enables quick identification and resolution of issues, minimizing downtime and maintenance costs.

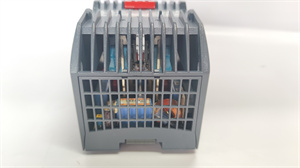

ABB LWN2660-6
Typical Application Scenarios
The ABB LWN2660-6 is widely used across various industries to monitor and manage electrical systems. In industrial plants, it is deployed to monitor power consumption in manufacturing processes, ensuring optimal energy usage and reducing operational costs. In commercial buildings, the device is used to manage power distribution, providing real-time data for energy management systems. In transportation hubs such as airports and railway stations, the ABB LWN2660-6 ensures reliable power monitoring and control, supporting critical infrastructure operations. Its versatility and robust design make it an essential tool for enhancing energy efficiency and system reliability in diverse applications.
Related Model Recommendations
-
ABB LWN2660-7: An upgraded model with enhanced communication capabilities and additional measurement features.
-
ABB LWN2660-5: A predecessor model with similar functionality but fewer communication options.
-
ABB LWN2660-8: A variant with extended temperature range and higher accuracy for extreme environments.
-
ABB LWN2660-9: A model with additional digital inputs and outputs for more complex control applications.
-
ABB LWN2660-10: A high-end model with advanced diagnostic features and support for multiple communication protocols.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB LWN2660-6, ensure the installation environment meets the specified temperature and humidity requirements. Verify that the power supply voltage is within the specified range (24V DC) to avoid damage to the device. The device should be mounted in a location free from obstructions and with adequate ventilation to dissipate heat. Use appropriate tools and follow safety guidelines to ensure a secure installation.
Maintenance Suggestions: Regularly inspect the ABB LWN2660-6 for signs of wear or damage, and ensure all connections are secure. Use the device’s diagnostic features to monitor performance and identify potential issues early. In case of faults, refer to the user manual for troubleshooting guidance and contact ABB support if necessary. Periodically clean the device to remove dust and debris that may affect performance. Replace any damaged components promptly to maintain system reliability.
Service and Guarantee Commitment
ABB provides comprehensive support for the ABB LWN2660-6, including a robust warranty that ensures product quality and reliability. The company offers extensive after-sales services such as technical support, repair services, and spare part supply. ABB’s global network of service centers ensures prompt assistance and expert guidance, demonstrating the company’s commitment to customer satisfaction and product excellence.
