Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSDP170K02 |
| Manufacturer | ABB |
| Product Category | Pulse Encoder Input Module |
| Input Channels | 4 independent channels |
| Maximum Pulse Frequency | 100 kHz per channel |
| Direction Detection | Forward/Reverse |
| Input Voltage Range | 5 to 24 VDC |
| Resolution Options | 1x, 2x, 4x, 8x count resolution |
| Operating Temperature | -40°C to +70°C |
| Dimensions (D x H x W) | 328.5 mm x 18 mm x 238.5 mm |
| Weight | 0.38 kg |
| Compliance | RoHS |
DSDP170K02 3BSE019925R1
Product Introduction

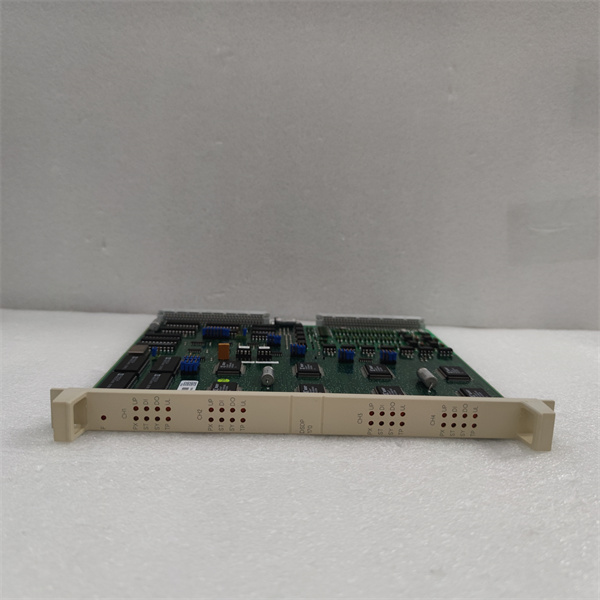

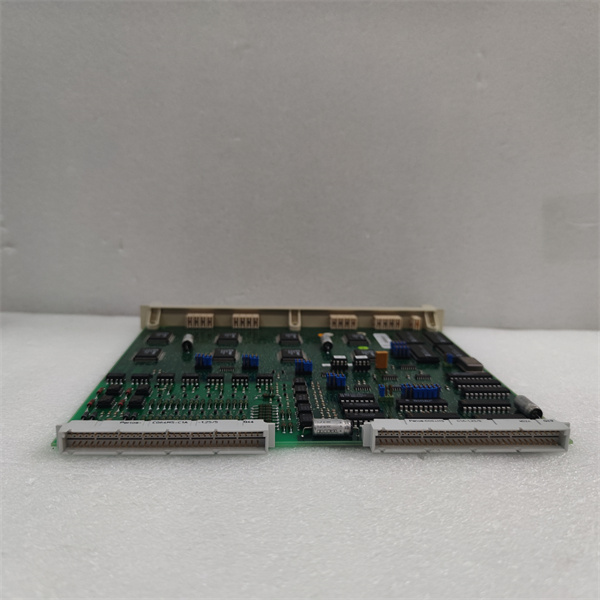

The ABB DSDP170K02 3BSE019925R1 is a high-performance pulse encoder input module designed for precise position and speed measurement applications. As part of ABB’s S100 I/O system, this module provides reliable and accurate data acquisition for industrial automation systems. It is primarily intended for use with ABB’s Advant Controller 400 series programmable logic controllers (PLCs) and is ideal for industries requiring high-precision pulse counting.
This module features four independent high-speed pulse counting channels, each capable of handling up to 100 kHz. It supports direction detection, allowing the system to distinguish between forward and reverse rotation. The wide input voltage range (5 to 24 VDC) and software-selectable resolution options (1x, 2x, 4x, or 8x) provide flexibility for various applications. The DSDP170K02 is designed to operate reliably in harsh industrial environments, with an operating temperature range of -40°C to +70°C.
Core Advantages and Technical Highlights
High-Speed Pulse Counting: The ABB DSDP170K02 can handle pulse frequencies up to 100 kHz per channel, ensuring accurate measurement of rapid movements. This capability is crucial for applications requiring high-speed data acquisition and processing.
Direction Detection: The module can determine the direction of pulse rotation (forward/reverse), providing additional data for precise control and monitoring.
Wide Input Voltage Range: Compatible with 5 to 24 VDC inputs, the DSDP170K02 is versatile and can be used with a variety of sensors and encoders.
Software-Selectable Resolution: Users can choose between 1x, 2x, 4x, or 8x counting resolution, allowing for customization based on specific application requirements.
On-Board Diagnostics and Calibration: The module includes on-board diagnostics and calibration features, ensuring accuracy and reliability over extended periods of use.
Compact and Durable Design: The DSDP170K02 features a compact form factor (328.5 mm x 18 mm x 238.5 mm) and weighs only 0.38 kg, making it easy to integrate into space-constrained environments. Its robust construction ensures long-term reliability and durability in harsh industrial conditions.
DSDP170K02 3BSE019925R1
Typical Application Scenarios
The ABB DSDP170K02 3BSE019925R1 is widely used in various industrial sectors where precise position and speed measurement are critical. In manufacturing, it is used for real-time monitoring of machine performance, detecting anomalies, and optimizing workflow. In power generation, the module helps monitor the speed of rotating equipment, ensuring efficient operation. In process control applications, it tracks the position of linear actuators or valves, maintaining optimal process conditions. The DSDP170K02 is also used in calibration and testing equipment, ensuring the accuracy and reliability of sensors and measuring instruments.
Related Model Recommendations
-
DSDP170K01: A related pulse encoder set kit, ideal for applications requiring a complete pulse counting solution.
-
DSDP170 57160001-ADF: A pulse counting board with similar functionality, suitable for applications requiring a different form factor or additional features.
-
DSDP170K03: An upgraded version with enhanced features and improved performance, offering a future-proof solution for advanced pulse counting needs.
-
DSAI146: A complementary analog input module with high-precision temperature sensing capabilities, suitable for applications requiring detailed temperature data.
-
DSAO120AK01: An analog output module with high precision and reliability, suitable for applications requiring precise analog control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB DSDP170K02 3BSE019925R1, ensure that the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference. Ensure proper grounding and power supply specifications to prevent voltage fluctuations.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The ABB DSDP170K02 3BSE019925R1 is backed by ABB’s comprehensive support and quality assurance. The module comes with a 12-month warranty, covering protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSDP170K02 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
