Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSDP170 57160001-ADF |
| Manufacturer | ABB |
| Product Category | Pulse Counting Board |
| Maximum Pulse Frequency | 2.5 MHz |
| Positioning Accuracy | ±0.05% of measured value |
| Speed Measuring Range | 0 to 5000 RPM |
| Operating Voltage | 220 V |
| Output Frequency | 30 kHz |
| Dimensions (D x H x W) | 328.5 mm x 18 mm x 238.5 mm |
| Weight | 0.38 kg |
| Environmental Compliance | Compliant with EU Directive 2011/65/EU (RoHS) |
| Certifications | CE, UL |

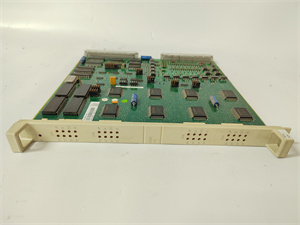

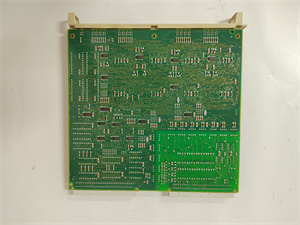

ABB DSDP170 57160001-ADF
Product Introduction
The ABB DSDP170 57160001-ADF is a high-performance pulse counting board designed for precise position and speed measurement applications. As part of ABB’s S100 I/O system, this module provides a reliable and efficient solution for industrial automation tasks. It is primarily intended for positioning/length and speed/frequency measuring, making it suitable for a wide range of industries, including manufacturing, robotics, and process control. The module features a maximum pulse frequency of 2.5 MHz, ensuring fast and accurate data acquisition even under challenging conditions. Its compact design and lightweight nature make it easy to integrate into existing systems without compromising performance. The DSDP170 57160001-ADF is an essential component for applications requiring high precision and reliability in motion control and monitoring.
Core Advantages and Technical Highlights
High-Speed Pulse Counting: The ABB DSDP170 57160001-ADF can handle pulse frequencies up to 2.5 MHz, ensuring accurate measurement of rapid movements. This capability is crucial for applications requiring high-speed data acquisition and processing.
Precision in Measurement: With a positioning accuracy of ±0.05% of the measured value and a speed measuring range of 0 to 5000 RPM, the module provides highly accurate and reliable data. This level of precision is essential for applications such as manufacturing, where even minor deviations can impact product quality.
Compact and Durable Design: The module features a compact form factor (328.5 mm x 18 mm x 238.5 mm) and weighs only 0.38 kg, making it easy to integrate into space-constrained environments. Its robust construction ensures long-term reliability and durability in harsh industrial conditions.
Advanced Diagnostics: The DSDP170 57160001-ADF includes on-board diagnostics and calibration features, ensuring accuracy and reliability over extended periods of use. These features help minimize downtime and maintenance costs.
Wide Input Voltage Range: The module supports a wide input voltage range (5 to 24 VDC), making it compatible with various sensor and encoder types. This flexibility simplifies system design and integration.
Software-Selectable Resolution: Users can choose between 1x, 2x, 4x, or 8x counting resolution, allowing for customization based on specific application requirements.
ABB DSDP170 57160001-ADF
Typical Application Scenarios
The ABB DSDP170 57160001-ADF is widely used in various industrial sectors where precise position and speed measurement are critical. In manufacturing, it is used for real-time monitoring of machine performance, detecting anomalies, and optimizing workflow. In power generation, the module helps monitor the speed of rotating equipment, ensuring efficient operation. In process control applications, it tracks the position of linear actuators or valves, maintaining optimal process conditions. The DSDP170 57160001-ADF is also used in calibration and testing equipment, ensuring the accuracy and reliability of sensors and measuring instruments.
Related Model Recommendations
-
DSDP170K02: A kit version of the DSDP170 that includes additional components for easier installation and setup.
-
DSDP170K01: A related pulse encoder set kit, ideal for applications requiring a complete pulse counting solution.
-
DSAI146: A complementary analog input module with high-precision temperature sensing capabilities, suitable for applications requiring detailed temperature data.
-
DSAO120AK01: An analog output module with high precision and reliability, suitable for applications requiring precise analog control.
-
DSDO115K12: A digital output module with high-density channels, suitable for applications requiring extensive digital control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB DSDP170 57160001-ADF, ensure that the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference. Ensure proper grounding and power supply specifications to prevent voltage fluctuations.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The ABB DSDP170 57160001-ADF is backed by ABB’s comprehensive support and quality assurance. The module comes with a 12-month warranty, covering protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSDP170 57160001-ADF undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
