Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSDO115K12 |
| Manufacturer | ABB |
| Product Category | Digital Output Module |
| Output Channels | 32 channels |
| Output Type | 24V DC transistor outputs (sinking or sourcing) |
| Current Rating | 0.5A per channel (2A max per module) |
| Isolation Voltage | 1500V AC (channel-to-channel and channel-to-backplane) |
| Operating Voltage | 24V DC |
| Response Time | <1ms (switching speed) |
| Operating Temperature | -40°C to +70°C |
| Dimensions (W x H x D) | 105 mm x 90 mm x 35 mm |
| Weight | 0.3 kg |
| Communication Interface | RS-485 Modbus RTU |
| Certifications | CE, UL, IEC 61131-2, Ex (for hazardous area versions) |

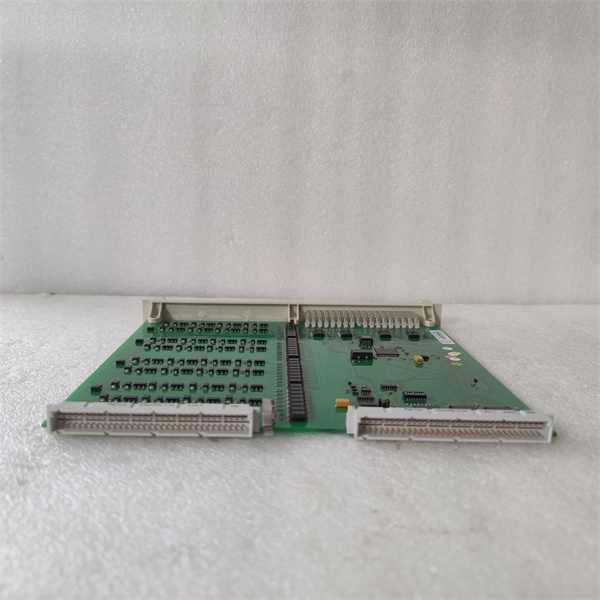

ABB DSDO115K12 3BSE019933R1
Product Introduction
The ABB DSDO115K12 is a high-performance digital output module designed for industrial automation and control systems. As part of ABB’s S800 I/O family, this module provides reliable, high-performance switching capabilities to interface with actuators, relays, valves, and other field devices in demanding industrial environments. With 32 digital output channels, the DSDO115K12 is ideal for applications requiring a large number of digital outputs, such as automation equipment, robots, sensors, and other control systems. Its robust design and wide operating temperature range ensure long-term reliability and stability in harsh industrial conditions.
Core Advantages and Technical Highlights
High-Density Output Channels: The ABB DSDO115K12 offers 32 digital output channels, each capable of providing 24V DC voltage with a maximum current of 150 mA. This high-density design reduces hardware footprint and simplifies control cabinet layouts.
Flexible Load Support: The module supports a wide range of loads, including inductive, capacitive, and resistive devices. Each channel features overload and short-circuit protection to ensure system safety.
Galvanic Isolation: The DSDO115K12 provides channel-to-channel and channel-to-system isolation up to 1500V AC, preventing ground loops and electrical noise from disrupting control systems.
Hot-Swappable Design: The module supports hot-swapping, allowing for replacement without system shutdown. This feature minimizes downtime in continuous industrial processes.
Advanced Diagnostics: Integrated diagnostics monitor channel status, fault conditions (e.g., overload, open circuit), and module health. LED indicators provide real-time troubleshooting capabilities.
Redundancy Support: The DSDO115K12 enables redundant configurations for mission-critical applications, ensuring uninterrupted operation.
Rugged Industrial Design: The module is designed to operate reliably in harsh conditions, with a temperature range of -40°C to +70°C and resistance to vibration, humidity, and electromagnetic interference.

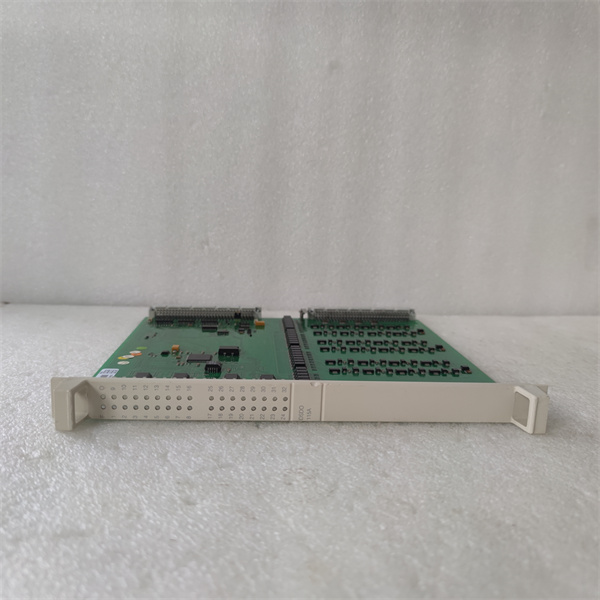

ABB DSDO115K12 3BSE019933R1
Typical Application Scenarios
The ABB DSDO115K12 is widely used in various industrial sectors where precise digital signal control and system reliability are critical. In power generation facilities, it controls circuit breakers, alarms, and status indicators. In chemical plants and refineries, the module manages solenoid valves, motor starters, and pumps. It is also used in manufacturing for assembly line machinery, robotic systems, and conveyor controls. Additionally, the DSDO115K12 is essential in safety systems, triggering emergency shutdowns or safety interlocks in critical operations.
Related Model Recommendations
-
DSDO115A: A similar digital output module with slightly different specifications, suitable for applications requiring fewer channels.
-
DSAI146: A complementary analog input module with high-precision temperature sensing capabilities, ideal for applications requiring detailed temperature data.
-
DSAO120AK01: An analog output module with high precision and reliability, suitable for applications requiring precise analog control.
-
DSDO115K12 3BSE019933R1: A kit version of the module, including additional components for easier installation and setup.
-
DSDO115K12 3BSE019933R1: An upgraded version with enhanced features and improved performance, offering a future-proof solution for advanced digital output needs.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Before installing the ABB DSDO115K12, ensure that the designated location meets the specified temperature and humidity requirements. Mount the module securely on a standard DIN rail or panel using the provided hardware. Use shielded cables for connections to minimize electrical interference. Ensure proper grounding and power supply specifications to prevent voltage fluctuations.
Maintenance Suggestions: Perform regular visual inspections to check for dust accumulation, wear, or damage. Clean ventilation openings to ensure proper airflow and prevent overheating. Monitor diagnostic indicators for any abnormal conditions or warning messages. In harsh environments, consider implementing a scheduled maintenance program to minimize downtime.
Service and Guarantee Commitment
The ABB DSDO115K12 is backed by ABB’s comprehensive support and quality assurance. The module comes with a 24-month warranty, covering protection against manufacturing defects. ABB’s global technical support network offers 24/7 assistance with guaranteed response times, ensuring minimal downtime and maximum efficiency. Each DSDO115K12 undergoes extensive testing to ensure reliability in industrial environments, providing customers with confidence in the product’s long-term performance.
