Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | DSAI130 |
| Manufacturer | ABB |
| Product Category | Analog Input Module |
| Series | ABB Ability™ System 800xA |
| Input Voltage Range | 24V DC ±20% |
| Number of Channels | 16 channels |
| Input Signal Types | Voltage (±10V), Current (±20mA) |
| Accuracy | ±0.025% |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 236.7 mm × 14.4 mm × 327.6 mm |
| Weight | 0.52 kg |
| Certifications | CE, UL, RoHS |
| Communication Protocols | Ethernet, Modbus, Profibus DP |
| Protection Level | IP65 |

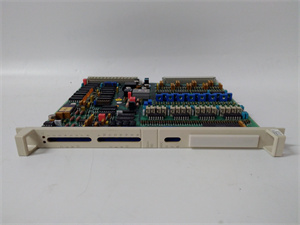

ABB DSAI130
Product Introduction
The ABB DSAI130 is a high-performance analog input module designed for industrial automation applications. It is part of the ABB Ability™ System 800xA series and is known for its robustness, reliability, and efficiency in harsh industrial environments.
Core Advantages and Technical Highlights
High Precision Signal Processing: The DSAI130 features 16 channels with high accuracy (±0.025%) and supports a wide range of input signals, including voltage (±10V) and current (±20mA) signals.
Fast Conversion Time: The module has a fast conversion time of 20 ms, ensuring quick and precise data acquisition.
Versatile Communication: The DSAI130 supports multiple communication protocols, including Ethernet, Modbus, and Profibus DP, enabling seamless integration with existing systems.
Wide Operating Range: It operates reliably within a temperature range of -20°C to +70°C and a humidity range of 5% to 95% non-condensing.
Advanced Diagnostics: The module includes diagnostic functions to monitor and troubleshoot system performance, ensuring minimal downtime.
ABB DSAI130
Typical Application Scenarios
The ABB DSAI130 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For precise control of production lines and machinery.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Transportation Systems: For real-time control of traffic signals and other transportation infrastructure.
Related Model Recommendations
-
ABB 70BV05A-ES: Known for its robust I/O capabilities.
-
ABB 70EA2a-ES: A reliable choice for general control tasks.
-
ABB 70EA01B-ES: Ideal for communication-intensive applications.
-
ABB 70EB0lb-E: Designed for motion control.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB DSAI130 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
