Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB DI651 |
| Manufacturer | ABB |
| Product category | Digital Input Module |
| Input voltage range | 24V DC |
| Number of input channels | 16 or 32 channels (depending on model) |
| Input type | PNP or NPN (configurable) |
| Isolation voltage | 500V AC |
| Response time | < 1 ms |
| Operating temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection class | IP20 |
| Dimensions | 90 mm x 68 mm x 25 mm (typical) |
| Weight | 0.15 kg |
| Communication protocols | Direct connection to PLC or other control systems |
| Certifications | CE, RoHS |

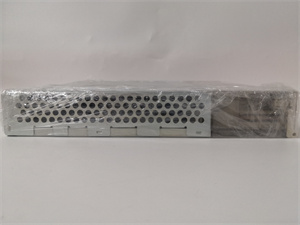

ABB DI651
Product Introduction
The ABB DI651 is a high-performance digital input module designed for industrial automation systems. It is part of ABB’s S500 I/O series and is specifically designed to receive and process digital signals from various sensors and switches. The module features multiple digital input channels, supporting both PNP and NPN input types, and is known for its high precision, fast response, and robust design.
Core Advantages and Technical Highlights
High Channel Density: The DI651 module features 16 or 32 digital input channels, allowing it to monitor multiple signal sources simultaneously. This high channel density enhances the system’s parallel processing capabilities.
Fast Response Time: The module has a response time of less than 1 millisecond, ensuring swift and accurate data processing. This is crucial for maintaining optimal system performance in real-time control applications.
Robust Industrial Design: The DI651 is designed for harsh industrial environments, with an operating temperature range of -20°C to +70°C and a protection class of IP20. Its compact design and low weight make it easy to install and maintain.
Flexible Configuration: The module supports a wide range of digital input types and can be configured to work with various industrial protocols such as Modbus, Profibus, and Ethernet/IP.
Isolation and Protection: Each input channel features isolation protection to prevent external interference and enhance system reliability.

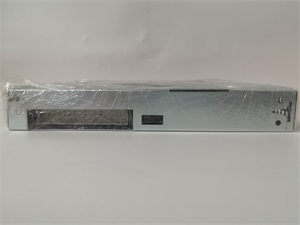

ABB DI651
Typical Application Scenarios
The ABB DI651 is widely used in various industrial sectors, including:
-
Manufacturing: Monitoring assembly lines and robotic systems.
-
Power Generation: Controlling turbines, generators, and boilers in power plants.
-
Oil & Gas: Managing pipeline monitoring and refinery operations.
-
Water Treatment: Monitoring water flow and treatment processes.
Related Model Recommendations
-
ABB DO650: A digital output module that can be used in conjunction with the DI651 for complete control solutions.
-
ABB ACS880 Drives: Compatible with the DI651 for precise motor speed and torque regulation.
Installation, Commissioning and Maintenance Instructions
Installation Preparation
Before installing the ABB DI651, ensure that the environment meets the specified requirements, including an operating temperature range of -20°C to +70°C. The installation location should be free from excessive dust, moisture, and corrosive gases to ensure long-term reliability. Use a standard DIN rail for secure installation.
Maintenance Suggestions
To maintain the ABB DI651, perform regular inspections of the module and its connections to ensure they are secure and free from corrosion. Clean the unit regularly with a soft, dry cloth to remove dust and debris. If any issues arise, refer to the troubleshooting guide in the user manual for common solutions. Replace any worn or damaged parts promptly to ensure continued performance.
