Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product model | ABB AO2000 LS25 |
| Manufacturer | ABB |
| Product category | Laser Gas Analyzer |
| Measurement Channels | 16 analog outputs |
| Signal Types | 4-20 mA, 1-5 VDC |
| Communication Protocol | Modbus TCP/IP, RS-232, Ethernet (10/100Base-T) |
| Operating Voltage | 24V DC |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -20°C to +55°C |
| Humidity Range | 0% to 95% RH (non-condensing) |
| Protection Rating | IP66 (outdoor use) |
| Dimensions | Transmitter: 120 mm (W) x 90 mm (H) x 65 mm (D); Receiver: 120 mm (W) x 90 mm (H) x 65 mm (D) |
| Weight | Transmitter: 0.5 kg; Receiver: 0.5 kg |

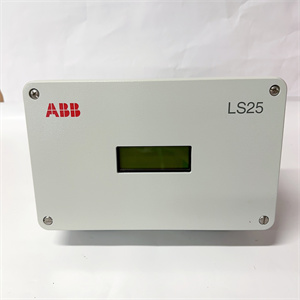

ABB AO2000 LS25
Product Introduction
The ABB AO2000 LS25 is a high-precision laser gas analyzer designed for continuous gas composition monitoring in industrial environments. As part of the ABB Advance Optima series, it ensures accurate and reliable measurements of individual gas components using advanced laser technology. The AO2000 LS25 features a modular design, allowing it to be combined with other analyzer modules and fully remote-controlled via the AO2000 central processing unit. It supports a wide range of communication protocols, including Modbus TCP/IP and RS-232, facilitating seamless integration into existing automation systems.
Core Advantages and Technical Highlights
High Precision and Reliability: The ABB AO2000 LS25 uses advanced laser technology to provide highly accurate measurements of gas concentrations. It features a temperature-stabilized diode laser and high-quality optics, ensuring stable and reliable performance.
Advanced Communication: Supporting multiple communication protocols, the AO2000 LS25 can be easily integrated into various industrial control systems. It also includes an optional Ethernet board for TCP/IP communication via LAN.
Robust Design: The transmitter and receiver units are designed with IP66 protection, making them suitable for outdoor use and harsh industrial environments. The standard optical windows can withstand pressures up to 5 bar (absolute pressure), ensuring durability.
Easy Installation and Maintenance: The AO2000 LS25 includes purging and alignment units for easy installation and maintenance. The purging system prevents dust and other contaminants from settling on the optical windows, ensuring long-term reliability.
Extended Diagnostics: The analyzer includes advanced diagnostic features, such as error logs and system logs, which can be downloaded for troubleshooting and maintenance. It also supports zero and span checks with internal or external cells, enhancing calibration accuracy.

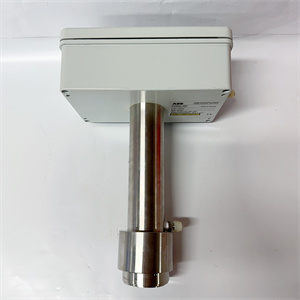

ABB AO2000 LS25
Typical Application Scenarios
The ABB AO2000 LS25 is widely used in industries where precise gas composition monitoring is essential. In power generation plants, it monitors flue gas emissions to ensure compliance with environmental regulations. In chemical processing facilities, the AO2000 LS25 measures gas concentrations in real-time, enhancing process control and safety. It is also used in water treatment plants to monitor gas levels in wastewater treatment processes.
Related Model Recommendations
-
ABB AC800M: A powerful PLC controller that integrates seamlessly with the ABB AO2000 LS25 for advanced automation control.
-
ABB AI810: A complementary analog input module for precise data acquisition.
-
ABB DI810: A digital input module that can be used alongside the ABB AO2000 LS25 to provide a complete I/O solution.
-
ABB AC500: A versatile PLC platform that can be used in conjunction with the ABB AO2000 LS25 for comprehensive control systems.
Installation, Commissioning and Maintenance Instructions
Installation Preparation: Before installing the ABB AO2000 LS25, ensure the environment meets the specified temperature and humidity requirements (-20°C to +55°C, 0% to 95% RH non-condensing). Use shielded cables and proper grounding to minimize electromagnetic interference. Follow ABB’s guidelines for mounting the transmitter and receiver units, ensuring proper ventilation and protection from dust.
Maintenance Suggestions: Regularly inspect connections for wear and clean the optical windows with a damp cloth to prevent contamination. Use ABB’s dedicated software for module configuration and firmware updates. Follow ABB’s guidelines for handling sensitive components, including anti-static measures during maintenance.
Service and Guarantee Commitment
ABB stands behind the quality and reliability of the ABB AO2000 LS25, offering a comprehensive warranty that covers manufacturing defects and performance issues for a specified period. Our dedicated after-sales support team is available to assist with technical inquiries and provide prompt solutions to ensure minimal disruption to your operations. We also offer extensive training and technical support services to help customers fully leverage the capabilities of the analyzer, ensuring optimal performance and efficiency in their industrial applications.
