Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 216AB61 |
| Manufacturer | ABB |
| Product Category | Industrial Control Module |
| Input Voltage Range | 9-36V DC |
| Output Voltage Range | 115-230V AC |
| Rated Output Current | 6A |
| Efficiency | >90% |
| Power Consumption | <10W |
| Operating Temperature Range | -20°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (W×H×D) | 100 mm × 65 mm × 25 mm |
| Weight | 200g |
| Protection Level | IP65 |
| Certifications | CE, RoHS, IEC 61131-2 compliant |

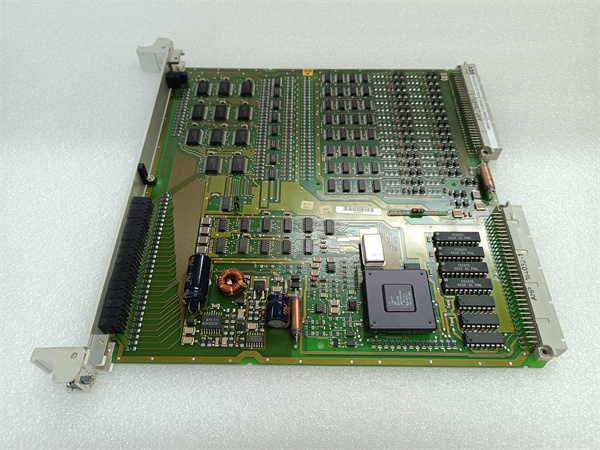

ABB 216AB61
Product Introduction
The ABB 216AB61 is a high-performance digital control module designed for industrial automation systems. It is part of the ABB Procontrol series and is engineered to provide reliable and efficient control of industrial processes. This module is designed to convert digital signals into binary output signals, making it suitable for controlling relays, valves, motors, and other actuators.
Core Advantages and Technical Highlights
High Precision and Reliability: The 216AB61 features advanced electronic components and materials, ensuring high precision and reliability in harsh industrial environments.
Low Power Consumption: The module is designed with energy efficiency in mind, consuming less than 10W of power while maintaining an efficiency of over 90%.
Wide Operating Temperature Range: The 216AB61 operates reliably within a temperature range of -20°C to +55°C, making it suitable for a variety of industrial settings.
Multiple Communication Protocols: The module supports various communication protocols, including Modbus RTU, Profibus, and Ethernet, facilitating seamless integration with other devices and systems.
Compact Design: The 216AB61 features a compact form factor, making it easy to install and maintain in tight spaces.
Multiple Protection Functions: The module includes overheat, overload, and short-circuit protection, ensuring safe and stable operation.
ABB 216AB61
Typical Application Scenarios
The ABB 216AB61 is widely used in various industrial sectors, including:
-
Manufacturing Plants: For controlling production lines, robotic arms, and packaging machinery.
-
Power Plants: For monitoring and controlling power generation processes.
-
Water Treatment Facilities: For managing pumps and valves in water treatment systems.
-
Oil & Gas Industry: For high-precision control and monitoring of industrial processes.
Related Model Recommendations
-
216AB61 HESG324013R100: A variant with additional features and improved performance.
-
216AB61 HESG324013R0100: Another variant with different specifications, suitable for specific applications.
Installation, Commissioning, and Maintenance Instructions
Installation Preparation: Ensure the installation environment is clean and free of interference. Prepare the necessary tools and follow the installation manual carefully.
Maintenance Suggestions: Regularly inspect the module for physical damage, monitor output voltages using a multimeter, and check for abnormal heat generation or noises. Clean the module’s surface periodically to prevent dust accumulation, which can affect heat dissipation.
Service and Guarantee Commitment
The ABB 216AB61 comes with a comprehensive warranty, ensuring customer satisfaction and peace of mind. ABB provides technical support and service to assist with installation, troubleshooting, and maintenance.
