Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB UUD148AE02 |
| Manufacturer | ABB |
| Product Category | Automation Controller Module |
| Series | AC 800M Controller Family |
| Processor | Dual-core 1.5 GHz |
| Memory | 2GB RAM, 8GB Flash |
| Input Voltage | 24V DC (18-30V range) |
| Power Consumption | 25W typical |
| Operating Temperature | -40°C to +70°C |
| Communication Ports | 2x Ethernet, 1x USB, 1x RS-485 |
| Protocol Support | PROFINET, Modbus TCP, OPC UA |
| Cybersecurity | IEC 62443 compliant |
| Safety Rating | SIL 2 (IEC 61508) |
| Dimensions | 120 × 80 × 60 mm |
| Weight | 600g |
| Certifications | UL, CE, ATEX Zone 2 |

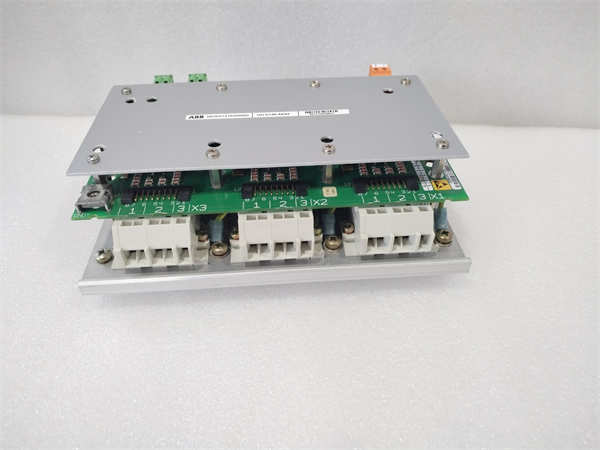

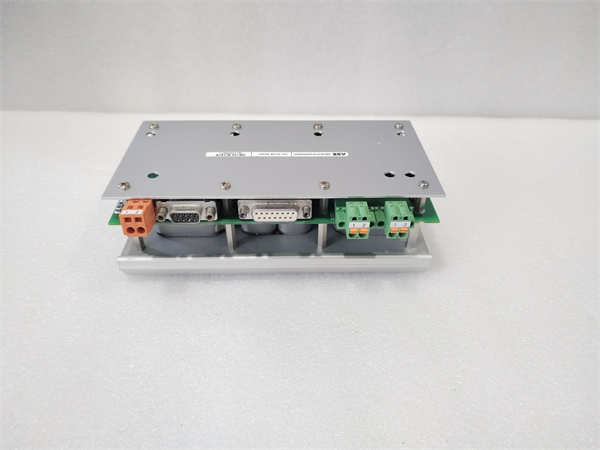

ABB UUD148AE02
Product Introduction
The ABB UUD148AE02 is a high-performance automation controller module designed for demanding industrial applications. As part of ABB’s AC 800M controller family, this advanced module delivers reliable control for complex processes in industries such as oil & gas, power generation, and chemical processing.
Engineered for rugged industrial environments, the UUD148AE02 combines powerful processing capabilities with robust communication options. Its modular design allows for flexible system configuration and easy integration with ABB’s System 800xA and third-party automation systems.
Core Features & Benefits
- High-Performance Processing:
Dual-core 1.5 GHz processor for fast execution
2GB RAM for complex control strategies
Deterministic control with ≤1ms cycle times
- Industrial Connectivity:
Dual Ethernet ports (PROFINET, Modbus TCP)
OPC UA support for vertical integration
USB port for local configuration
- Robust Design:
Wide operating temperature range (-40°C to +70°C)
Vibration resistant (5g)
ATEX Zone 2 certified version available
- Cybersecurity:
Secure boot mechanism
Role-based access control
Encrypted communications
- Advanced Diagnostics:
Built-in health monitoring
Predictive maintenance capabilities
Hot-swappable for reduced downtime

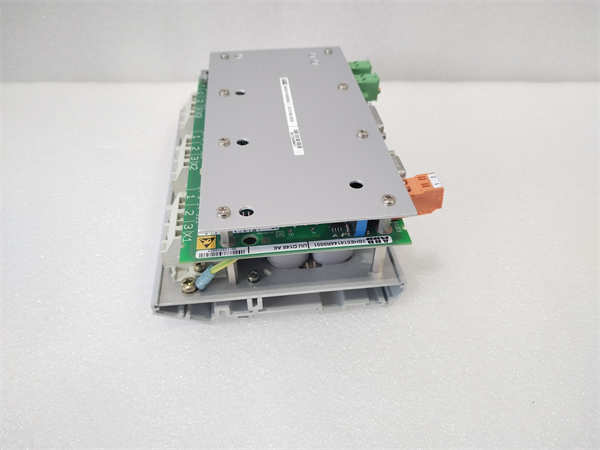

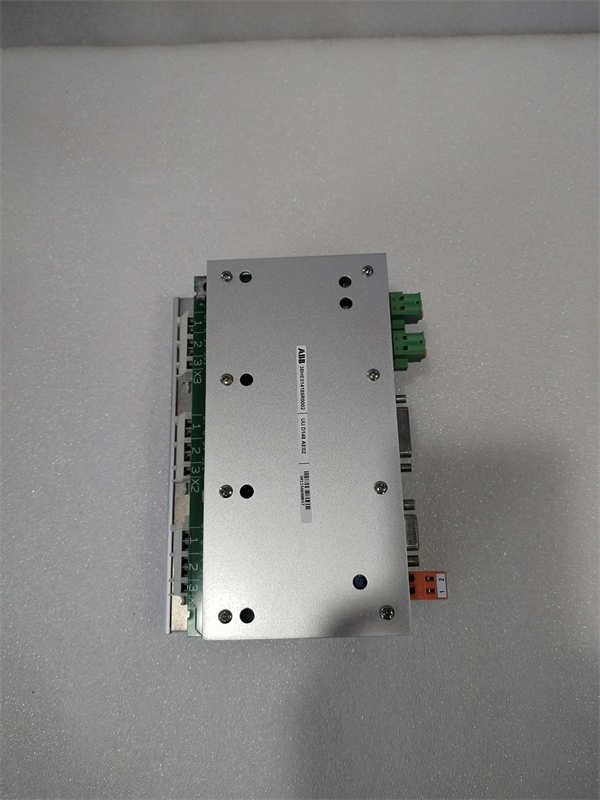

ABB UUD148AE02
Technical Specifications
Processing Performance:
Scan time: ≤1ms for 1000 I/O points
Execution of 5000 function blocks/second
Communication:
PROFINET IRT for motion control
Modbus TCP for device integration
OPC UA for IT/OT convergence
Environmental:
Humidity: 5-95% non-condensing
Altitude: Up to 2000m without derating
Electrical:
Isolation: 1500V AC
Surge protection: 4kV
Ordering Information
Base Unit:
UUD148AE02 (standard version)
Accessories:
CAB501 (communication cable kit)
MPR091 (mounting plate)
PWR241 (redundant power supply)
Software:
Automation Builder (engineering tool)
Control Software AC 800M
Conclusion
The ABB UUD148AE02 automation controller module delivers reliable, high-performance control for industrial automation applications. Its rugged design, advanced features, and flexible configuration make it an ideal choice for mission-critical control systems.
