Description
Product Introduction
The ABB 3BHE039426R0101 is a multi-role control board primarily serving as an External Output Interface (EOI) for ACS-series drives or a regulator unit for UNITROL 6000 excitation. In drive applications, it provides 8 isolated outputs (Digital/Analog) directly to the controller backplane without external converters.
When configured for excitation, this ABB 3BHE039426R0101 utilizes a triple-CPU architecture to maintain voltage regulation accuracy within ±0.1%. It handles 24 Vdc logic and supports hot-swapping in compatible racks. Signal update rates sit at a typical 10 ms for I/O scanning.

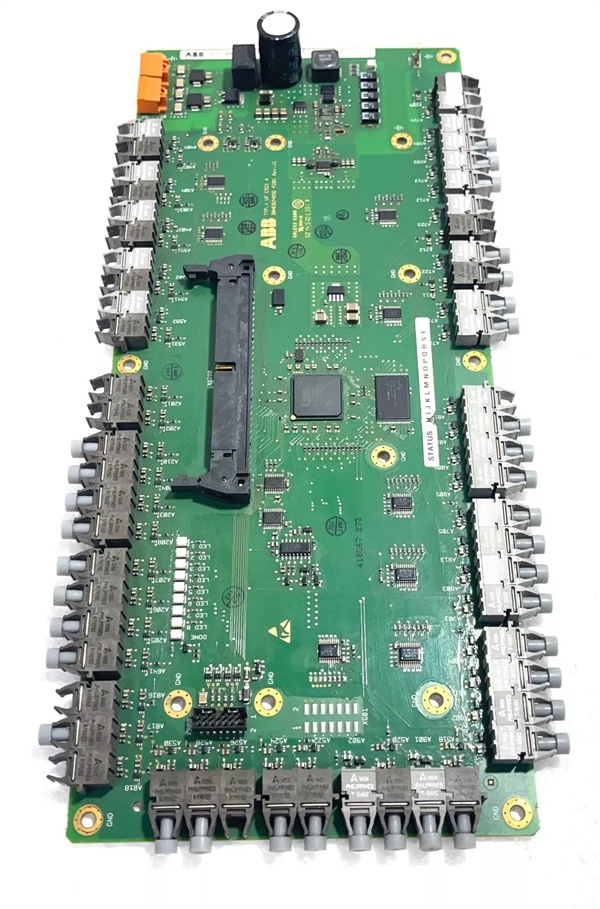

ABB UFC912A101 3BHE039426R0101
Key Technical Specifications
- Supply Voltage: 24 Vdc (Range 18–32 Vdc, ±20%)
- Power Consumption: Max 5 W – 15 W (Application dependent)
- Output Channels: 8 Configurable (DO/AO Hybrid)
- Isolation Voltage: 1500 V AC / 4 kV (Opto-isolated channels)
- Communication: Ethernet (Modbus TCP), Fiber Optic (1 Gbps, excitation role)
- Update Rate: 10 ms (Typical I/O), 0.05 ms (Excitation calc cycle)
- Operating Temp: -20 °C to +70 °C (Drive) / -25 °C to +75 °C (Exciter)
- Protection Rating: IP20 (Chassis mounted)
- Resolution: 12-bit (Analog output)
- Mounting: Standard CPCI / DIN Rail / Drive Slot
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Verify the 3BHE039426R0101 sticker matches the ABB serial on the PCB silkscreen. Inspect the gold-finger edge connector for oxidation or slot insertion wear.
- Live Functional Test: Seat in a test rack (AC800M or Drive Sim). Cycle all 8 outputs under load (2 A/channel). Monitor LED status; verify analog ramp linearity with a Fluke 115—we look for <1% deviation.
- Electrical Parameter Test: Check 24 Vdc input impedance. Megger the channel isolation at 1500 V AC; leakage must stay below 10 µA to prevent crosstalk to the controller.
- Firmware Verification: Read the hardware ID via Control Builder or DriveWindow. Log the checksum—well, technically excitation units run RTOS, but firmware v6.0+ tightens timing margins.
- Final QC & Packaging: Clean gold fingers with isopropyl. Bag in anti-static foam with desiccant. Label “QC Passed – Logic Verified” with the date before boxing.
Replacement Pitfall Guide
❗ Role Mismatch: The ABB 3BHE039426R0101 serves dual roles (EOI vs Exciter). Swapping an EOI board into a UNITROL slot triggers “HW Config Mismatch” and blocks excitation.
❗ Backplane Seating: The gold fingers require firm, even insertion. “Half-seated” boards pass LED self-tests but drop random outputs under cabinet vibration—visually check the card cage latch.
❗ Isolation Grounding: Channels are opto-isolated from the backplane. Connecting field device grounds to the DIN rail andthe module’s logic ground creates ground loops, skewing analog readings.
❗ Power Budget: Drawing ~15 W, this adds localized heat. Ensure rack 24 Vdc PS has 20% headroom; voltage sag below 18 Vdc causes the processor to watchdog-reset during scans.
❗ ESD to Logic: The gold fingers are unprotected. Discharge to the rack chassis before insertion, especially in dry shop air—though your mileage may vary on ESD mat usage.
Keep these in mind and you’ll cut 90% of rework time.

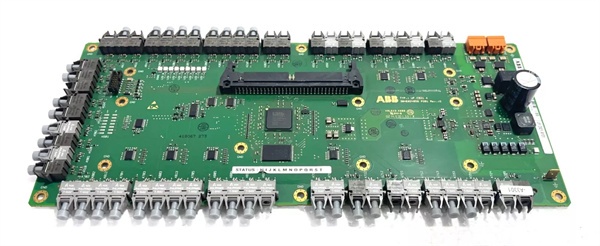

ABB UFC912A101 3BHE039426R0101
Compatibility Matrix & Benchmarks
- ABB 3BHE039426R0101 → ABB UFC913A102 : Direct — Firmware upgrade path for excitation; verify parameter migration
- ABB 3BHE039426R0101 → ABB AC 800M Rack (CI858/869) : Direct — Plugs into standard CPCI slots as EOI
- ABB 3BHE039426R0101 → Generic 24 Vdc I/O Card : Incompatible — Proprietary ABB backplane timing/protocol
- Response Latency: < 10 ms (I/O Scan to Output Active)
- Voltage Regulation: ±0.1% (Generator Terminal, Exciter mode)
- Isolation Test: 1500 V AC (Channel to Backplane, 1 min withstand)
