Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | SDCS-PIN-51 |
| Manufacturer | ABB |
| Product Category | Power Interface Module |
| Input Voltage | 48 VDC nominal (36–72 VDC range) |
| Output Voltages | +5 VDC (logic), +24 VDC (field) |
| Current Capacity | 5V: 15A max, 24V: 3A max |
| Isolation | 1500 VAC input-to-output |
| Hot-Swap Support | Yes (with live insertion circuitry) |
| Operating Temperature | -25°C to +70°C |
| Redundancy | Dual-input N+1 configuration |
| Communication | S+ Bus for diagnostics |
| Physical Dimensions | 45 x 175 x 207 mm (HxWxD) |
| Certifications | UL 508, CE, IEC 61131-2 |

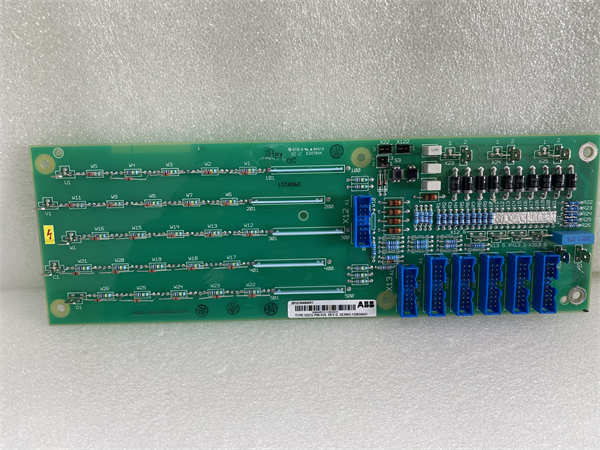

ABB SDCS-PIN-51
Product Introduction
The ABB SDCS-PIN-51 is a mission-critical power interface module within ABB’s Symphony™ Plus distributed control system (DCS). Designed for high-availability industrial applications, this module converts 48VDC input into precisely regulated +5VDC (for controller logic) and +24VDC (for field instruments) while ensuring complete electrical isolation between power domains. As a core component of ABB’s S800 I/O series, the SDCS-PIN-51 integrates with Harmony control processors like SDCS-CON-2 to deliver uninterrupted power even during grid fluctuations.
Its primary role is to eliminate single points of failure through dual-redundant power inputs and N+1 architecture. The ABB SDCS-PIN-51 actively monitors voltage ripple (<50mV), current imbalance, and thermal conditions, enabling predictive maintenance in critical processes. Deployed globally in power generation, water treatment, and chemical plants, this module provides the clean, stable power backbone required for ABB’s high-precision analog/digital I/O cards to operate reliably for decades.
Core Advantages and Technical Highlights
True Redundancy Architecture: The SDCS-PIN-51 features independent OR-ing diodes and dual-input paths, allowing seamless switchover between primary/backup power sources in <100μs during failures. Cross-current balancing prevents voltage droop during transitions.
Intelligent Power Management: Real-time diagnostics track load sharing between parallel modules via S+ Bus. Users receive alerts for abnormal current draw (>80% capacity) or voltage deviation (±2%), enabling proactive replacement before failure.
Robust Electrical Protection: Triple-stage filtering suppresses 100kHz–1GHz EMI, while 4kV surge protection (ANSI/IEEE C62.41) shields downstream electronics. Galvanic isolation (1500VAC) breaks ground loops in cathodic protection systems.
Maintenance Optimization: Tool-free hot-swap capability allows module replacement without system shutdown. Front-panel LEDs indicate power quality (green), marginal (yellow), and fault (red) states. The ABB SDCS-PIN-51‘s convection cooling design eliminates fans, reducing dust ingress in paper mills or cement plants.
Typical Application Scenarios
In combined-cycle power plants, the ABB SDCS-PIN-51 powers turbine control logic during black-start events. Its wide input range (36–72VDC) maintains stable 5V/24V outputs despite battery voltage sag during generator synchronization, preventing safety system resets.
For wastewater treatment SCADA networks, the module supplies isolated 24VDC to pH/ORP sensors in electrolytic environments. The SDCS-PIN-51‘s <0.1% ripple voltage ensures accurate analog readings, while N+1 redundancy allows maintenance during plant operation without disrupting dissolved oxygen control loops.
In pharmaceutical batch processes, it enables hot-swap replacement of I/O cards during CIP (Clean-in-Place) cycles. The module’s conformally coated PCB withstands washdown humidity, while load-sharing diagnostics prevent overcurrent during valve sequencing surges.
Related Model Recommendations
SDCS-POW-1: Primary 48VDC power supply; feeds SDCS-PIN-51 in redundant configurations.
SDCS-CON-2: Harmony controller; logic powered by SDCS-PIN-51‘s 5V output.
SDCS-IOB-1: I/O bus controller; interfaces between SDCS-PIN-51 and S800 I/O cards.
SDCS-AIO-2: Analog input module; relies on SDCS-PIN-51‘s noise-free 24V supply.
SDCS-RLY-1: Relay output module; protected by SDCS-PIN-51‘s surge suppression.
SDCS-PIN-52: Enhanced version with 30A 5V output for high-density I/O racks.

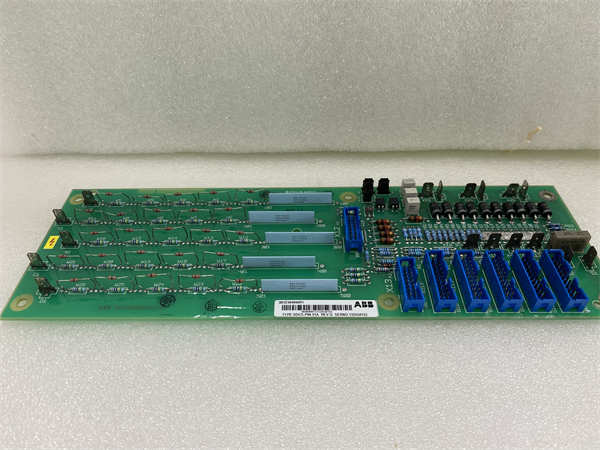

ABB SDCS-PIN-51
Installation, Commissioning and Maintenance Instructions
Installation preparation: Verify rack grounding resistance <1Ω. Ensure input polarity (48VDC+/–) matches terminal labels. Use torque screwdriver (0.6 N·m) for power connectors. Maintain 30mm clearance above/below SDCS-PIN-51 for airflow. Pre-check input voltage (36–72VDC) with load disconnected.
Maintenance suggestions: Quarterly measure output ripple (oscilloscope, 20MHz BW). Annually clean air vents with IP20-rated vacuum. Monitor load distribution via Control Builder MT; balance loads if any SDCS-PIN-51 exceeds 70% capacity. Replace after 100,000 power cycles or 15 years. Keep configuration jumper settings documented for quick swap.
Service and Guarantee Commitment
ABB offers a 36-month warranty for the SDCS-PIN-51, covering component failures and performance deviations. Global technical support provides <4-hour remote diagnostics and <48-hour on-site response for critical sites.
Lifecycle commitment guarantees spare availability for 20 years post-production. Customers receive free access to Power Diagnostics Suite software for predictive analytics. All repaired modules undergo 72-hour burn-in testing with full parameter verification reports.
