Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | S-093S 3BHB030475R0009 |
| Manufacturer | ABB |
| Product category | Phase module (for AC 800 PEC controller) |
| Operating voltage | 10-30 V DC |
| Communication interfaces | 3 x RS232/RS485 (configurable) |
| Data transmission rate | 300-9600 bps |
| Communication error rate | ≤10⁻⁴ |
| Operating temperature | -20°C to 70°C |
| Humidity tolerance | ≤95% (non-condensing) |
| Power consumption | 1 W (standby), 2 W (active) |
| Mounting options | DIN rail, desktop, or embedded |
| Dimensions | 120mm × 80mm × 35mm |
| Certifications | IEC 61131-2, CE, RoHS |

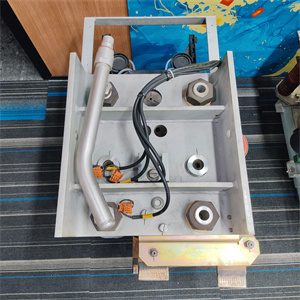

ABB S-093S 3BHB030475R0009
Product introduction
The S-093S 3BHB030475R0009 from ABB is a high-precision phase module designed for seamless integration with the AC 800 PEC controller series, serving as a critical component in industrial power management systems. This module specializes in real-time phase monitoring, analysis, and control, enabling precise balancing of three-phase electrical loads in complex automation environments. By continuously collecting and processing phase data, the S-093S 3BHB030475R0009 ensures stable power distribution, reduces energy waste, and prevents equipment damage caused by phase imbalances.
Engineered for versatility, the S-093S 3BHB030475R0009 supports multiple communication protocols via its configurable RS232/RS485 interfaces, allowing easy integration with PLCs, SCADA systems, and energy management platforms. Its compact design and flexible mounting options (DIN rail, desktop, or embedded) make it suitable for space-constrained control cabinets in various industrial settings. Whether deployed in manufacturing plants, power distribution centers, or renewable energy facilities, the S-093S 3BHB030475R0009 delivers reliable phase management, enhancing system efficiency and operational safety.
Core advantages and technical highlights
Multi-interface flexibility: The S-093S 3BHB030475R0009 features three configurable RS232/RS485 interfaces, enabling seamless communication with diverse industrial equipment. This adaptability allows it to connect with legacy systems using RS232 and modern networks via RS485, eliminating the need for additional protocol converters. For example, in a mixed automation environment, it can transmit phase data to an old PLC via RS232 while sending real-time alerts to a new SCADA system through RS485, ensuring comprehensive monitoring.
Precise phase monitoring: With a communication error rate of ≤10⁻⁴, the S-093S 3BHB030475R0009 guarantees accurate transmission of phase parameters, including voltage imbalance, phase shift, and frequency fluctuations. This precision is critical for applications like motor control, where even a 2% phase imbalance can reduce motor lifespan by 50%. The module’s fast data processing ensures deviations are detected within milliseconds, triggering timely corrective actions.
Robust environmental resilience: Designed to operate in -20°C to 70°C and humidity up to 95% (non-condensing), the S-093S 3BHB030475R0009 thrives in harsh industrial conditions. Whether installed in unheated outdoor cabinets or humid chemical plants, it maintains consistent performance, reducing downtime caused by environmental stress. Its low power consumption (1W standby) also minimizes heat generation, making it suitable for tightly packed control panels.
Typical application scenarios
In manufacturing facilities, the S-093S 3BHB030475R0009 plays a key role in three-phase motor management. It continuously monitors phase balance across production line motors, detecting imbalances that could lead to overheating or premature failure. When a deviation exceeds the set threshold, the module sends an alert via its RS485 interface to the central PLC, which adjusts the load distribution—for instance, shifting some power from a heavily loaded phase to a lighter one. This proactive control reduces maintenance costs and prevents unplanned shutdowns, particularly valuable in 24/7 production environments.
In renewable energy systems, such as solar farms, the S-093S 3BHB030475R0009 ensures stable power output from inverters to the grid. It tracks phase synchronization between the solar array and the grid, correcting minor shifts to avoid penalties for non-compliance with grid codes. Its wide temperature tolerance allows reliable operation in desert installations, where daytime temperatures often exceed 50°C, ensuring consistent energy feed-in and maximizing revenue for plant operators.

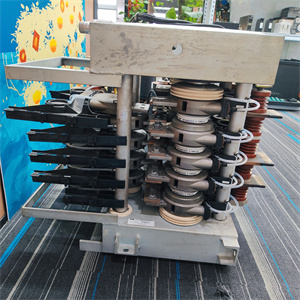

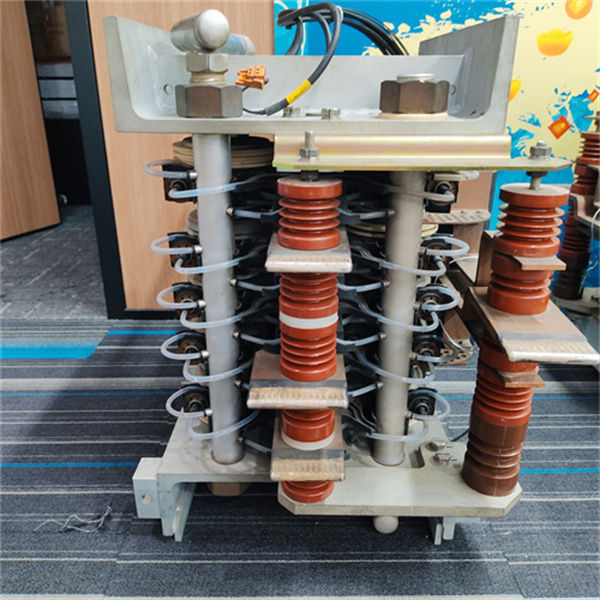

ABB S-093S 3BHB030475R0009
Related model recommendations
S-093H 3BHB030478R0009: A high-power variant of the S-093S 3BHB030475R0009 designed for heavy-industry applications with higher current loads.
AC 800 PEC 3BHB013085R0001: The compatible controller that integrates seamlessly with the S-093S 3BHB030475R0009 for comprehensive power management.
CI854A 3BSE022469R1: A PROFINET interface module that extends the S-093S 3BHB030475R0009’s communication capabilities to Ethernet-based networks.
TB857 3BSE013269R1: A surge-protected terminal block that enhances the S-093S 3BHB030475R0009’s durability in high-EMI environments.
S-093L 3BHB030476R0009: A low-profile version of the S-093S 3BHB030475R0009 for ultra-compact control cabinets with limited space.
PM866-2 3BSE050201R1: A high-performance CPU module that processes data from the S-093S 3BHB030475R0009 for advanced power control logic.
Installation, commissioning and maintenance instructions
Installation preparation: Before installing the S-093S 3BHB030475R0009, ensure the mounting surface (DIN rail, desktop, or embedded slot) is clean and free of debris. Verify the power supply matches the 10-30 V DC requirement and install a 0.5A fuse in the supply line to prevent overcurrent damage. Use shielded twisted-pair cables for communication connections, with shields grounded at both ends to reduce EMI. Tools needed include a torque screwdriver (0.5-0.8 Nm), wire strippers, and a multimeter for voltage checks. Avoid installing near high-voltage cables or heat sources exceeding 70°C.
Maintenance suggestions: Inspect the S-093S 3BHB030475R0009 quarterly for loose connections or dust accumulation; clean with compressed air if necessary. Check communication links monthly using a protocol analyzer to ensure error rates remain below 10⁻⁴. If data transmission issues occur, verify cable continuity and replace damaged cables. For persistent faults, reset the module by cycling power; if problems persist, replace with a compatible spare. Calibrate the module annually using a phase reference generator to maintain measurement accuracy, especially in critical applications like motor control.
Service and guarantee commitment
The S-093S 3BHB030475R0009 comes with a 3-year warranty from the installation date, covering manufacturing defects and ensuring compliance with published performance specifications. ABB guarantees replacement of faulty units within 48 hours for critical applications, minimizing operational downtime. Technical support is available 24/7 via ABB’s global network of automation specialists, providing assistance with installation, troubleshooting, and integration. Extended service contracts offer annual preventive maintenance, calibration, and priority support, ensuring the S-093S 3BHB030475R0009 delivers reliable performance throughout its 8-year design lifespan. Customers also gain access to online resources, including detailed manuals and firmware updates, to optimize module performance.
