Description
Detailed parameter table
| Parameter name | Parameter value |
| Product model | REC650 1MRK008514-CB |
| Manufacturer | ABB |
| Product category | Numerical protective relay |
| Application | Medium-voltage distribution networks (10-35 kV) |
| Protection functions | Overcurrent, earth fault, distance protection, thermal overload |
| Communication protocols | IEC 61850, Modbus TCP, DNP3.0 |
| Inputs/outputs | 16 digital inputs, 8 digital outputs, 4 analog inputs |
| Operating voltage | 24-250 V DC/AC |
| Power consumption | Max 15 W |
| Operating temperature | -40°C to 70°C |
| Dimensions | 145mm × 190mm × 130mm |
| Mounting type | Panel mount |
| Protection rating | IP42 (front), IP20 (rear) |
| Certifications | IEC 61850-3, IEC 60255, CE, UL |

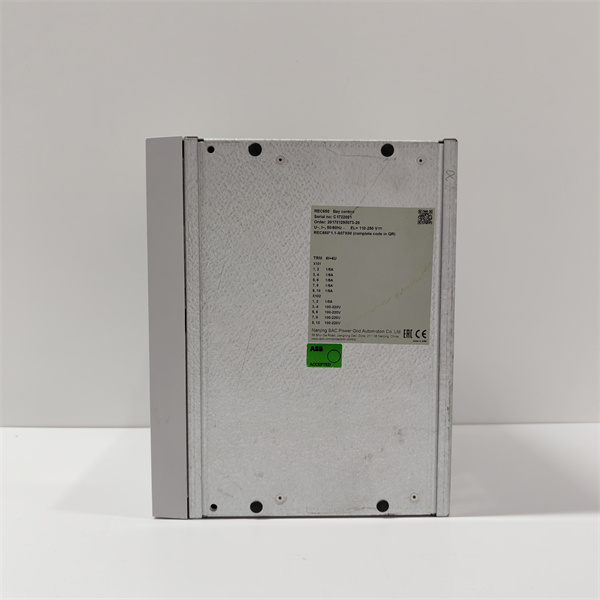

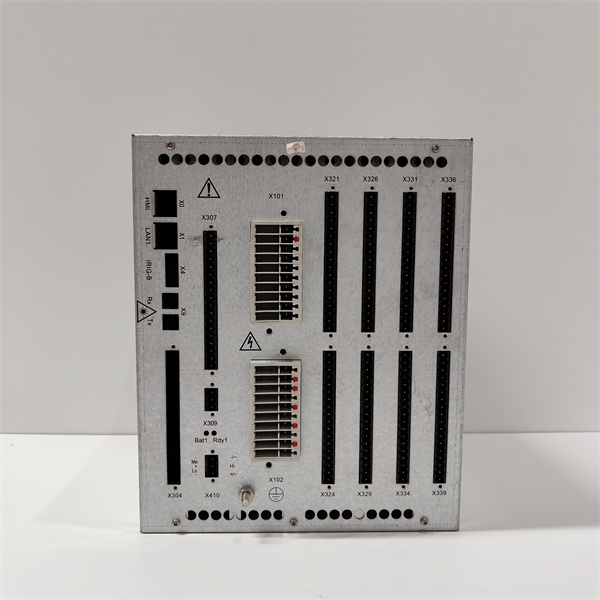

ABB REC650 1MRK008514-CB
Product introduction
The ABB REC650 1MRK008514-CB is a advanced numerical protective relay designed for the protection, control, and monitoring of medium-voltage power distribution networks. As a key component in ABB’s Relion® product family, ABB REC650 1MRK008514-CB integrates multiple protection functions into a single device, ensuring reliable operation of feeders, transformers, and motors in 10-35 kV systems.
Unlike traditional electromechanical relays, ABB REC650 1MRK008514-CB leverages digital signal processing to deliver precise protection with customizable settings, adapting to diverse network configurations. Its compliance with the IEC 61850 standard enables seamless integration into smart grid environments, facilitating data exchange with SCADA systems and other intelligent electronic devices. Whether deployed in industrial plants, renewable energy facilities, or utility distribution networks, ABB REC650 1MRK008514-CB provides critical fault detection and isolation, minimizing downtime and enhancing grid stability.
Core advantages and technical highlights
Comprehensive protection capabilities: ABB REC650 1MRK008514-CB combines overcurrent, earth fault, distance, and thermal overload protection in one device, eliminating the need for multiple relays. Its distance protection function accurately detects faults within defined zones, enabling selective tripping to isolate only the affected section of the network—critical for maintaining power supply to other loads. In a manufacturing plant with a 20 kV distribution system, this selectivity reduces outage areas by up to 80% compared to traditional overcurrent-only protection.
Smart grid integration: With native support for IEC 61850, including GOOSE (Generic Object-Oriented Substation Event) and MMS (Manufacturing Message Specification), ABB REC650 1MRK008514-CB enables real-time data exchange and remote control in digital substations. This allows utilities to implement adaptive protection schemes that adjust settings based on network conditions, such as redistributing loads during peak hours. The relay’s web-based interface simplifies configuration and monitoring, reducing commissioning time by 30% compared to legacy devices.
Rugged design for harsh environments: ABB REC650 1MRK008514-CB operates reliably in temperatures ranging from -40°C to 70°C, making it suitable for outdoor substations and industrial facilities with extreme conditions. Its wide operating voltage range (24-250 V DC/AC) ensures compatibility with various power supply systems, while surge immunity (6 kV for contact discharge) protects against lightning-induced transients. This robustness ensures consistent performance in environments where dust, vibration, or temperature fluctuations are common.
Typical application scenarios
In a wind farm’s 35 kV collection network, ABB REC650 1MRK008514-CB protects each feeder connecting groups of wind turbines to the main substation. Its distance protection function quickly isolates faults on individual feeders, preventing cascading outages that could shut down the entire farm. The relay communicates via IEC 61850 with the substation’s SCADA system, providing real-time data on current, voltage, and fault events—enabling operators to diagnose issues without onsite visits. Its ability to withstand -40°C temperatures ensures reliable operation in cold-climate wind farms.
In an industrial park’s 10 kV distribution system, ABB REC650 1MRK008514-CB protects transformers supplying power to multiple factories. Its thermal overload protection monitors transformer temperature, issuing alarms or tripping before damage occurs during high-load periods. The relay’s Modbus TCP interface connects to the park’s energy management system, allowing coordinated load shedding to prevent overloads. This integration reduces transformer downtime by 50% and extends equipment lifespan by preventing overheating.

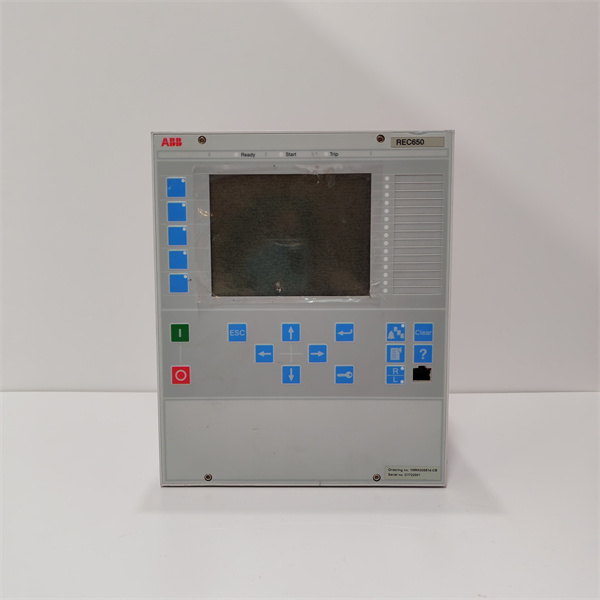

ABB REC650 1MRK008514-CB
Related model recommendations
ABB REC670 1MRK008522-CB: A higher-performance variant of ABB REC650 1MRK008514-CB with advanced protection for transmission lines and large transformers.
ABB RIO600 1MRK006421-BA: An I/O extension module that expands the digital/analog capabilities of ABB REC650 1MRK008514-CB in complex networks.
ABB CI858-1 3BSE018137R1: A communication module that enhances ABB REC650 1MRK008514-CB’s connectivity to Ethernet-based SCADA systems.
ABB PPE091A101 3BHE044481R0101: A redundant power supply ensuring uninterrupted operation of ABB REC650 1MRK008514-CB in critical applications.
ABB RET670 1MRK008539-CB: A transformer protection relay that complements ABB REC650 1MRK008514-CB in substation protection schemes.
ABB HMI60 : A human-machine interface panel that provides local monitoring and control for ABB REC650 1MRK008514-CB.
Installation, commissioning and maintenance instructions
Installation preparation: Mount ABB REC650 1MRK008514-CB on a flat panel using the provided brackets, ensuring a minimum of 50mm clearance around the device for ventilation. Connect control power (24-250 V DC/AC) using 1.5mm² shielded cable, with a 1A fuse for protection. Wire current transformers (CTs) and voltage transformers (VTs) to the analog inputs, ensuring correct polarity. Digital inputs/outputs require 0.5mm² cable, with shields grounded at the relay end. Use a torque screwdriver set to 1.5 Nm for terminal connections. Power off all systems during installation to avoid electrical hazards.
Maintenance suggestions: Inspect ABB REC650 1MRK008514-CB annually for loose connections, dust accumulation, and damage to the front panel. Clean the device with a dry cloth—avoid using compressed air to prevent dust ingress. Verify protection settings quarterly via the web interface, ensuring they match current network conditions. Test trip functionality annually using a relay test set to confirm correct operation. If communication faults occur, check Ethernet cables and IEC 61850 configuration before replacing components. Use only ABB-certified spare parts to maintain protection accuracy and safety certifications.
Service and guarantee commitment
ABB REC650 1MRK008514-CB comes with a 5-year warranty from installation, covering manufacturing defects and ensuring compliance with published performance standards. ABB’s global technical support team provides response within 4 hours for critical issues, with remote diagnostics available 24/7 to minimize downtime. On-site service is available within 72 hours in major regions for complex problems requiring hands-on support.
The warranty includes free firmware updates and access to ABB’s relay configuration software for the duration. Extended service contracts offer annual calibration, functional testing, and priority support, ensuring the relay maintains optimal performance throughout its 20-year design lifespan. ABB’s commitment to quality underscores confidence in ABB REC650 1MRK008514-CB’s reliability in protecting critical power infrastructure.
