Description

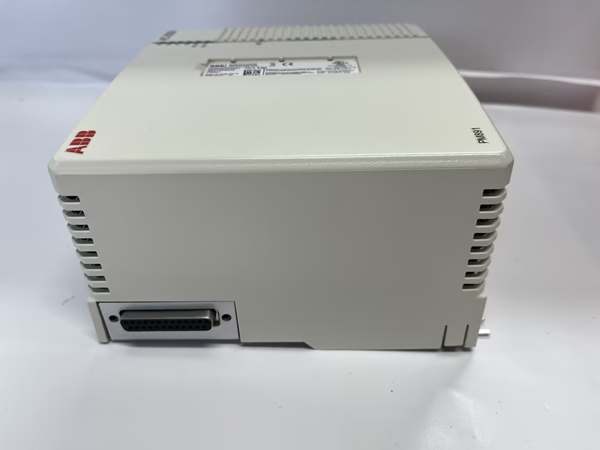

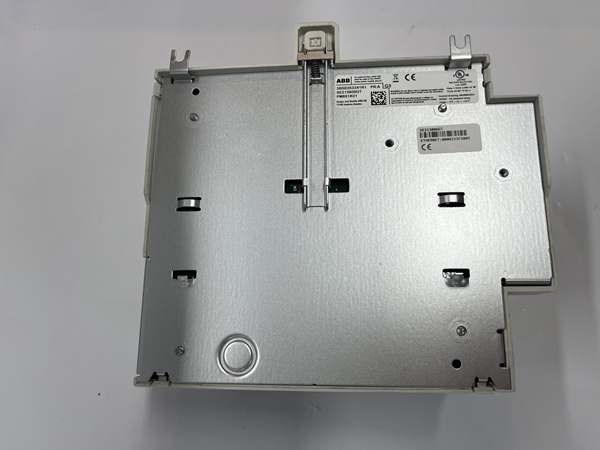

Product Core Brief
- Model: PM891K01 3BSE053241R1
- Brand: ABB
- Series: AC800M / System 800xA
- Core Function: Top-tier processing assembly executing heavy complex IEC 61131-3 logic, managing ModuleBus I/O and RCU redundant synchronization for large process plant racks.
- Product Type: High-End DCS CPU Kit (CPU + TB850 CEX Terminator + TB853 RCU Terminator)
- Key Specs: 450MHz MPC8270 | 256MB total RAM | Max 84 S800 I/O modules per rack
- Note: Active OEM production, factory complete kits stocked for plant expansion and emergency maintenance.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Kit Contents | PM891 CPU, TB850 CEX-Bus terminator, TB853 RCU sync link terminator |
| Processor Core | MPC8270 PowerPC, 450 MHz clock speed |
| Total System RAM | 256 MB (208 MB allocated for user application logic) |
| Onboard Flash Storage | 16 MB firmware flash + SD card slot for offline program backup |
| Operating Supply Voltage | 24 VDC, 19.2 VDC to 30 VDC tolerance range |
| Typical Continuous Power Draw | 10 W (410 mA nominal input current) |
| Maximum Supported S800 I/O Modules | 84 per rack (single or redundant CPU pair) |

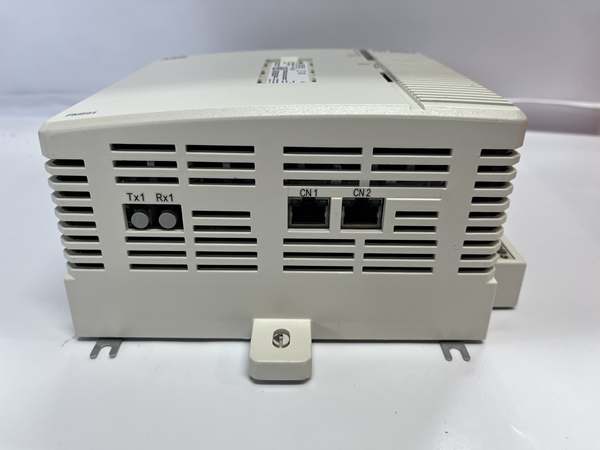

| Onboard Interfaces | 2× 10/100 Mbps RJ45 Ethernet control network; 1× isolated RS232 service COM port; dedicated RCU redundancy link |
| Native Control Protocols | MMS, IAC, RNRP redundant Ethernet |
| Supported Fieldbuses | Profibus DP, Modbus TCP, Ethernet/IP via CEX-Bus CI-series communication modules |
| Redundancy Switchover Latency | <8 ms bumpless primary/backup transfer via RCU cable |
| CEX-Bus Expansion Capacity | Up to 12 external communication interface modules |
| Operating Ambient Temperature | 0 °C to +55 °C rack-mounted |
| Storage Temperature Range | -40 °C to +70 °C |
| Environmental Rating | ISA 71.04 G3 corrosive gas resistance, IP20 enclosure |
| Compliance Standards | IEC 61131-3, UL508, RoHS, Zone 2 hazardous location certified |
| Physical Dimensions | 186 mm H × 119 mm W × 47 mm D |
| Unit Weight (Full Kit) | 0.35 kg |
Product Introduction
This assembly delivers the largest memory pool and fastest logic execution speed within the AC800M CPU lineup, engineered for heavy-duty process sites with thousands of analog loops, batch sequences and event logging tags. It hosts full plant control databases without memory throttling seen on mid-tier controller variants.
Dual isolated Ethernet ports run RNRP redundant network topology, while the dedicated RCU link maintains sub-10ms state synchronization when paired with a matching unit for high-availability rack configurations.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full kit serial numbers against OEM hardware registry to identify counterfeit hardware; inspect Ethernet, RCU and CEX connector pins for transport deformation; log all unit serials and batch codes for full traceability records.
- Live Testing: Mount the unit to standard AC800M backplane, supply stabilized 24VDC bench power, load high-volume reference control logic, run continuous 24-hour ModuleBus I/O polling and RCU redundancy handshake cycling.
- Electrical Testing: Use Fluke 115 multimeter and insulation tester to verify chassis ground resistance below 0.5Ω and PCB insulation resistance above 10MΩ separating power and signal circuits.
- Firmware/Config Backup: Record exact installed firmware revision via Compact Control Builder, photograph DIP switch and SD card slot labels, export full project backup files to encrypted offline storage media.
- Final QC & Packaging: Clean PCB surfaces with anti-static solvent, seal CPU and terminator accessories in separate static shielding bags, attach printed QC test tag with technician ID and test timestamp before foam-lined carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Firmware builds newer than site Compact Control Builder version block RCU sync and ModuleBus scans; cross-check software compatibility matrix before flashing the unit.❗ RCU/CEX Terminator Omission: Skipping TB850 or TB853 terminators creates bus signal reflections that trigger intermittent communication faults; retain original terminators during disassembly.❗ DIP Switch/Jumper Errors: Mismatched rack node addressing splits control network traffic; capture high-resolution photos of original board switch layout prior to removing the old kit.❗ Power Draw Miscalculations: The full kit draws 10W continuous load; undersized rack power supplies produce undervoltage spikes during simultaneous cold startup of all rack modules.❗ ESD Dangers: Unwristed technician contact with exposed PCB traces causes silent memory chip damage; field service logs show ungrounded handling destroyed this assembly with over $3,000 in hardware and labor replacement costs.
4-step replacement guide:
- Pre-install: De-energize full rack, fit anti-static wrist strap, photograph wiring, Ethernet cabling, RCU link and DIP switch layout.
- Removal: Rotate slide-lock latches to release the old CPU, disconnect all serial, Ethernet, RCU and CEX wiring, extract CPU and original terminator accessories from the rack slot.
- Install: Seat the new unit’s backplane connector, lock mounting latches, mount supplied TB850/TB853 terminators, replicate original DIP switch settings and reterminate all communication cabling.
- Power-on Test: Restore rack power, upload matching firmware, execute full ModuleBus I/O scan and force manual primary/backup failover three times if operating a redundant rack layout.
FAQ (Frequently Asked Questions)
Q: How does this unit compare to PM866K01 for site upgrades?A: It provides 4x larger application RAM and faster boolean execution speed, supporting 2–3x more control variables and complex advanced control algorithms. Existing PM866 logic can be reused with matching firmware alignment, no full program rewrite required.
Q: Can the assembly be hot-swapped in a non-redundant single rack?A: Hot-swapping is unsupported for standalone racks. Removing the unit mid-operation drops all ModuleBus I/O and triggers full plant interlock trips; full rack power-down is mandatory for replacement. Single unit hot-swap is only permitted in fully paired redundant rack layouts.
Q: What warranty coverage applies to stocked kits?A: Factory-new OEM kits carry a 12-month manufacturer warranty covering the CPU and included terminator hardware. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from miswiring, ESD or overvoltage voids all coverage terms.
Q: Has ABB issued an official EOL notice for this kit?A: No formal end-of-life documentation exists; OEM maintains full production runs for existing System 800xA plant expansions and emergency breakdown maintenance spares.
Q: Will stored control logic transfer automatically after swapping the kit?A: Logic does not persist locally on the hardware. Back up the full project from the old assembly before removal, then re-download the complete program set to the new kit post-install; firmware mismatches corrupt upload sequences and break RCU synchronization.
Q: What communication interface cards are fully validated for pairing via CEX-Bus?A: Compatible accessories include CI854 Profibus DP, CI867 Modbus TCP, CI871 Ethernet/IP and CI801 RS485 serial adapters. Cross-reference the OEM hardware compatibility datasheet for full firmware pairing rules and maximum CEX module count limits.
Q: Is SIL3 safety functionality available out of the box?A: Base operation only delivers standard process control. SIL2/SIL3 compliance requires pairing each unit with an SM810/SM811 high integrity safety module; verify safety hardware sizing against plant hazard assessment documents.
