Description
Product Core Brief
- Model: PM866K01 3BSE050198R1
- Brand: ABB
- Series: AC800M / System 800xA
- Core Function: Single CPU kit with factory-matched TP830 baseplate to execute large-scale IEC 61131-3 logic and manage ModuleBus S800 I/O racks.
- Product Type: Single Processor Controller Kit (CPU + Baseplate Assembly)
- Key Specs: 450MHz PowerPC | 64MB RAM | Max 96 S800 I/O modules single rack
- Note: Active OEM production, factory new kits stocked as direct drop-in maintenance spares.
Key Technical Specifications
| Parameter | Value |
|---|---|

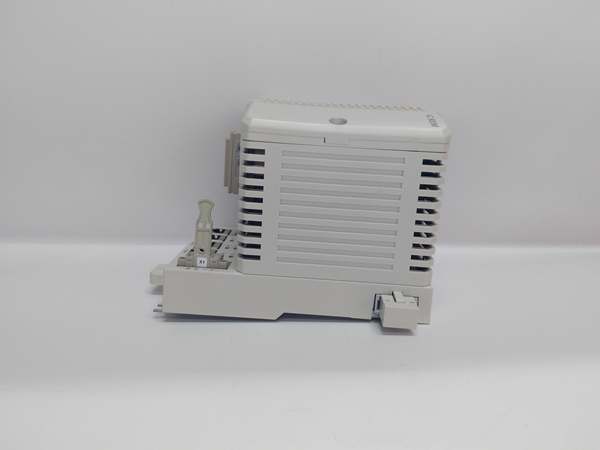

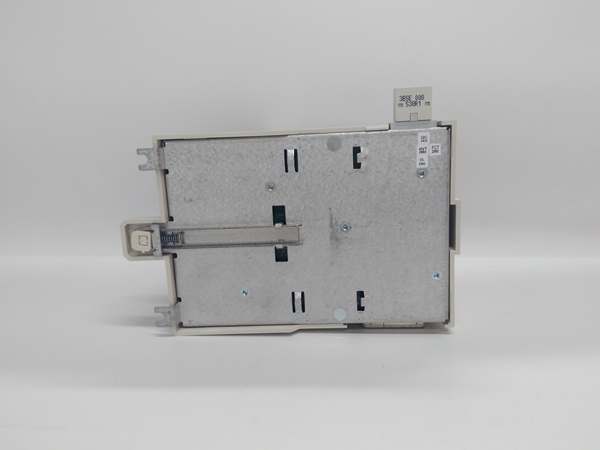

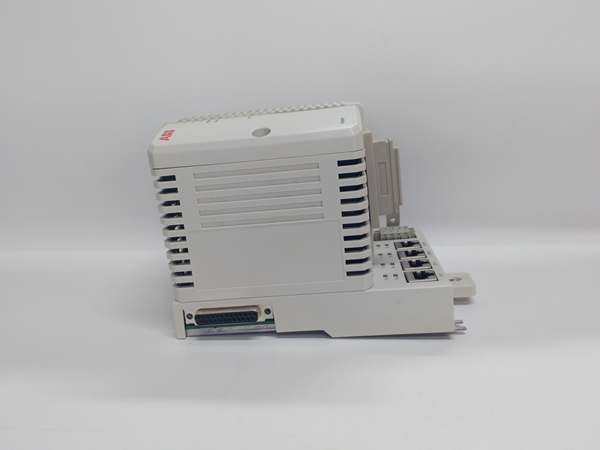

| Full Kit Contents | PM866 CPU Unit + TP830 baseplate assembly |
| Processor | 450 MHz MPC862P PowerPC |
| Application RAM | 64 MB real-time data memory |
| Onboard Flash Storage | 4 MB firmware flash + CompactFlash slot |
| Operating Supply | 24 VDC, 19.2 VDC – 30 VDC tolerance |
| Typical Power Dissipation | 10 W continuous draw |
| Max Supported I/O Modules | 96 (single mode); 84 (paired redundant mode) |
| Onboard Interfaces | 2× RJ45 Ethernet control network; 2× RS232C serial (COM3/COM4) |
| Supported Native Protocols | MMS, IAC, RNRP redundant Ethernet |
| Fieldbus Compatibility | Profibus DP, Modbus TCP via CI-series communication modules |
| Redundancy Switchover Latency | ≤10 ms bumpless primary/backup transfer |
| Operating Ambient Temp | 0 °C to +55 °C rack-mounted |
| Storage Temperature | -40 °C to +70 °C |
| Physical Dimensions | 186 mm H × 119 mm W × 135 mm D |
| Unit Weight (Full Kit) | 1.2 kg |
| Compliance Standards | IEC 61131-3, UL508, IP20, ISA 71.04 G3 corrosion rating |
Product Introduction
This pre-assembled kit ships with the matching baseplate required for rack mounting, eliminating separate baseplate procurement for AC800M DCS replacements. It runs large complex control logic for power, chemical and oil & gas facilities while handling high-density analog and digital I/O clusters over ModuleBus.
Dual isolated Ethernet ports support redundant control network topology without external switches, and the CompactFlash slot enables offline program backups to cut downtime during critical hardware failures.
QA & Testing SOP (Transparency Building)
- Incoming Inspection: Cross-reference full kit serial numbers against OEM registry to reject counterfeit hardware; inspect Ethernet ports, PCB traces and baseplate connectors for shipping abrasion or moisture exposure; log all batch codes for full traceability.
- Live Testing: Mount the assembly to standard AC800M backplane, supply stabilized 24VDC bench power, load full-scale reference project logic, run continuous 24-hour ModuleBus I/O handshake and network communication cycling.
- Electrical Testing: Use Fluke 115 multimeter and insulation tester to validate chassis ground resistance below 0.5Ω and PCB insulation resistance above 10MΩ between power and signal circuits.
- Firmware/Config Backup: Record exact installed firmware revision via Compact Control Builder, photograph DIP switch positions and baseplate MAC address labels, export project backup files to encrypted offline storage.
- Final QC & Packaging: Clean PCB surfaces with anti-static solvent, seal CPU and baseplate in separate static shielding bags, attach printed QC test tag with technician ID and test timestamp before foam-lined carton packaging.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Firmware Rev Mismatch: Flashing firmware newer than site Compact Control Builder version blocks ModuleBus scans and triggers permanent rack fault alarms; cross-check software compatibility matrix before powering the assembly.❗ Baseplate MAC Address Conflicts: Each TP830 baseplate carries a unique factory MAC label; mismatched network addressing breaks control network traffic; retain original baseplate MAC records before swap.❗ DIP Switch/Jumper Errors: Mismatched rack node addressing splits bus communication; capture high-resolution photos of original board switch layout prior to dismounting the old kit.❗ Power Draw Miscalculations: The full kit draws 10W continuous load; undersized rack power supplies produce undervoltage spikes during simultaneous cold startup of all rack modules.❗ ESD Dangers: Unwristed technician contact with exposed PCB traces causes silent CPU gate damage; multiple field incidents show ungrounded handling destroyed this assembly variant with over $2,000 in hardware and labor replacement costs.
4-step replacement guide:
- Pre-install: De-energize full rack, fit anti-static wrist strap, photograph wiring, Ethernet cabling and DIP switch layout.
- Removal: Rotate slide-lock latches to release the old CPU from its baseplate, disconnect all serial, Ethernet and ModuleBus wiring, slide the full assembly out of the rack slot.
- Install: Seat the new kit’s baseplate to the backplane rail, lock mounting latches, replicate original DIP switch settings and reterminate all field communication cabling.
- Power-on Test: Restore rack power, upload matching firmware, execute full ModuleBus I/O scan and force manual failover test if running redundant rack configuration.
FAQ (Frequently Asked Questions)
Q: What separates this kit from sourcing a standalone PM866 CPU without baseplate?A: The unit ships pre-mated with a factory-calibrated TP830 baseplate that carries a permanent unique MAC address. Sourcing CPU and baseplate separately requires bench pairing and network reconfiguration, adding 2–4 hours of on-site commission labor.
Q: Can the assembly be hot-swapped in a non-redundant single rack?A: Hot-swapping is unsupported for standalone racks. Removing the kit mid-operation drops all ModuleBus I/O and triggers full plant interlock trips; full rack power-down is mandatory for replacement. Single unit hot-swap is only permitted in fully paired redundant rack layouts.
Q: What warranty coverage applies to stocked kits?A: Factory-new OEM kits carry a 12-month manufacturer warranty covering both CPU and baseplate. Bench-tested surplus inventory ships with a 6-month functional warranty; physical damage from miswiring, ESD or overvoltage voids all coverage terms.
Q: Has ABB issued an official EOL notice for this kit?A: No formal end-of-life documentation exists; OEM maintains full production runs for existing System 800xA plant expansions and emergency breakdown maintenance spares.
Q: Will stored control logic transfer automatically after swapping the kit?A: Logic is not stored locally on the hardware. Back up the full project from the old assembly before removal, then re-download the complete program set to the new kit post-install; firmware mismatches corrupt upload sequences.
Q: What communication interface cards are fully validated for pairing?A: Compatible accessories include CI854 Profibus DP, CI867 Modbus TCP, CI871 Ethernet/IP and CI801 RS485 serial adapters. Cross-reference the OEM hardware compatibility datasheet for full firmware pairing rules.
Q: Is SIL3 safety functionality available out of the box?A: Base operation only delivers standard process control. SIL2/SIL3 compliance requires pairing each kit with an SM810/SM811 high integrity safety module; verify safety hardware sizing against plant hazard assessment documents.
