Description
Key Technical Specifications
- Model Number: ABB PM861A 3BSE018157R1
- Manufacturer: ABB Industrial Automation Division
- CPU Architecture: 32-bit ARM Cortex-A9 dual-core, 800MHz clock speed
- Memory Configuration: 2GB DDR3 RAM (volatile), 4GB eMMC flash (non-volatile)
- Redundancy Support: 1+1 hot-standby (automatic failover <5ms), sync via dedicated backplane link
- Communication Ports: 2 × 10/100/1000Mbps Ethernet (Profinet/Modbus TCP), 1 × RS485 (Modbus RTU)
- Protocol Support: IEC 61850 (GOOSE/MMS), Profinet IO, Modbus TCP/RTU, OPC UA
- Power Supply: 24VDC ±10%, 0.8A typical current draw (no load)
- Operating Temperature: -25°C to +65°C (-13°F to +149°F)
- Isolation Rating: 1kV AC (Ethernet ports to backplane); 500V AC (signal to power)
- Compatibility: ABB AC800M I/O modules (AI810, AO810, DI810), Advant OCS racks, Control Builder M software
- Mechanical Design: Rack-mount (3U height), conformal-coated PCB, metal housing (IP20)
- Certifications: IEC 61010-1, CE, UL 508, RoHS 2.0, ATEX Zone 2

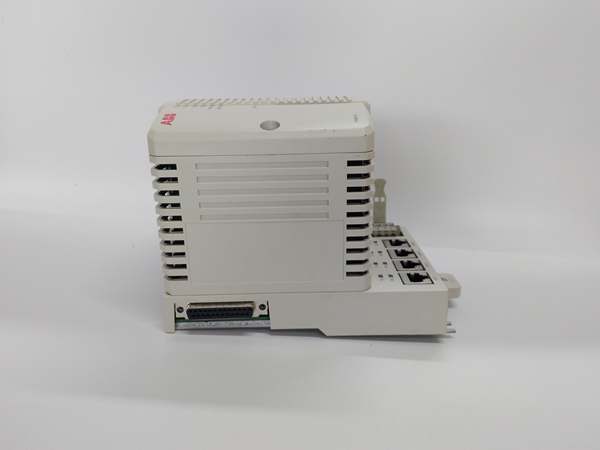

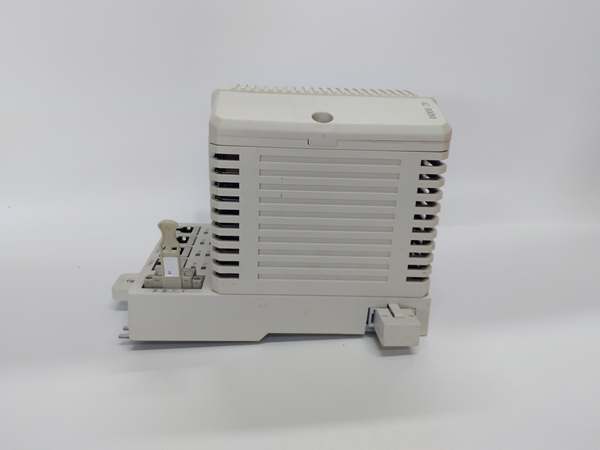

ABB PM861A 3BSE018157R1
Field Application & Problem Solved
In mid-scale process automation—refinery distillation units, chemical batch reactors, paper mill drying sections—generic CPUs struggle with two critical flaws: insufficient processing power for complex control loops and unreliable redundancy. A Texas chemical plant lost $160k in off-spec batches when a budget CPU couldn’t handle 60 concurrent PID loops, causing scan time overruns (150ms vs. required 50ms) and delayed control responses. Legacy controllers also lack seamless integration with ABB I/O modules: a Wisconsin paper mill spent 8 hours troubleshooting communication errors between a third-party CPU and AC800M I/O, delaying startup by a day.
You’ll find this module as the “brain” of AC800M DCS racks in mid-sized process plants: benzene distillation units in Louisiana, batch reactors in Ohio, and paper machine control systems in Minnesota. Its core value is balanced performance + ABB-native reliability. The dual-core 800MHz processor fixed the Texas plant’s scan time issues, cutting loop execution to 35ms and eliminating off-spec batches. At the Wisconsin mill, the PM861A’s plug-and-play compatibility with AC800M I/O eliminated communication errors, reducing commissioning time by 70%.
For a Florida wastewater treatment plant, the 1+1 redundancy design prevented a $90k outage when a CPU failed during a storm—failover occurred in 4ms, no process disruption. Its multi-protocol support also simplified integration with legacy Modbus sensors and new Profinet VFDs, avoiding $40k in gateway hardware costs.
Installation & Maintenance Pitfalls (Expert Tips)
- Firmware Version Lock—Match to I/O Modules: Rookies use outdated CPU firmware (pre-v6.0) with newer I/O modules (v7.0+), causing communication drops. A North Carolina refinery did this, losing 3 hours of production when DI810 inputs failed to register. Update firmware via Ethernet using Control Builder M v6.10+; always verify CPU and I/O firmware are within ±1 version (check ABB’s compatibility matrix).
- Redundancy Sync Cable—Use ABB-Certified Cabling: Generic Ethernet cables for redundancy sync cause failover failures. A Pennsylvania chemical plant used Cat5e instead of ABB’s 3BSE030220R1 Cat6 cable; the standby CPU failed to sync, triggering a 2-hour shutdown. Use only ABB-certified sync cables (max length 2m) and secure with strain relief—loose connections break sync.
- Overloading CPU Memory—Limit Unnecessary Tasks: Loading unused function blocks or large historical logs fills flash memory, slowing performance. A Michigan paper mill’s CPU slowed to 200ms scan time after storing 3 years of raw data. Archive historical data to a separate server, delete unused function blocks, and keep flash usage <70% (monitor via DCS diagnostics).
- Grounding—Dedicated Path to Cabinet Ground Bar: Daisy-chaining the CPU’s ground to power modules introduces EMI, corrupting analog signals. A Colorado mining plant’s pressure sensor readings fluctuated by 15% until we ran a 4mm² dedicated ground wire from the CPU chassis to the main ground bar. Never share the CPU’s ground with high-power components (VFDs, power supplies).

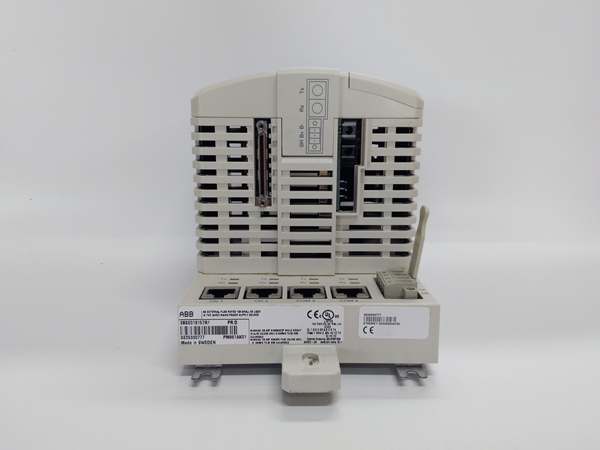

ABB PM861A 3BSE018157R1
Technical Deep Dive & Overview
The ABB PM861A 3BSE018157R1 is a mid-range process CPU module engineered for ABB’s AC800M DCS, balancing performance and reliability for mid-scale control applications. At its core, a dual-core ARM Cortex-A9 processor splits tasks between control logic (first core) and communication/protocol processing (second core)—eliminating bottlenecks that plague single-core CPUs. The 2GB RAM supports up to 1,000 PID loops and 10,000 I/O points, while 4GB flash stores firmware, application code, and critical process data (with built-in wear leveling for 10-year lifespan).
Redundancy is managed via a dedicated backplane sync link: the primary CPU transmits real-time data (loop setpoints, I/O status, alarms) to the standby unit at 1ms intervals. If the primary detects a fault (CPU error, power loss, communication failure), the standby takes over in <5ms—faster than the AC800M I/O’s data hold time, ensuring no process disruption.
The module’s multi-protocol support (IEC 61850, Profinet, Modbus) enables seamless integration with legacy and modern devices, eliminating the need for external gateways. Ruggedization features include a conformal-coated PCB (resisting dust, moisture, and chemical vapors) and a wide operating temperature range (-25°C to +65°C), ideal for unconditioned control cabinets.
What sets it apart from generic CPUs is ABB’s ecosystem integration: it’s optimized for Control Builder M software (drag-and-drop logic programming) and AC800M I/O modules, reducing integration errors. For mid-scale plants where downtime costs $12k+/hour, this module isn’t just a CPU—it’s a reliable, scalable control core that keeps processes running smoothly while simplifying maintenance and expansion.
