Description
Product Introduction

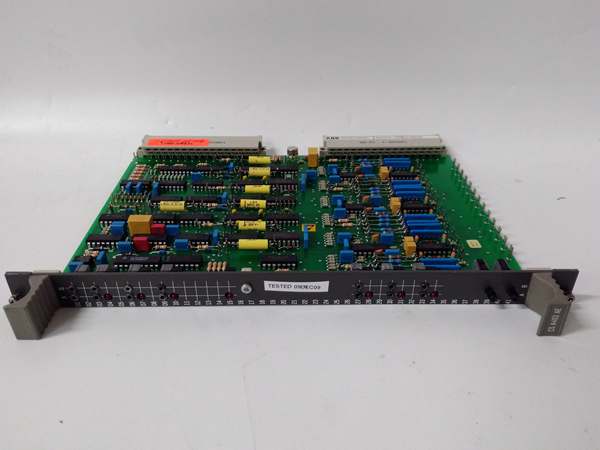

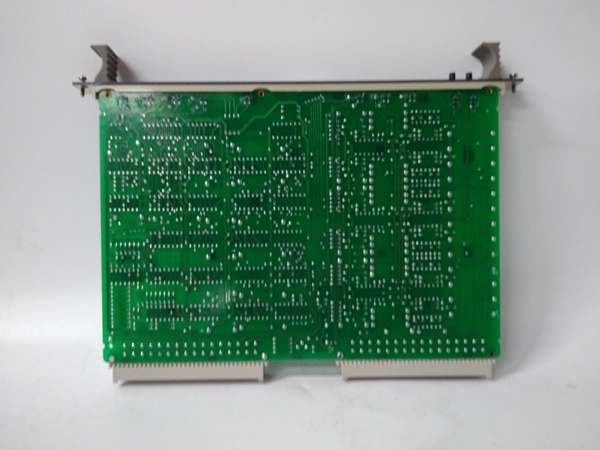

The ABB (commonly associated with UDA327 AE01) is a communication and process control module designed for ABB’s AC800M and S900 distributed I/O architectures. It acts as the interface layer, managing real-time data exchange between the controller processor and fieldbus networks like Profibus DP or Modbus.
This module, ABB , integrates signal conditioning and electrical isolation to protect the backplane from field-side surges. It typically draws ~10 W from the 24 Vdc backplane. Execution of control algorithms happens at the module level, reducing scan time on the main CPU.
Key Technical Specifications
- Supply Voltage: 24 Vdc (Backplane Powered, Range 18–32 Vdc)
- Power Consumption: ~10 W (Typical, verify with OEM datasheet)
- Operating Temp: -20 to 70 °C (-4 to 158 °F)
- Storage Temp: -40 to 85 °C
- Protocols: Modbus, Profibus DP, DeviceNet (Configuration Dependent)
- Isolation: Field-side to System-side (Optical/Transformer)
- Mounting: Procontrol P14 / Standard DIN Rail (System Dependent)
- Indicators: PWR, RUN, FAULT, Channel Status LEDs
- Hot Swap: Supported (On compatible carriers)
- Humidity: 5%–95% RH, non-condensing
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Match the ABB serial number against the shipping manifest. Inspect the gold-plated backplane fingers for oxidation or socket insertion scars. Check LED lenses for cracks.
- Live Functional Test: Seat the module in a live AC800M rack (or test rig). Monitor the RUN and COMMS LEDs. Execute a cyclic I/O stress test for >24 hrs, logging packet loss—we look for zero dropped frames under load.
- Electrical Parameter Test: Measure backplane current draw with a Fluke 115 under idle and full-load states. Hit the field terminals with a 500 V Megger; isolation to chassis must hold >10 MΩ.
- Firmware Verification: Connect via Control Builder M. Read the hardware key and firmware revision. Photograph the DIP switch block (if equipped) for the commissioning record—well, technically newer revisions are soft-configured via firmware.
- Final QC & Packaging: Clean the connector fingers with contact cleaner. Wrap in conductive anti-static foam. Label “QC Passed – Live Tested” with the date before boxing.
Replacement Pitfall Guide
❗ Firmware Revision Mismatch: Swapping an ABB into an older AC800M rack requires matching the firmware family. A v6.0 module in a v5.1 rack triggers a “HW Incompatible” fault and locks the controller.
❗ Termination Resistors: For Profibus/RS485 networks, the module location dictates jumper settings. Forgetting to enable the 220Ω termination resistor on the last node causes intermittent bus timing errors.
❗ Backplane Seating: The dual-lever ejectors require a firm, even push. “Half-seated” modules pass the LED self-test but drop offline under cabinet vibration—check the engagement latches visually.
❗ Power Budget: Drawing ~10 W, this module adds heat. Calculate your 24 Vdc PS current with 20% headroom; voltage sag below 18 Vdc causes the RTA handshakes to time out.
❗ ESD to Logic: The backplane fingers are unprotected. Discharge to the rack ground before insertion, especially in dry shop environments—though your mileage may vary on static control mats.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- ABB → ABB HIEE400316R2 (UDA327 AE02) : Direct — Newer revision, verify firmware alignment
- ABB → ABB PM856/PM860 : Direct — Plugs into AC800M local I/O or expansion racks
- ABB → Generic Profibus DP Slave : Incompatible — Requires GSD file mapping and specific parameterization
- Scan Cycle Impact: < 0.5 ms added latency (Module-level processing active)
- Data Throughput: 12 Mbps (Profibus DP-V1 standard)
- Isolation Rating: 2500 Vrms (Field to Logic, 1 min withstand)
