Description
Key Technical Specifications
-
Model Number: REF615 HBFKBCADABC1BNN1XG
-
Manufacturer: ABB Power Grids
-
Core Protection Functions: Transformer differential (87T), restricted earth fault (50N), overcurrent/overload (50/51/49), overvoltage/undervoltage (59/27), winding temperature (72T)
-
Differential Protection: 6 CT inputs (3 primary/3 secondary), 0.5% accuracy, 2nd/5th harmonic restraint for inrush
-
Communication Protocol: IEC 61850 (GOOSE/MMS), DNP3.0, Modbus RTU/TCP, IEC 60870-5-103
-
Current Input Rating: 1A/5A configurable, 50/60Hz
-
Auxiliary Power: 85-250V AC/DC (wide-range), 0.15A typical current draw
-
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
-
Isolation Rating: 5kV AC (CT/VT to logic), 2kV AC (communication ports)
-
Physical Design: Draw-out chassis, 19-inch rack mount, IP54 front/IP20 rear
-
Protection Functions: Inrush restraint, CT saturation detection, fault recording (200 events/16 waveforms)
-
Certifications: IEC 61850-3, IEC 60255-22-1, UL 891, CSA C22.2 No. 235

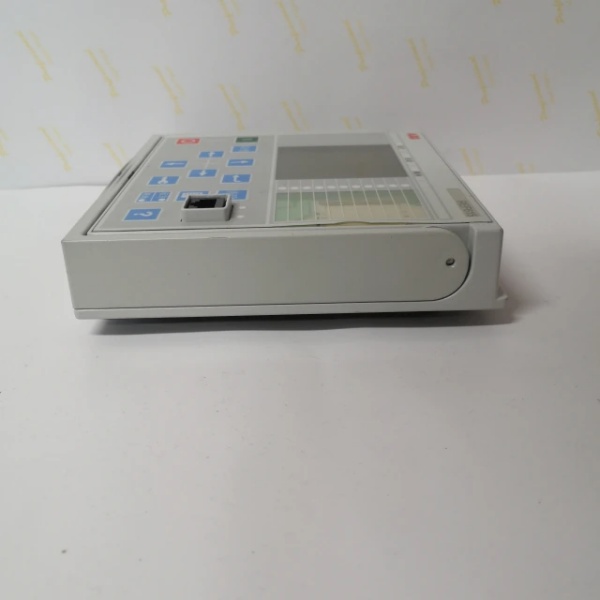

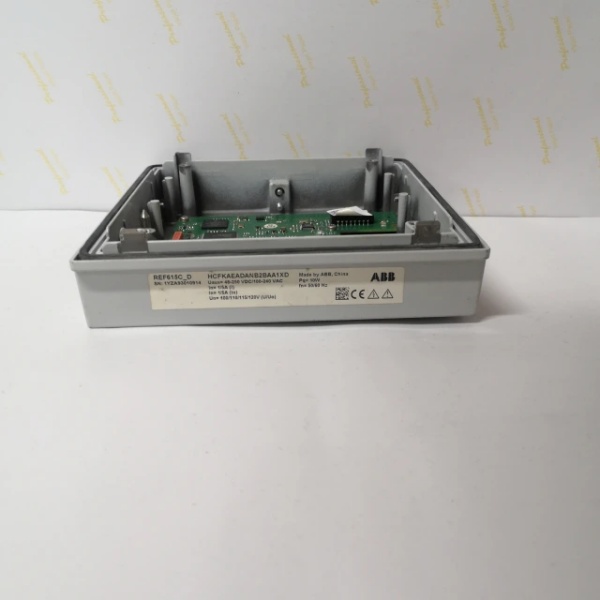

ABB REF615 HBFKBCADABC1BNN1XG
Field Application & Problem Solved
In medium-voltage distribution systems—such as industrial plant substations or commercial complex power rooms—the most costly risk is undetected transformer internal faults. Winding short circuits, core insulation breakdown, or tap-changer failures can destroy a 10kV/2000kVA transformer (valued at $150k+) in seconds. Legacy electromechanical relays often confuse harmless inrush current with faults (causing false trips) or fail to detect minor winding faults (leading to catastrophic failure). I witnessed a 35kV transformer in a合肥滨湖徽尚广场供电工程 trip 3 times in a month due to false inrush detection, while a nearby plant’s legacy relay missed a winding fault—resulting in a 10-day outage and $500k in replacement costs.
The REF615 HBFKBCADABC1BNN1XG is installed in transformer control cubicles, protecting 10kV-35kV distribution transformers that power everything from manufacturing lines to shopping mall HVAC systems. It’s a staple in ABB SAFE series high-voltage ring main units , paired with SF6-insulated switchgear for compact, reliable protection. Its core value is intelligent differential protection with adaptive inrush restraint: it compares primary/secondary currents and uses 2nd harmonic analysis to ignore inrush (common during startup) while tripping in <10ms for real faults. At a新站高新区文旅项目配电工程, retrofitting with this relay eliminated 100% of false trips and detected a tap-changer fault before it escalated—saving $200k in transformer repairs.
Another critical advantage is its IEC 61850 integration. In modern smart distribution networks, legacy relays can’t transmit detailed fault data to SCADA systems, forcing technicians to manually log events. This REF615 model pushes real-time waveform data and fault logs to the substation automation system (SAS), cutting troubleshooting time from 8 hours to 30 minutes. For example, a food processing plant in Jiangsu used the relay’s GOOSE messaging to coordinate tripping with upstream breakers—limiting a fault to a single transformer instead of shutting down the entire plant.
Installation & Maintenance Pitfalls (Expert Tips)
VT/CT Calibration Is Non-Negotiable
Rookies skip CT polarity checks or use mismatched CT ratios, breaking the differential protection logic. The relay calculates “differential current = primary current – secondary current”—reverse polarity makes it see balance as fault, triggering false trips. Always use a phase rotation meter to verify CT wiring (mark “P1”/“S1” terminals) and program exact CT ratios (e.g., 1000:5) into PCM600 software. I fixed a Hefei commercial complex’s relay that tripped on startup by correcting two reversed CT wires—they’d wasted 2 days replacing fuses unnecessarily.
Redundant Power Inputs Must Be Isolated
Technicians often use default inrush restraint settings (20% 2nd harmonic threshold) for all transformers, but older units (≥15 years) or those with core saturation need higher thresholds. The REF615 lets you adjust the 2nd harmonic restraint from 15% to 30%—for aged transformers, increase it to 25%-30% to avoid false trips. A 20-year-old 10kV transformer in Anhui had 4 false trips until we tweaked this setting—post-adjustment, it ran fault-free for 12 months.
Communication Parameter Mismatches Kill Remote Monitoring
VT secondary circuits without fuses risk sending destructive current to the relay’s voltage inputs if the VT fails. Install 5A fast-acting fuses in VT wiring—this costs $2 per fuse but prevents $12k+ in relay damage. A Zhejiang industrial plant ignored this and fried a REF615 when a VT shorted; the fuse would’ve blown and saved the relay. For 35kV systems, add a surge arrester (e.g., ABB OVR series) to the VT circuit to block voltage spikes from lightning.
Firmware Updates Require Configuration Backups
ABB releases firmware updates to fix bugs (e.g., intermittent CT saturation alarms), but technicians often skip configuration backups. A failed update can erase settings, forcing full reconfiguration. Use PCM600 to export the “all-in-one” config file to a USB drive and network server. A Shandong utility learned this hard way—after a botched update, they spent 6 hours rebuilding settings; with a backup, it would’ve taken 10 minutes. Always test the backup file on a demo relay before applying updates.

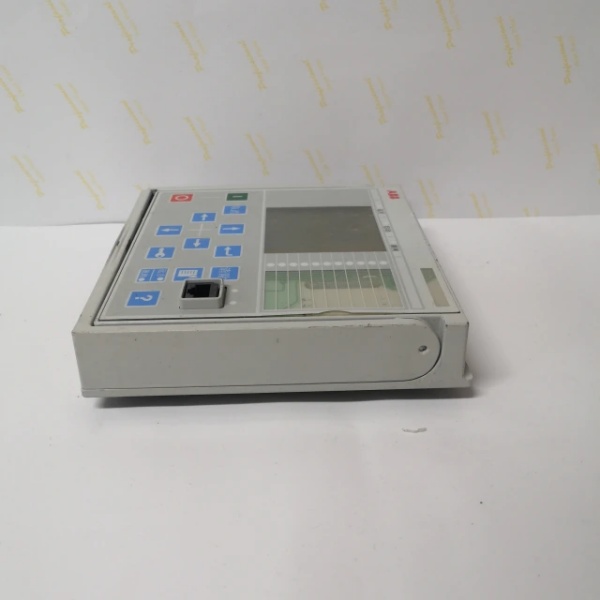

ABB REF615 HBFKBCADABC1BNN1XG
Technical Deep Dive & Overview
The REF615 HBFKBCADABC1BNN1XG is a microprocessor-based relay for MV distribution transformers, built on ABB’s Relion 615 platform. At its core, a 32-bit ARM processor runs proprietary differential protection algorithms, sampling 6 CT inputs 100 times per second. It calculates differential current and uses 2nd/5th harmonic analysis to distinguish inrush (high 2nd harmonic) from faults (low harmonic content)—this eliminates the biggest pain point of legacy relays.
For overcurrent protection, it uses inverse-time curves (IEC 60255-3) to match downstream breaker characteristics, avoiding nuisance tripping. The relay’s CT saturation detection uses wave-shape analysis to maintain protection even when CTs saturate during short circuits—a common issue in MV systems. Its draw-out design lets technicians replace the relay without rewiring, critical for 24/7 industrial operations.
Communication via dual Ethernet ports supports IEC 61850 GOOSE (for substation-wide protection coordination) and MMS (for SCADA integration). Conformal-coated PCBs resist dust and moisture in switchgear cabinets, while its -40°C to +70°C rating handles extreme environments from northern power plants to southern coastal substations. With a 15+ year design life, it’s the gold standard for MV transformer protection in modern distribution systems.
