GFD212A: Product Overview
The module occupies a dedicated slot in an ABB DCS or PLC rack and serves as the interface between analog current loops and the digital control system. It continuously samples the primary current signals, digitizes them with a high‑resolution ADC, and makes the data available to the host controller for real‑time control actions. In addition to measurement, the unit can generate a corrective output current, enabling closed‑loop regulation of devices such as excitation systems, motor drives, or pump controllers. The module belongs to ABB’s Current‑Control (CC) family, which shares a common hardware platform, firmware architecture, and configuration tools across all CC products. This commonality simplifies system engineering, reduces spare‑part inventories, and ensures consistent performance when scaling from a single channel to multi‑channel installations.
GFD212A: Technical Specifications
- Model Number: GFD212A
- Manufacturer: ABB
- Product Type: Dual‑Channel Current Control & Measurement Module
- Bandwidth: 60 MHz (continuous)
- Equivalent Sampling Rate: 25 GS/s (effective)
- Actual Sampling Rate: 500 MS/s
- Waveform Storage Depth: 1 M points per channel
- Input Impedance: 1 ± 2 % µΩ
- Probe Attenuation Options: 1 × , 10 × , 100 × , 1000 ×
- Channel Isolation: > 40 : 1
- Time Delay: 150 ps (typical)
- Measurement Accuracy: ±0.5 % FS
- Power Supply: 24 V DC (internal DC‑DC conversion)
- Communication Interface: RS‑485, Modbus‑RTU (optional Ethernet/Modbus‑TCP on select variants)
- Operating Temperature: –20 °C to +60 °C (storage –40 °C to +80 °C)
- Physical Dimensions: 219 mm × 88 mm × 44 mm (W × H × D)
- Weight: 2 kg
- Ingress Protection: IP20 (indoor mounting)

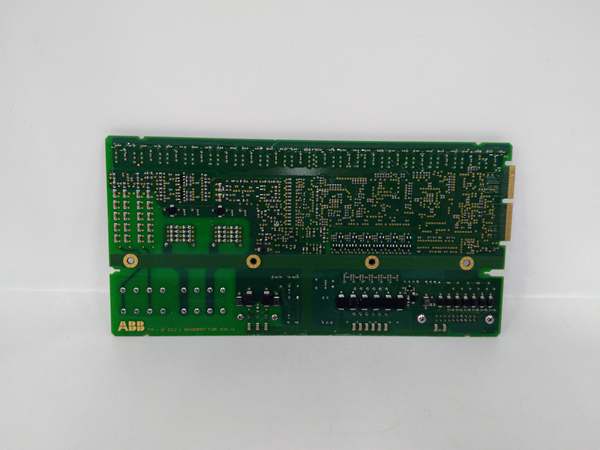

ABB GFD212A
Core Features & Customer Value
High‑Resolution Sampling and Low Latency – The 25 GS/s equivalent sampling capability captures rapid current transients with a 150 ps processing delay. Engineers can rely on accurate waveform data for fault analysis and protective relaying, reducing the risk of missed events that could lead to equipment damage.
Dual‑Channel Independent Measurement – Two isolated channels allow simultaneous monitoring of separate current loops, such as excitation and load currents, without cross‑talk. This independence simplifies wiring, shortens loop lengths, and improves diagnostic clarity when troubleshooting complex power systems.
Integrated Closed‑Loop Regulation – Beyond passive measurement, the module can output a corrective current based on the host controller’s algorithm. This eliminates the need for separate analog regulators, lowering component count and overall system cost while providing tighter control of process variables.
Standardized Communication – Modbus‑RTU over RS‑485 offers plug‑and‑play integration with most ABB DCS and third‑party PLC platforms. The optional Ethernet option enables higher‑speed data exchange for systems that require real‑time networked monitoring. Consistent protocol support reduces engineering effort during system design and commissioning.
Robust Industrial Design – Rated for –20 °C to +60 °C operation and built with industrial‑grade components, the module tolerates the temperature swings and electrical noise typical of power generation and process environments. Its IP20 rating and compact footprint facilitate installation in crowded control cabinets, helping maintain a tidy, service‑friendly layout.

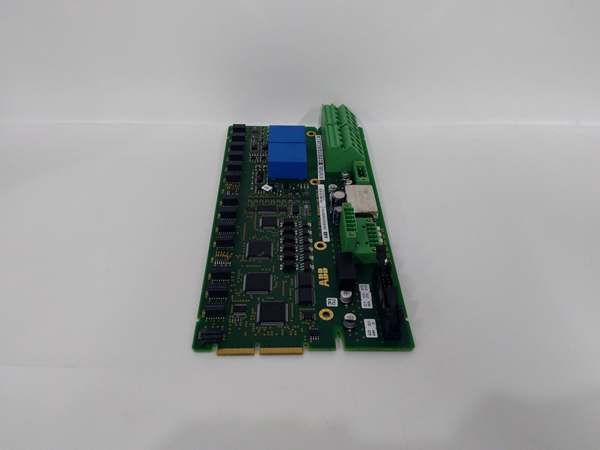

ABB GFD212A
Typical Applications
In a combined‑cycle power plant, the module is installed in the excitation control rack of the turbine generator. It measures the field current and provides a rapid feedback signal to the excitation regulator, ensuring voltage stability during load changes and preventing over‑excitation that could stress the stator windings.
Within a large‑scale petrochemical complex, the device monitors the current of critical pump drives in a refinery’s crude distillation unit. By capturing transient overloads and feeding the data to the plant’s safety instrumented system (SIS), operators receive early warnings of pump motor stress, allowing pre‑emptive maintenance before a failure occurs.
In industrial water‑treatment facilities, the module regulates the current to variable‑frequency drives that control dosing pumps. The closed‑loop capability maintains precise flow rates despite variations in supply voltage, improving chemical dosing accuracy and reducing reagent consumption.
For railway traction power substations, the unit measures the current drawn by multiple traction converters. Its high‑bandwidth sampling detects short‑duration fault currents, enabling the substation protection scheme to isolate faulty converters within milliseconds, thereby protecting downstream equipment and maintaining service continuity.
