Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ABB CI867K01 3BSE043660R1 |
| Manufacturer | ABB |
| Product Category | Communication Interface Module |
| Compatibility | AC 800M Controller Family |
| Protocol Support | Ethernet/IP, Modbus TCP |
| Port Configuration | 2x 10/100/1000 Mbps RJ45 |
| Isolation Voltage | 1500V AC |
| Power Consumption | 5W typical |
| Operating Temp | -25°C to +70°C |
| Dimensions | 60 × 120 × 25 mm |
| Weight | 250g |
| Certifications | UL, CE, cUL, IEC 61131-2 |

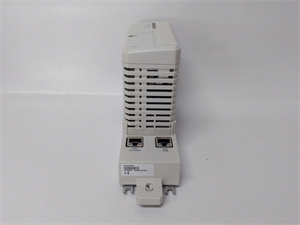

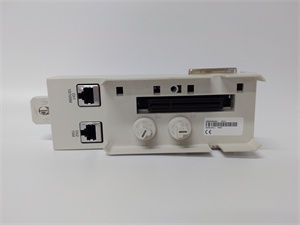

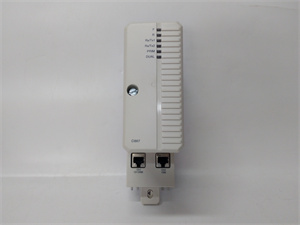

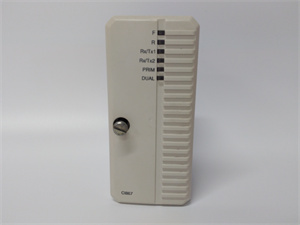

ABB CI867K01 3BSE043660R1
Product Introduction
The ABB CI867K01 3BSE043660R1 is a high-performance Ethernet/IP communication interface designed for ABB’s AC 800M process controllers. This industrial-grade module enables seamless integration between ABB control systems and Ethernet/IP compatible devices, providing reliable data exchange in demanding automation environments.
As part of ABB’s communication portfolio, the CI867K01 serves as a critical link in modern industrial networks, supporting both cyclic and explicit messaging for real-time control and configuration. The module’s dual-port design allows for daisy-chaining of devices or redundant network configurations, enhancing system reliability.
The ABB CI867K01 3BSE043660R1 is particularly valuable in applications requiring integration with Rockwell Automation devices or other Ethernet/IP enabled equipment. Its robust construction and advanced diagnostics make it suitable for continuous process industries, manufacturing, and power generation applications.
Core Advantages and Technical Highlights
High-Speed Industrial Networking:
The ABB CI867K01 features dual Gigabit Ethernet ports supporting 10/100/1000 Mbps operation, ensuring high-bandwidth communication with connected devices. The module’s optimized Ethernet/IP stack delivers deterministic performance for real-time control applications.
Flexible Protocol Support:
In addition to native Ethernet/IP, the CI867K01 supports Modbus TCP protocol, enabling connectivity with a wide range of industrial devices. The module can simultaneously handle multiple connection types, including Class 1 (implicit) and Class 3 (explicit) messaging.
Robust Industrial Design:
Engineered for harsh environments, the module operates reliably across a wide temperature range (-25°C to +70°C) and withstands vibration up to 2g. The 1500V AC isolation between network and controller ensures noise immunity in electrically noisy installations.
Advanced Diagnostics:
Comprehensive status LEDs and integrated web server provide real-time monitoring of network health and performance. The ABB CI867K01 supports SNMP for network management integration and offers detailed diagnostic information through ABB’s Automation Builder engineering tool.
Easy Integration:
The module’s plug-and-play design simplifies installation in AC 800M controller racks. Automatic device discovery and configuration tools reduce commissioning time, while the built-in switch functionality eliminates the need for external network hardware in star topologies.
ABB CI867K01 3BSE043660R1
Typical Application Scenarios
Automotive Manufacturing:
In production lines, the ABB CI867K01 connects AC 800M controllers to Rockwell PLCs and variable frequency drives, enabling synchronized operation of robotic cells and conveyor systems.
Food & Beverage Processing:
The module integrates packaging machines with process control systems, providing real-time data exchange for batch tracking and quality control.
Pharmaceutical Production:
GMP-compliant facilities utilize the CI867K01 to connect isolators and filling machines with the central control system while maintaining data integrity requirements.
Water Treatment Plants:
The module serves as a communication gateway between process controllers and remote pump stations, enabling efficient plant-wide monitoring and control.
Oil & Gas:
In pipeline applications, the ABB CI867K01 provides reliable communication between compressor stations and the central SCADA system, even in remote locations with challenging environmental conditions.
Related Model Recommendations
ABB CI867K02: Enhanced version with additional protocol support
ABB CI854: PROFIBUS DP communication module
ABB CI871: PROFIBUS DP-V1 interface
ABB MB810: Modbus RTU communication module
ABB COM620: Cybersecurity gateway
ABB S800 I/O: Remote I/O system for field connectivity
ABB PM865K01: High-performance processor module
Installation & Commissioning
Installation Guidelines:
Mount the ABB CI867K01 in an available slot of the AC 800M controller rack, ensuring proper alignment with the backplane connector. Use shielded Ethernet cables with industrial-grade RJ45 connectors for all network connections. Maintain proper cable bend radius and strain relief.
Commissioning:
Configure the module using ABB’s Automation Builder software. Set appropriate IP addresses and establish connection parameters for each Ethernet/IP device. Verify network topology and perform communication tests with all connected devices before system activation.
Maintenance:
Regularly inspect network connections for physical damage. Monitor port statistics for error conditions. Update firmware during planned maintenance windows to ensure access to the latest features and security patches.
Service & Warranty
ABB provides a 36-month warranty for the CI867K01, covering manufacturing defects. Global technical support is available 24/7 through ABB’s network of automation specialists. The product is supported by ABB’s lifecycle management program, with firmware updates and spare parts guaranteed for 10 years after product discontinuation.
Conclusion
The ABB CI867K01 3BSE043660R1 delivers reliable, high-performance Ethernet/IP connectivity for industrial automation systems. Its combination of protocol support, network flexibility, and robust design makes it an ideal solution for integrating ABB control systems with Ethernet/IP devices in demanding industrial environments. For specific application requirements or configuration assistance, consult ABB’s communication experts.
