Description
Key Specifications Table
| Parameter | Specification |
| Model | ABB AO810V2 |
| Type | 8-Channel Analog Output |
| Output Signals | 4-20mA, 0-20mA, ±10V, 0-10V |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Load Capacity | ≤500Ω (current), ≥1kΩ (voltage) |
| Update Rate | 10ms per channel |
| Isolation | Channel-to-channel & system isolation |
| Power Supply | 24VDC (±10%) via backplane |
| Operating Temp | -25°C to +70°C |
| Dimensions | 120 × 30 × 110mm |
| Compatibility | ABB AC 800M, S800 I/O |

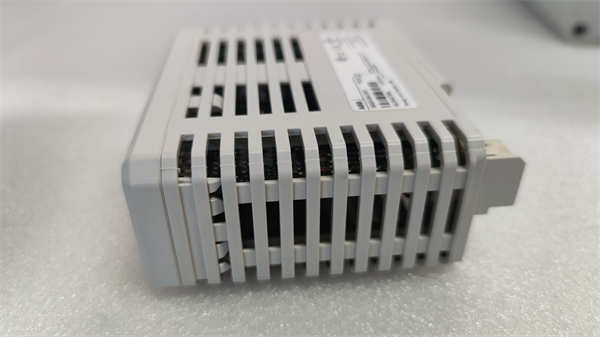

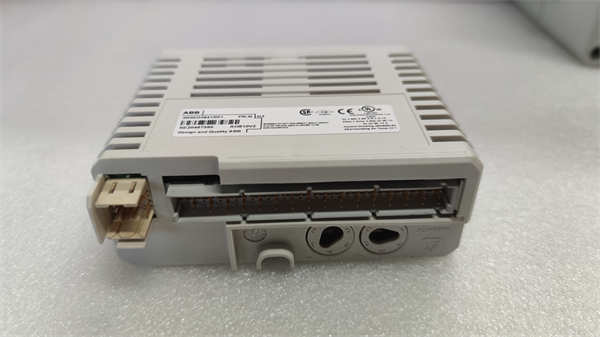

ABB AO810V2
Product Description
The ABB AO810V2 represents the next evolution in precision analog output modules, offering enhanced performance for critical control applications. As part of ABB’s S800 I/O family, this 8-channel module delivers exceptional signal accuracy and stability for demanding industrial environments.
Building upon the proven AO810 design, the V2 version introduces improved thermal stability and faster response times, making it particularly suitable for modern process control systems requiring high-speed, precise analog outputs. The module maintains seamless integration with ABB’s AC 800M controllers while offering backward compatibility with existing installations.
Technical Advantages
Enhanced Performance:
25% faster update rates compared to previous versions
Reduced warm-up drift for immediate operational readiness
Advanced diagnostics for predictive maintenance
Flexible Configuration:
Software-selectable output ranges per channel
Individual channel activation/deactivation
Custom scaling capabilities via Control Builder
Robust Design:
Extended temperature range operation
Reinforced EMI/RFI protection
Vibration-resistant component mounting
Smart Features:
Built-in signal continuity monitoring
Open wire detection for current outputs
Output current limiting protection

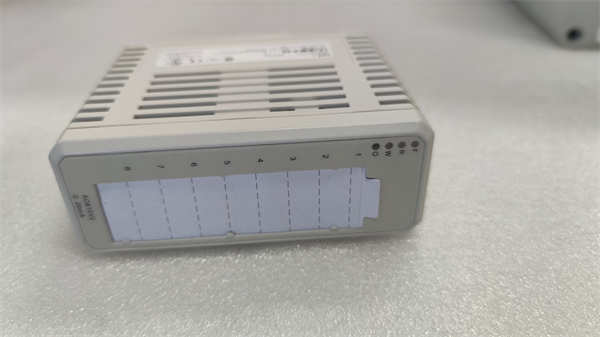

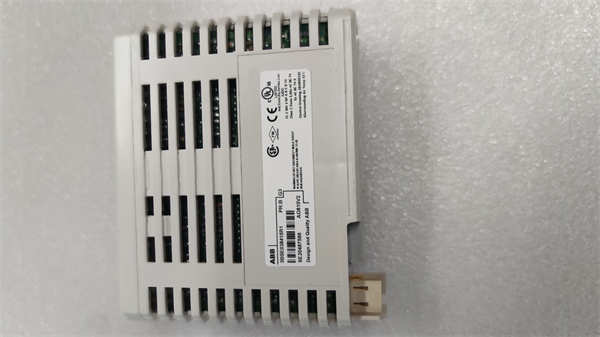

ABB AO810V2
Industry Applications
Process Control:
Final control element actuation (valves, dampers)
Variable speed drive control signals
Continuous process regulation
Power Generation:
Turbine governor control
Excitation system interfaces
Load distribution systems
Manufacturing:
Precision motion control
Analog positioning systems
Quality control equipment
Recommended Complementary Products
AI810V2 – Matching analog input module
CI854 – PROFIBUS communication interface
SD822 – Digital input for status monitoring
TA810 – Terminal assembly module
PM864 – Process controller module
Installation & Maintenance
Mounting:
Install on standard S800 I/O baseplate
Allow minimum 25mm side clearance
Follow ABB’s EMC guidelines for wiring
Configuration:
Use Control Builder V11 or later
Apply latest firmware version
Perform initial calibration cycle
Maintenance:
Annual signal verification recommended
Monitor module temperature trends
Replace after 10 years or 100,000h operation
Service Commitment
36-month standard warranty
15-year long-term support commitment
Global technical support network
Online knowledge base access
Firmware update service program
