ABB ACS800-104-0003-3+N682+Q967 – Product Description
Detailed Parameter Table
| Parameter Name | Parameter Value |
| Product Model | ACS800-104-0003-3+N682+Q967 |
| Manufacturer | ABB |
| Product Category | Industrial AC Drive Package |
| Drive Frame Size | R4 (104mm width) |
| Power Rating | 3kW (4HP) |
| Input Voltage | 3-phase 380-480V AC (±10%) |
| Output Current | 7A continuous |
| Overload Capacity | 150% for 60s |
| Control Method | DTC (Direct Torque Control) |
| Communication | Standard I/O + Optional Fieldbus |
| Enclosure Rating | IP21 (Open Chassis) |
| Cooling Method | Air Cooled |
| Compliance Standards | CE, UL, cUL |

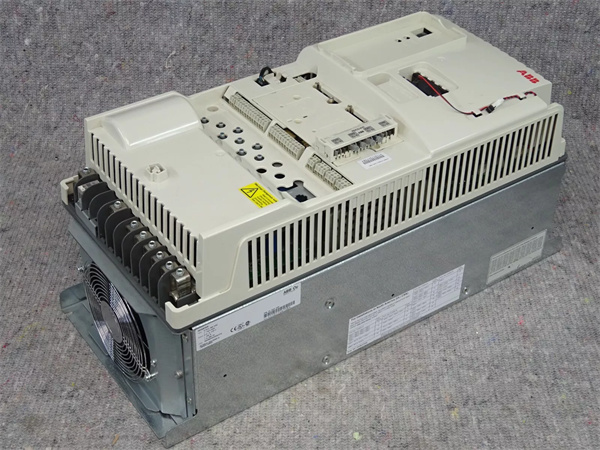

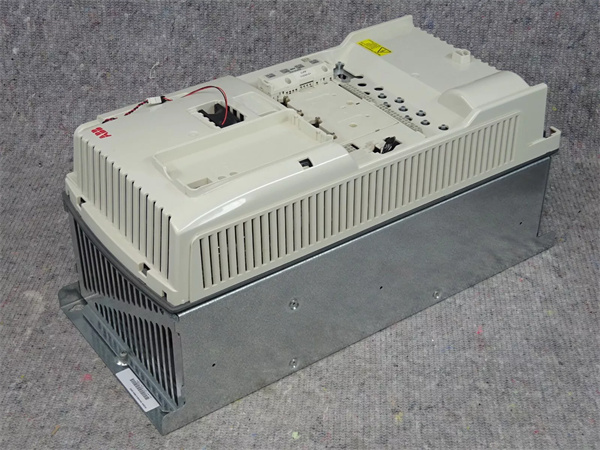

ABB ACS800-104-0003-3+N682+Q967
Included Options:
+N682: Brake Chopper (Dynamic Braking)
+Q967: EMC Filter Class A
Product Introduction
The ABB ACS800-104-0003-3+N682+Q967 is a complete industrial AC drive package from ABB’s renowned ACS800 series, designed for precise motor control in demanding applications. This configuration combines a 3kW (4HP) variable frequency drive with essential options including a built-in brake chopper (+N682) for dynamic braking and EMC filter (+Q967) for electromagnetic compatibility.As part of ABB’s industrial drive solutions, this package delivers superior motor control through ABB’s patented Direct Torque Control (DTC) technology, providing fast torque response and accurate speed regulation without needing encoder feedback. The compact R4 frame size (104mm width) makes it ideal for space-constrained installations while maintaining full performance capabilities.
Core Advantages and Technical Highlights
Advanced Motor Control:
DTC technology for precise speed (±0.1%) and torque (±2% at 1Hz) control
Automatic motor adaptation (AMA) for optimal performance
Built-in brake chopper for effective dynamic braking
EMC Filter Class A for reduced electromagnetic interference
Robust Industrial Design:
-10°C to +50°C ambient temperature operation
95% relative humidity tolerance (non-condensing)
5g vibration resistance (IEC 60068-2-6)
Conformal coated PCB for harsh environments
User-Friendly Features:
Intuitive control panel with multilingual interface
Customizable I/O (3 analog, 4 digital inputs)
Fieldbus options (PROFIBUS, DeviceNet, Modbus)
ABB DriveWindow software for easy commissioning
Typical Application Scenarios
Material Handling:
Conveyor belt speed control
Packaging machine drives
Process Industries:
Pump and fan control
Mixer and agitator drives
Manufacturing:
Machine tool applications
Textile machinery
Building Automation:
HVAC system pumps
Elevator control systems

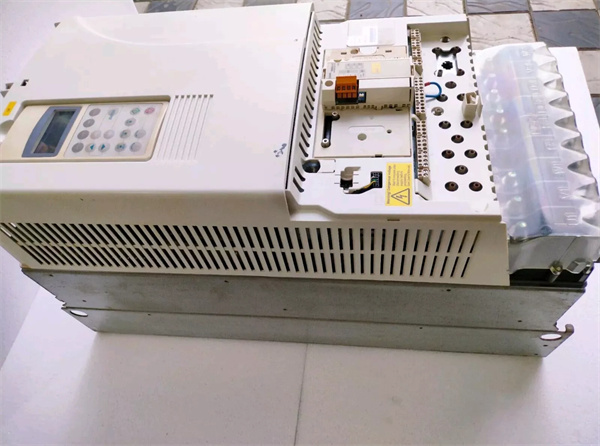

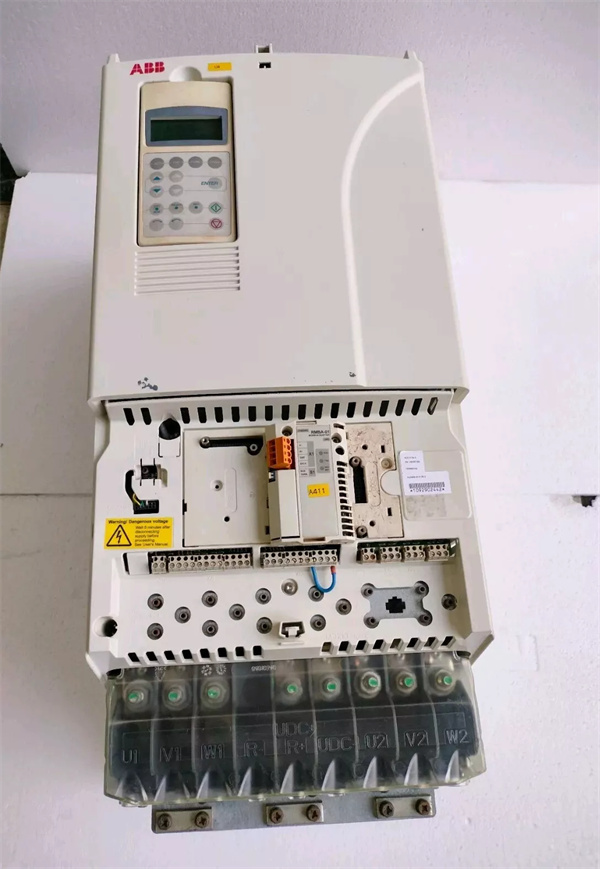

ABB ACS800-104-0003-3+N682+Q967
Related Model Recommendations
| Model | Description |
| ACS800-104-0005-3 | 5kW (7HP) version |
| ACS800-104-0007-3 | 7.5kW (10HP) version |
| ACS800-104-0011-3 | 11kW (15HP) version |
| ACS880-01-004A-3 | Next-generation alternative |
Installation & Commissioning
Installation Requirements:
3-phase 380-480V AC power supply
Proper grounding (min. 10mm² cable)
50mm clearance for ventilation
EMC-compliant cabling for I/O signals
Commissioning Steps:
Motor data input (auto-tuning recommended)
Application macro selection
Brake resistor connection (if applicable)
Fieldbus configuration (optional)
Test run and parameter fine-tuning
Service & Support
ABB provides:
36-month standard warranty
Global 24/7 technical support
Online documentation and manuals
Firmware update services
Authorized service centers worldwide
The drive undergoes:
Full-load factory testing
High-potential insulation testing
EMC compliance verification
Thermal cycling tests
This complete drive package combines ABB’s proven drive technology with essential options for reliable industrial motor control, offering exceptional performance and easy integration into automation systems.
