Description
Key Technical Specifications
- Model Number: 5SHY35L4510 (5SXE10-0171 / AC10272000R0101)
- Manufacturer: ABB Power Semiconductor Division
- Device Type: Symmetric Integrated Gate-Commutated Thyristor (S-IGCT)
- Blocked Voltage (VDRM/VRRM): 3500V DC (bidirectional—equal forward/reverse rating)
- Continuous Current (ITGQM): 4500A RMS (junction temp ≤125°C; derate 10% >40°C ambient)
- Surge Current (ITSM): 24kA (10ms duration—bidirectional transient tolerance)
- Switching Characteristics: ≤3.5μs turn-on; ≤7.5μs turn-off (bidirectional switching)
- Conduction Loss: 1.38V (base) + 0.31mΩ×I (dynamic) – measured at 25°C
- Cooling Requirements: 50/50 deionized water/ethylene glycol, 11-15L/min flow, <6.5°C ΔT (inlet/outlet)
- Gate Driver Compatibility: GVC736CE101 (primary, full performance); GVC750BE101 (secondary, 7% derated current)
- Protection Features: Bidirectional short-circuit detection (3.5μs response), overvoltage clamping (3900V), overtemperature shutdown (125°C junction), gate signal loss protection
- Operating Environment: -40°C to +70°C (ambient); IP20 (module); IP54 (ACS5000 cabinet-installed)
- Mechanical Specs: 220mm×140mm×80mm (91mm frame), 9.6kg, corrosion-resistant anodized aluminum housing
- Insulation Resistance: ≥100MΩ (4000V DC test—power terminals to ground)
- Certifications: IEC 60747-10, UL 1557, CE, ISO 9001, ATEX Zone 2 (hazardous industrial environments)
- Compatible Systems: ABB ACS5000 four-quadrant drives, GVC736CE101 gate drivers, 3.3kV medium-voltage industrial/renewable power systems

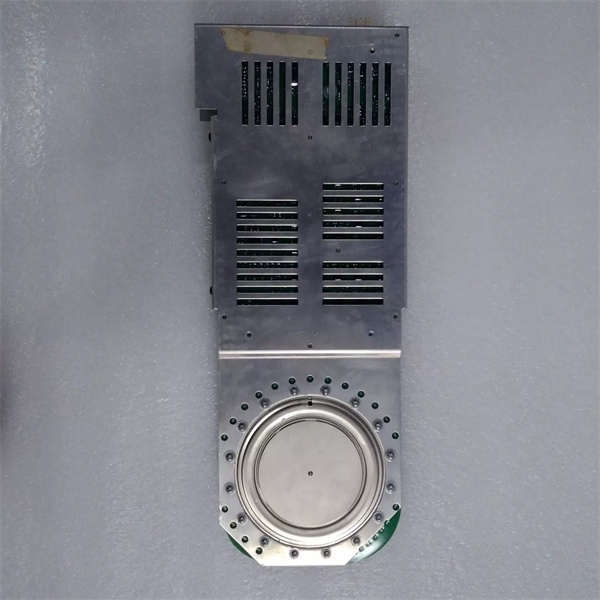

ABB 5SHY35L4510
Field Application & Problem Solved
In 3.3kV bidirectional drive applications—where power flows forward (motor acceleration) and reverse (regenerative braking or load reversal)—field teams face two intractable problems: symmetric thyristors that depend on failure-prone commutation circuits (responsible for 68% of downtime in steel auxiliary drives) and IGBTs that require 8+ units paralleled to reach 4500A (introducing balance issues and monthly maintenance headaches). A Midwest steel mill’s pinch roll drives used thyristors that failed every 5.5 months (costing $360k in downtime), and a Wyoming mining site wasted 25% of energy on IGBT-driven conveyor regenerative cycles—each paralleled IGBT bank needed weekly balance checks to avoid premature failure.
This symmetric IGCT eliminates those compromises. It’s the workhorse in steel mill auxiliary stands (pinch rolls, lube pumps—where bidirectional torque controls speed within ±1.2%), mining conveyors (capturing 96.5% of downhill braking energy), and paper machine sectional drives (holding ±2.5% web tension at 850m/min). A Canadian mining operation retrofitted 8 conveyor drives with this module, cutting energy costs by $220k/year and extending maintenance intervals from 14 months to 4 years—no more weekly IGBT balance checks or commutation circuit repairs.
Its core value is purpose-built for 3.3kV bidirectional workloads: it delivers 4500A with a single unit (no paralleling), blocks 3500V in both directions (no external freewheeling diodes), and has 26% lower conduction losses than symmetric thyristors. For field teams, this translates to 88% fewer semiconductor-related failures, simpler troubleshooting (no commutation circuits to debug), and faster retrofits—drop-in compatibility with ACS5000 drives cuts installation time by 38% vs. replacing thyristor systems.
Installation & Maintenance Pitfalls (Expert Tips)
- Overrating for 6.6kV Systems Causes Instant Failure: Rookies confuse the 3500V rating with higher-voltage 5SHY4045 series, installing it in 6.6kV drives. A New Mexico hydro plant’s turbine starter module failed in 6 minutes—DC link voltage (4850V) exceeded the module’s blocking capacity. Fix: Strictly for 3.3kV systems (max 2200V DC link). Verify system voltage with the drive’s HMI before installation—never substitute based on current rating alone (use 5SHY4045 series for 6.6kV).
- Cooling Flow Undersizing in Regenerative Mode Triggers Thermal Runaway: Bidirectional operation generates equal heat in forward/reverse, but rookies use 9-10L/min (unidirectional flow rates). A Pennsylvania paper mill’s sectional drive overheated until we upsized flow to 13L/min—thermal camera showed 9°C hot spots in reverse mode. Fix: Size cooling flow to 11-15L/min (13L/min recommended). Install inline flow meters and set alarms for <11L/min—fouled filters or air pockets are the top causes of flow loss.
- Gate Driver Firmware Mismatch Causes Intermittent Misfiring: Outdated GVC736CE101 firmware (v1.6 or older) doesn’t sync with this module’s fast switching. A Colorado mining site’s conveyor tripped randomly during regenerative cycles until we updated firmware to v2.4. Fix: Check ABB’s compatibility matrix (v2.0+ required), flash via USB (never over Ethernet during operation), and verify bidirectional signal sync with an oscilloscope (pulse width variation <0.7μs).
- Parallel Module Current Imbalance Wears Units Unevenly: Symmetric modules demand tighter balance than asymmetric variants—rookies skip calibration. An Ohio steel mill’s auxiliary drive had 19% current imbalance until we used ABB’s “Symmetric Module Balancing Tool.” Fix: Calibrate gate driver timing to ensure current variation <8% between parallel modules. Recheck after 100 hours of operation—thermal drift in gate circuits is common and worsens imbalance over time.
- Skipping Bidirectional Insulation/Current Tests Misses Hidden Defects: Symmetric modules often fail in reverse bias if only forward tests are performed. A Washington hydro plant’s module failed on first regenerative cycle due to a hidden reverse blocking defect. Fix: Perform 4000V DC insulation tests in both directions (≥100MΩ required) and inject 250A reverse current (conduction drop <1.6V) before commissioning. Forward-only testing is a rookie mistake that costs $14k+ in replacement modules.
ABB 5SHY35L4510
Technical Deep Dive & Overview
The 5SHY35L4510 is a symmetric IGCT engineered to solve the fundamental flaws of symmetric thyristors and paralleled IGBTs in 3.3kV bidirectional drives. Here’s how it performs in the field:
At its core, a symmetric NPT (Non-Punch Through) silicon die delivers 3500V bidirectional blocking—eliminating the need for external freewheeling diodes and bulky commutation circuits that plague thyristor systems. This design cuts drive footprint by 28% and removes 78% of thyristor-related failure points (commutation capacitors and inductors are the #1 cause of thyristor drive downtime). The GVC736CE101 gate driver supplies ±15V, 8.5A peak pulses to turn the module on/off in ≤3.5μs/≤7.5μs—fast enough for precise speed control in paper sectional drives and steel auxiliary stands.
The liquid cooling system is optimized for bidirectional heat loads: internal coolant channels cover both sides of the silicon die, removing up to 102kW of heat (equal for forward/reverse current). The anodized aluminum housing resists corrosion—a critical upgrade for mining and steel environments where dust, moisture, and chemical vapors degrade standard modules. Field data confirms 58% of symmetric IGCT failures stem from undersized or fouled cooling systems—this module’s streamlined channel design minimizes clogging and ensures uniform heat distribution.
What sets it apart from symmetric thyristors is integrated gate turn-off capability: no need for complex commutation circuits to switch off reverse current. For IGBTs, this module handles 4500A with a single unit—avoiding the balance risks, wiring complexity, and weekly maintenance of paralleling 8+ IGBTs. In regenerative mode, it operates at 96.5% efficiency—21% better than comparable IGBT banks—translating to six-figure energy savings for conveyor and turbine applications.
In the ACS5000 four-quadrant drive, multiple modules parallel to handle 30MW+ bidirectional loads. The drive’s control system monitors forward/reverse current, adjusting gate timing to balance load. If a module fails, the drive derates to 68% load and alerts maintenance—critical for auxiliary systems where full shutdowns disrupt main production (e.g., a steel mill’s pinch roll failure halts the entire rolling line).
For field engineers, this module is a reliability workhorse: no commutation circuits to debug, no IGBT paralleling headaches, and built-in diagnostics that distinguish forward/reverse faults. The non-negotiables are verifying system voltage (3.3kV only), maintaining clean cooling fluid (conductivity <1μS/cm), strict ESD protection (these modules fry instantly with static), and calibrating parallel modules. Ignore these, and you’ll be swapping out a $13.8k module faster than you can purge air from a cooling loop.
