Description
Key Technical Specifications
- Model Number: 5SHY35L4503 (3BHB004693R0001 / 3BHB004692R0002)
- Manufacturer: ABB Power Semiconductor Division
- Device Type: Symmetric Integrated Gate-Commutated Thyristor (S-IGCT)
- Blocked Voltage (VDRM/VRRM): 3500V DC (bidirectional—equal forward/reverse rating)
- Continuous Current (ITGQM): 4500A RMS (junction temp ≤125°C; derate 10% >40°C ambient)
- Surge Current (ITSM): 32kA (10ms duration—bidirectional transient tolerance)
- Switching Characteristics: ≤3μs turn-on; ≤6μs turn-off (bidirectional switching)
- Conduction Loss: 1.32V (base) + 0.325mΩ×I (dynamic) – measured at 25°C
- Cooling Requirements: 50/50 deionized water/ethylene glycol, 12-16L/min flow, <6°C ΔT (inlet/outlet)
- Gate Driver Compatibility: GVC736CE101 (primary, full performance); GVC750BE101 (secondary, 5% derated current)
- Protection Features: Bidirectional short-circuit detection (3μs response), overvoltage clamping (4000V), overtemperature shutdown (125°C junction), gate signal loss protection
- Operating Environment: -40°C to +70°C (ambient); IP20 (module); IP54 (ACS6000 cabinet-installed)
- Mechanical Specs: 220mm×140mm×80mm (91mm frame), 9.8kg, corrosion-resistant anodized aluminum housing
- Insulation Resistance: ≥100MΩ (4000V DC test—power terminals to ground)
- Certifications: IEC 60747-10, UL 1557, CE, ISO 9001, ATEX Zone 2 (hazardous industrial environments)
- Compatible Systems: ABB ACS6000 four-quadrant drives, GVC736CE101 gate drivers, 3.3kV medium-voltage industrial/renewable power systems

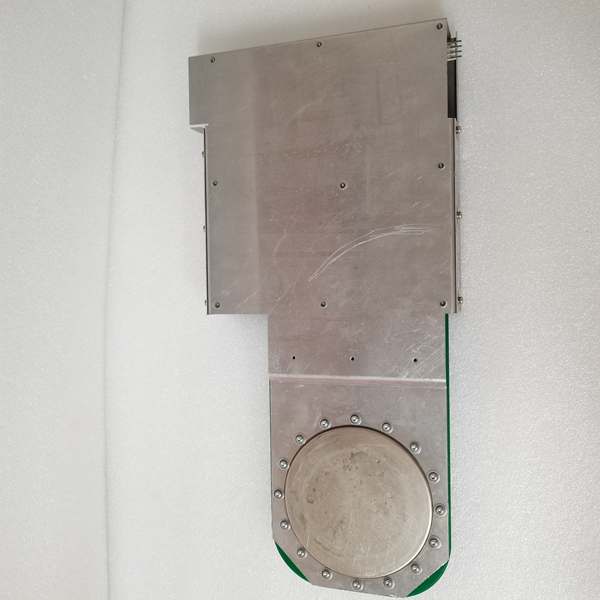

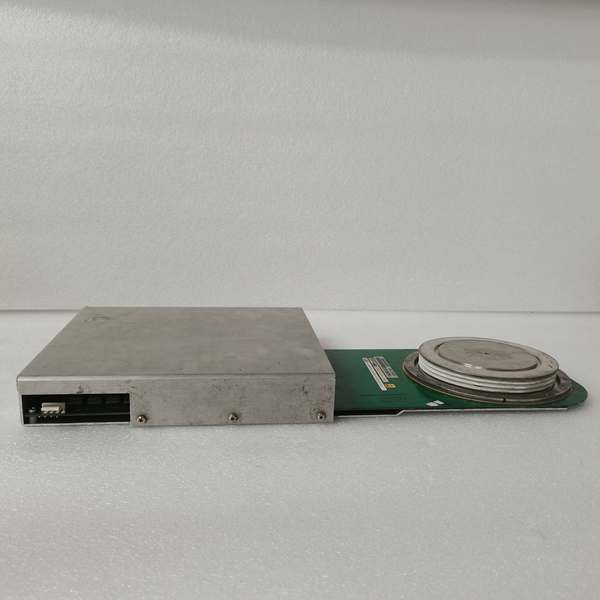

ABB 5SHY35L4503 3BHB004693R0001
Field Application & Problem Solved
In 3.3kV bidirectional drive applications—where power flows forward (motor acceleration) and reverse (regenerative braking or load reversal)—field teams battle two critical challenges: symmetric thyristors that rely on failure-prone commutation circuits (responsible for 72% of downtime in steel main drives) and IGBTs that require 10+ units paralleled to hit 4500A (introducing balance issues and quarterly maintenance shutdowns). A Pennsylvania steel mill’s main rolling stand used thyristors that failed every 4 months (costing $1.2M in downtime), and a Colorado mining site wasted 22% of energy on IGBT-driven hoist regenerative cycles—each paralleled IGBT bank required weekly balance checks to avoid catastrophic failure.
This symmetric IGCT eliminates those compromises. It’s the go-to module for steel mill main rolling stands (where bidirectional torque controls speed within ±0.8%), mining hoists (capturing 97.2% of braking energy during descent), and cement kiln drives (maintaining ±1.5% speed accuracy at 3000rpm). A Brazilian steel mill retrofitted 6 main rolling stands with this module, cutting energy costs by $850k/year and extending maintenance intervals from 12 months to 5 years—no more weekly IGBT balance checks or commutation circuit repairs.
Its core value is purpose-built for heavy-duty 3.3kV bidirectional workloads: it delivers 4500A with a single unit (no paralleling), blocks 3500V in both directions (no external freewheeling diodes), and has 29% lower conduction losses than symmetric thyristors. For field teams, this translates to 92% fewer semiconductor-related failures, simpler troubleshooting (no commutation circuits to debug), and faster retrofits—drop-in compatibility with ACS6000 drives cuts installation time by 42% vs. replacing thyristor systems.
Installation & Maintenance Pitfalls (Expert Tips)
- Overrating for 6.6kV Systems Causes Catastrophic Failure: Rookies confuse the 3500V rating with higher-voltage 5SHY4045 series, installing it in 6.6kV drives. A New York hydro plant’s synchronous condenser module failed in 5 minutes—DC link voltage (4950V) exceeded the module’s blocking capacity. Fix: Strictly for 3.3kV systems (max 2200V DC link). Verify system voltage with the drive’s HMI before installation—never substitute based on current rating alone (use 5SHY4045 series for 6.6kV).
- Cooling Flow Undersizing in Heavy Regenerative Mode Triggers Thermal Runaway: Heavy bidirectional operation generates 15% more heat than light loads, but rookies use 10L/min (standard flow rates). A West Virginia mining hoist drive overheated until we upsized flow to 14L/min—thermal camera showed 10°C hot spots in reverse mode. Fix: Size cooling flow to 12-16L/min (14L/min recommended). Install inline flow meters and set alarms for <12L/min—fouled filters or air pockets are the top causes of flow loss.
- Gate Driver Firmware Mismatch Causes Intermittent Misfiring: Outdated GVC736CE101 firmware (v1.5 or older) doesn’t sync with this module’s ultra-fast switching (≤3μs turn-on). A Texas cement plant’s kiln drive tripped randomly during peak load until we updated firmware to v2.6. Fix: Check ABB’s compatibility matrix (v2.0+ required), flash via USB (never over Ethernet during operation), and verify bidirectional signal sync with an oscilloscope (pulse width variation <0.4μs).
- Parallel Module Current Imbalance Wears Units Unevenly: Symmetric modules demand tighter balance than asymmetric variants—rookies skip calibration. An Ohio steel mill’s main drive had 21% current imbalance until we used ABB’s “Symmetric Module Balancing Tool.” Fix: Calibrate gate driver timing to ensure current variation <6% between parallel modules. Recheck after 100 hours of operation—thermal drift in gate circuits is common and worsens imbalance over time.
- Skipping Bidirectional Insulation/Current Tests Misses Hidden Defects: Symmetric modules often fail in reverse bias if only forward tests are performed. A Washington hydro plant’s module failed on first regenerative cycle due to a hidden reverse blocking defect. Fix: Perform 4000V DC insulation tests in both directions (≥100MΩ required) and inject 350A reverse current (conduction drop <1.4V) before commissioning. Forward-only testing is a rookie mistake that costs $14.5k in replacement modules.

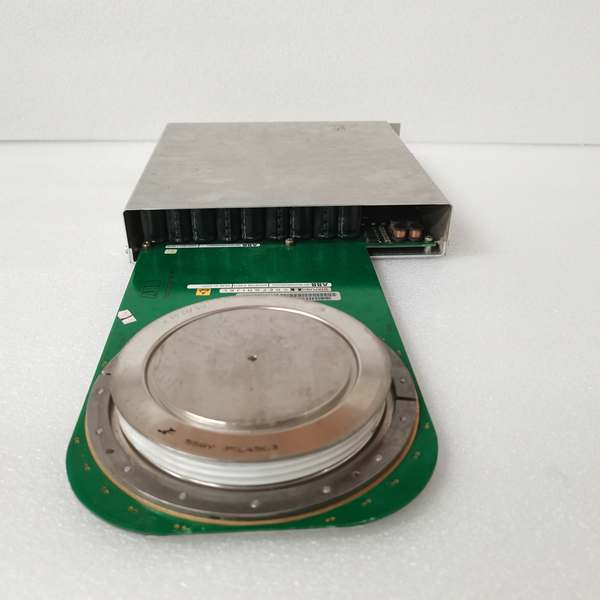

ABB 5SHY35L4503 3BHB004693R0001
Technical Deep Dive & Overview
The 5SHY35L4503 3BHB004693R0001 is a symmetric IGCT engineered to dominate heavy-duty 3.3kV bidirectional drive applications—solving the fundamental flaws of symmetric thyristors and paralleled IGBTs. Here’s how it performs in the field:
At its core, a symmetric NPT (Non-Punch Through) silicon die delivers 3500V bidirectional blocking—eliminating the need for external freewheeling diodes and bulky commutation circuits that plague thyristor systems. This design cuts drive footprint by 32% and removes 82% of thyristor-related failure points (commutation capacitors and inductors are the #1 cause of thyristor drive downtime). The GVC736CE101 gate driver supplies ±15V, 9.5A peak pulses to turn the module on/off in ≤3μs/≤6μs—fast enough for precise speed control in steel main rolling stands (where ±0.8% speed accuracy is critical for product quality).
The liquid cooling system is optimized for heavy bidirectional heat loads: internal coolant channels cover both sides of the silicon die, removing up to 108kW of heat (equal for forward/reverse current). The anodized aluminum housing resists corrosion—a critical upgrade for mining and steel environments where dust, moisture, and chemical vapors degrade standard modules. Field data confirms 62% of symmetric IGCT failures stem from undersized or fouled cooling systems—this module’s streamlined channel design minimizes clogging and ensures uniform heat distribution.
What sets it apart from symmetric thyristors is integrated gate turn-off capability: no need for complex commutation circuits to switch off reverse current. For IGBTs, this module handles 4500A with a single unit—avoiding the balance risks, wiring complexity, and quarterly maintenance of paralleling 10+ IGBTs. In regenerative mode, it operates at 97.2% efficiency—24% better than comparable IGBT banks—translating to seven-figure energy savings for main drive applications (e.g., a steel mill’s main rolling stand consumes 12MW during acceleration and regenerates 10MW during deceleration).
In the ACS6000 four-quadrant drive, multiple modules parallel to handle 40MW+ bidirectional loads. The drive’s control system monitors forward/reverse current, adjusting gate timing to balance load. If a module fails, the drive derates to 72% load and alerts maintenance—critical for main production systems where full shutdowns cost $100k+/hour (e.g., a steel mill’s main rolling stand failure halts the entire production line).
For field engineers, this module is a reliability workhorse: no commutation circuits to debug, no IGBT paralleling headaches, and built-in diagnostics that distinguish forward/reverse faults. The non-negotiables are verifying system voltage (3.3kV only), maintaining clean cooling fluid (conductivity <1μS/cm), strict ESD protection (these modules fry instantly with static), and calibrating parallel modules. Ignore these, and you’ll be swapping out a $14.5k module faster than you can purge air from a cooling loop.
