Description
Key Technical Specifications
- Model Number: 57360001-HX (DSMB 176)
- Manufacturer: ABB
- Memory Type: PROM (Programmable Read-Only Memory)
- Memory Capacity: 176 KB non-volatile storage
- Form Factor: Plug-in board for ABB Advant OCS controller racks
- Backplane Compatibility: Advant OCS master bus
- Operating Temperature: -40°C to +70°C (industrial grade)
- Storage Temperature: -55°C to +85°C
- Isolation Rating: 2500V AC (board-to-backplane)
- Power Consumption: <2W typical
- Dimensions: Standard ABB DSMB series board size (160mm x 100mm approx.)
- Mounting: Rack-mounted (3U height)
- Status Indicators: Power LED, Memory Access LED

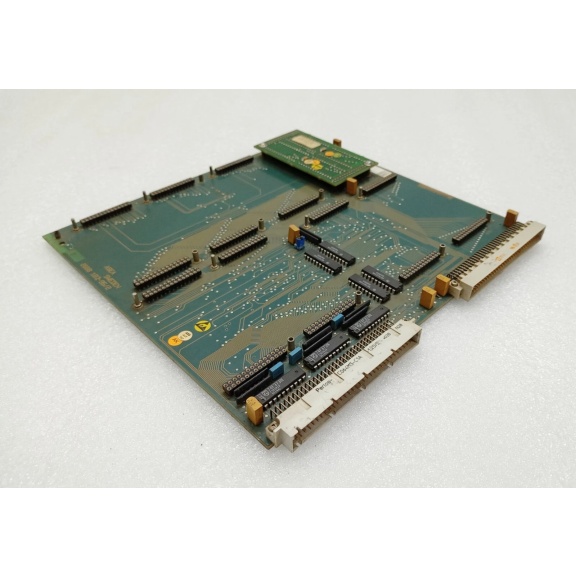

ABB 57360001-HX
Field Application & Problem Solved
In legacy industrial control environments—refineries, chemical plants, and power generation facilities running ABB Advant OCS DCS systems—the biggest memory-related challenge is program storage limitations and data retention. Original controller memory was often insufficient for complex control strategies, firmware updates, or historical data logging. This forced operators to choose between limiting control functionality or costly system upgrades. The DSMB 176 solves this by adding 176 KB of non-volatile PROM storage without replacing the entire controller.
You’ll find this module in Advant OCS systems controlling critical processes like distillation columns, boiler combustion systems, and turbine governors. Its core value lies in preserving program integrity—PROM retains data even during power loss, eliminating the risk of configuration corruption during outages. In the field, this prevents catastrophic process upsets caused by lost control logic. Additionally, it enables firmware upgrades for legacy controllers, extending system lifespan by 5-10 years without full replacement.
For maintenance teams, the plug-in design reduces downtime during memory upgrades or replacements. Unlike soldered memory chips, the DSMB 176 swaps out in minutes, minimizing process disruption during scheduled maintenance windows.
Installation & Maintenance Pitfalls (Expert Tips)
Static Discharge Destroys Memory Chips
Rookies often handle the board without ESD protection. The DSMB 176’s PROM chips are extremely sensitive to static electricity—even a small discharge can corrupt data or permanently damage the module. My rule: Always wear a grounded ESD wrist strap and use an anti-static mat when handling the board. Never touch the gold contacts or memory chips directly.
Incorrect Board Positioning Causes Bus Errors
The DSMB 176 must be installed in the correct slot of the Advant OCS rack (typically slot 3 or 4, depending on controller model). Install it in the wrong slot, and you’ll get “bus parity error” or “memory not detected” faults. Always verify the slot number against the controller’s hardware manual before installation—don’t rely on “what worked last time” in mixed-model racks.
Unprogrammed PROM Leads to Boot Failures
A new DSMB 176 arrives blank—install it without programming, and the controller will fail to boot. This is a common mistake during emergency replacements. The fix: Use ABB’s PG5 programming software to clone the existing PROM image before swapping boards. If you don’t have a backup, you’ll need to rebuild the program from scratch, costing hours of downtime.
Environmental Exposure Degrades Memory
While rated for -40°C to +70°C, the DSMB 176’s PROM chips degrade faster in high-humidity or corrosive environments (common in chemical plants). Over time, this causes bit rot—gradual data corruption that triggers intermittent control faults. The solution: Inspect the board annually for corrosion on contacts, and replace it every 8-10 years, even if it passes diagnostics.

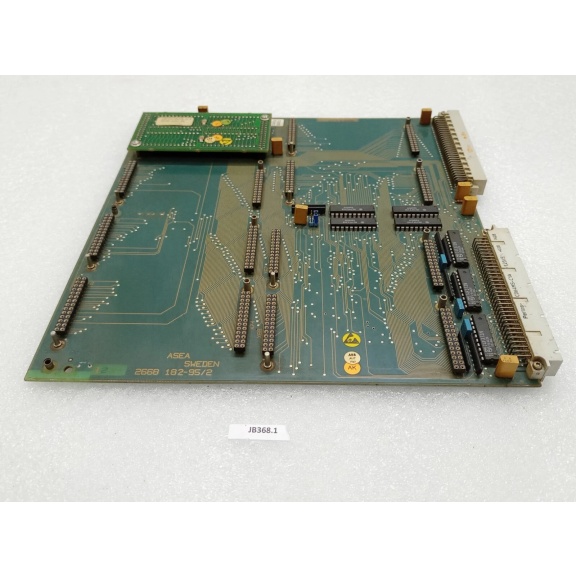

ABB 57360001-HX
Technical Deep Dive & Overview
The DSMB 176 is a non-volatile memory expansion module designed for ABB’s Advant OCS distributed control system. It connects to the controller’s backplane via a 96-pin edge connector, communicating with the CPU through the master bus. The board contains a 176 KB PROM chip—a type of non-volatile memory that retains data without power—ideal for storing critical control programs, safety interlock logic, and hardware configuration data.
Unlike RAM, PROM is programmed once (via ABB’s PG5 software) and retains data indefinitely. This makes it perfect for mission-critical applications where data loss during power outages could cause process disasters. The module’s industrial-grade components withstand vibration, temperature extremes, and electrical noise common in heavy industry. Status LEDs provide real-time feedback: a green power LED confirms backplane power, while a yellow access LED blinks during memory read/write operations—helping technicians diagnose bus communication issues quickly.
In legacy systems, the DSMB 176 acts as a “bridge” between outdated controller hardware and modern control requirements. It allows plants to run more complex control algorithms without replacing the entire DCS, balancing performance, cost, and reliability in environments where system downtime is measured in millions of dollars per hour.
