Description
Key Technical Specifications
- Model Number: 3BHB030310R0001 5SHY4045L0006
- Manufacturer: ABB Power Semiconductor Division
- Device Type: Asymmetric Integrated Gate-Commutated Thyristor (A-IGCT)
- Blocked Voltage (VDRM): 4500V DC (asymmetric design, 2800V DC link rating)
- Continuous Current (ITGQM): 4000A RMS (junction temp ≤125°C)
- Surge Current (ITSM): 32kA (10ms duration)
- Switching Speed: ≤5μs turn-off; ≤2μs turn-on
- Conduction Loss: 1.40V base drop + 0.325mΩ dynamic resistance
- Cooling Requirement: Forced liquid cooling (50/50 deionized water/glycol), 10-15L/min flow rate
- Gate Driver Compatibility: GVC750BE101 (primary); GVC736CE101 (derated 10%)
- Protection Features: Short-circuit detection (2μs response), overvoltage clamping, overtemperature monitoring, gate signal loss protection
- Operating Temperature: -40°C to +70°C (ambient); -40°C to +125°C (junction)
- Dimensions: 220mm × 140mm × 80mm (91mm frame), 10kg weight
- Certifications: IEC 60747-10, UL 1557, CE
- Compatible Systems: ABB ACS6000 medium-voltage drives, GVC750BE101 gate drivers, 3.3kV-6.6kV industrial power systems

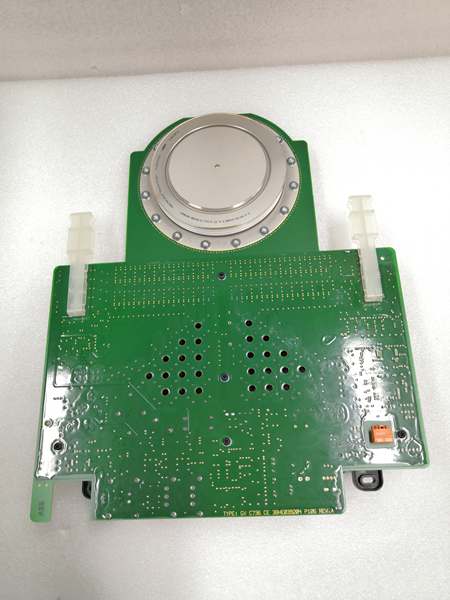

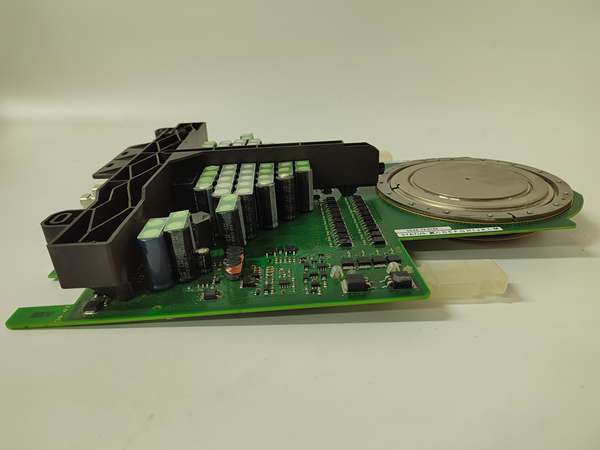

ABB 3BHB030310R0001 5SHY4045L0006
Field Application & Problem Solved
In heavy-duty medium-voltage inverter applications—think 60MW+ steel rolling mill drives or 20MW paper machine main drives—the biggest battle is balancing three non-negotiables: high voltage/current capacity, fast switching for precise control, and low energy losses. Traditional thyristors need bulky commutation circuits that slow response and add failure points; IGBTs handle fast switching but melt down under 4000A continuous current or suffer crippling conduction losses. A Pennsylvania steel mill lost $2.3M/year to IGBT failures in their hot rolling stands, while a Wisconsin paper plant wasted 18% of their energy budget on thyristor-based drives’ inefficiency.
This A-IGCT eliminates those trade-offs. You’ll find it in steel mill hot rolling stands (controlling thickness with ±0.05mm precision), paper machine main drives (maintaining web tension with <2% variation), gas turbine starters (cutting start time from 15min to 5min), and mining conveyors (running 24/7 in 40°C+ ambient). Its core value is asymmetric design optimization: it delivers thyristor-like voltage/current handling without commutation circuits, IGBT-like switching speed, and 25% lower conduction losses than comparable IGBTs. For the steel mill, it eliminated 90% of semiconductor-related downtime; for the paper plant, it cut energy costs by $410k/year.
Installation & Maintenance Pitfalls (Expert Tips)
- Liquid Cooling Water Quality Is Non-Negotiable: Rookies use tap water or low-purity deionized water, causing corrosion and clogging. A Texas power plant’s turbine starter failed after 3 months until we flushed the system and switched to <1μS/cm conductivity water. Fix: Use 50/50 deionized water/ethylene glycol, monitor pH (7.0-9.0), and clean heat exchangers quarterly with 10% citric acid.
- Optical Fiber Handling Breaks Gate Signals: Bending fibers beyond 50mm radius or dirty connectors cause misfiring. An Ohio steel mill’s rolling stand tripped until we replaced a crushed fiber and cleaned connectors with isopropyl alcohol. Fix: Maintain minimum 50mm bend radius, use strain relief, and verify signal strength (-10dBm to -20dBm) with an optical power meter.
- ESD Destroys Modules Instantly: Technicians skipping ESD protocols fry semiconductors. A Colorado mining site lost three modules ($15k each) to static. Fix: Mandate ESD wrist straps (grounded to drive frame), ESD mats, and anti-static packaging for storage/transport—never touch gate terminals or semiconductor surfaces.
- Torque Bolts to Exact Specs: Over-torquing (above 40Nm) warps the cooling interface; under-torquing causes hot spots. A Canada paper mill’s drive overheated until we re-torqued bolts to 35-40Nm with a calibrated wrench. Fix: Use cross-pattern tightening, recheck after 24 hours of operation, and apply ABB-recommended thermal grease (0.1mm thickness).
- Pre-Commissioning Tests Prevent Catastrophic Failure: Skipping insulation or current tests leads to startup failures. A Michigan plant’s drive shorted on first run due to a manufacturing defect missed by skip testing. Fix: Perform 5000V DC insulation test (≥100MΩ), gate driver signal verification, and 400A current injection test (conduction drop <1.5V) before full power.

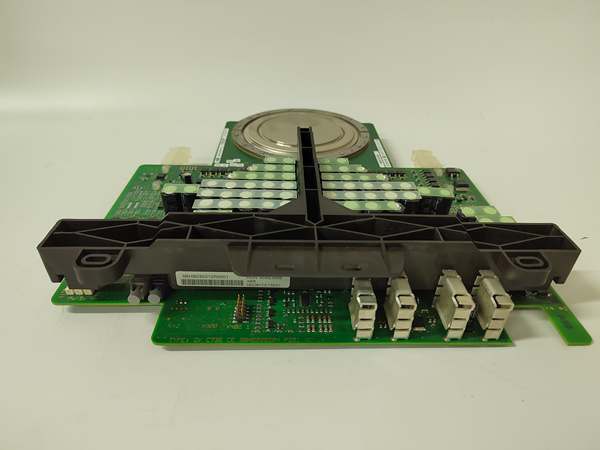

ABB 3BHB030310R0001 5SHY4045L0006
Technical Deep Dive & Overview
The 5SHY4045L0006 is an asymmetric IGCT—engineered for unidirectional current flow in inverters, solving the thyristor/IGBT trade-off. At its core, it uses an asymmetric NPT silicon die: forward blocking (4500V) handles DC link voltage, while limited reverse blocking (1000V) reduces material usage, cutting losses and speeding switching. The integrated gate driver (paired with GVC750BE101) converts optical control signals to ±15V, 10A peak gate pulses—turning the device on in ≤2μs and off in ≤5μs without external commutation circuits.
The module’s liquid cooling manifold routes coolant directly over the semiconductor die, removing up to 100kW of heat—critical for sustaining 4000A continuous current. Built-in protection circuits monitor current, voltage, and temperature, triggering a safe shutdown within 2μs of a fault. In the ACS6000 drive, multiple modules parallel to handle megawatt-scale loads, synced via the gate driver to maintain current balance.
What makes it unique is the asymmetric design: by optimizing for inverter-specific unidirectional flow, it avoids the cost and complexity of symmetric IGCTs while outperforming IGBTs in high-current applications. The 91mm frame fits standard ACS6000 cabinets, enabling drop-in retrofits for aging thyristor systems. It’s not just a semiconductor—it’s a purpose-built power switch that delivers the reliability, efficiency, and precision heavy industry demands.
