Product Core Brief

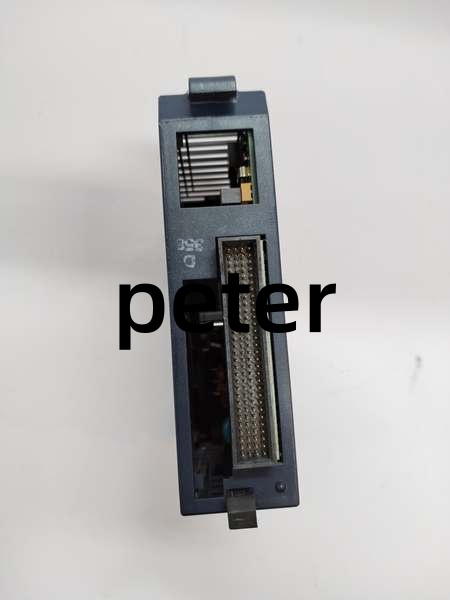

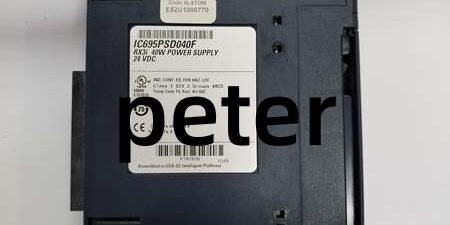

- Model: IC695PSD040
- Brand: GE (General Electric / GE Fanuc)
- Series: PACSystems RX3i
- Core Function: Provides 40W of regulated DC power to the RX3i universal backplane for CPU and I/O modules.
- Product Type: Universal Backplane Power Supply
- Key Specs: 40W Capacity | 85-264 VAC / 100-300 VDC Input | 2-Slot Form Factor | LED Diagnostics
- Condition: New Original / New Surplus
Product Introduction
GE is a 40-watt universal power supply designed specifically for PACSystems RX3i systems. It accepts a wide range of AC or DC input voltages and converts them to the regulated internal bus voltages required by the RX3i backplane.
This industrial automation unit occupies two slots in the RX3i rack and features comprehensive LED diagnostics for power, fault, overload, and overtemperature conditions. It is engineered for harsh industrial environments, supporting continuous operation from 0°C to 60°C and conformal coating options for extreme conditions.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Universal Backplane Power Supply |
| System Compatibility | PACSystems RX3i (IC695 Series) |
| Input Voltage | 85 to 264 VAC or 100 to 300 VDC |
| Load Capacity | 40 Watts Total (All Loads) |
| Form Factor | 2-Slot Width |
| Isolation | 250 VAC Continuous; 1500 VAC for 1 min |
| Wiring | 14 AWG to 22 AWG, 1 wire per terminal |
| LED Indications | Power, P/S Fault, Overload, Overtemperature |
| Load Sharing | NO (Not designed for parallel load sharing) |
| Operating Temp | 0°C to 60°C (Inlet) |
| Agency Approvals | UL, CE, ATEX, CCC, Marine (ABS, BV, LR) |
Quality Control Process
We validate every GE before shipment to ensure operational readiness:
- Visual & Physical Inspection: Connectors, ventilation slots, and terminal blocks are checked for physical damage, corrosion, or thermal stress.
- Functional Test: Powered up with AC/DC source to verify correct output voltage, LED status indicators, and backplane communication.
- Load Verification: Tested under load to confirm stable 40W delivery and verify overload/overtemperature protection circuits trigger correctly.
- Cleaning & Packaging: Units are cleaned, anti-static shielded, and desiccant-packed to prevent moisture damage during transit.
Replacement Pitfall Guide
❗ Slot Requirement: This power supply occupies two consecutive slots in the RX3i rack. Ensure you have adequate adjacent slot space before installation.
❗ Input Voltage Verification: This is a universal input module (85-264 VAC or 100-300 VDC). Always verify your actual field power source matches the connected terminals before energizing. Applying incorrect voltage can destroy the module.
❗ Load Budget Calculation: The 40W rating is the total capacity for all backplane loads. Calculate the power consumption of all installed CPUs, I/O modules, and communication cards to ensure you do not exceed this limit. Overloading will trigger the overload protection LED and shut down the rack.
❗ No Parallel Load Sharing: This module does NOT support load sharing or redundancy. If you require redundant power, you must use a separate redundant power supply configuration as specified in the RX3i system manual.
❗ Conformal Coating Options: If operating in high-humidity or corrosive environments, verify whether you need the conformal-coated version (IC695PSD040CA) or low-temperature version (IC695PSD040LT).
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor | Compatibility Level | Migration Notes |
|---|---|---|---|
| Direct | Verify exact hardware revision | ||
| IC695PSA040 | Direct | PSA040 is the same module with different ordering suffix | |
| IC695PSD040CA | Upgrade | Conformal coated version; direct drop-in | |
| IC695PSD040LT | Conditional | Low-temperature version; verify operating environment | |
| IC695PSD140 | Needs Adaptation | Higher wattage; verify slot and backplane compatibility |
- Lead Time: Typically 1-3 weeks for surplus stock; 4-8 weeks for new factory orders.
- Warranty: Standard 12-month functional warranty.
