Product Core Brief

• Model: P0917XQ
• Brand: Foxboro (Schneider Electric / Invensys)
• Series: I/A Series FBM Redundancy
• Core Function: Enables hardware-level redundancy for specific Fieldbus Modules (FBMs) by acting as a redundant adapter.
• Product Type: Redundancy Adapter Module
• Key Specs: FBM-Level Redundancy | Backplane Interface | G3 Harsh Environment
• Condition: New Original / New Surplus

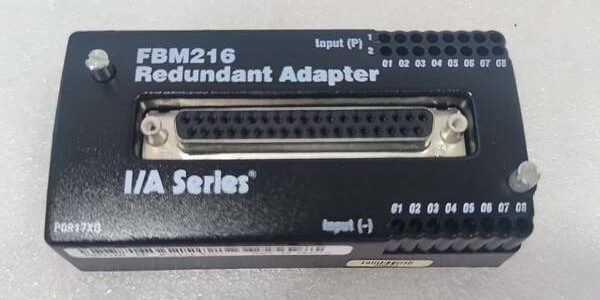

Foxboro P0917XQ

Product Introduction

The Foxboro serves as a critical redundancy adapter for the I/A Series distributed control system. This industrial automation unit is specifically designed to facilitate high-availability architectures by providing the necessary backplane interface and logic for redundant FBM (Fieldbus Module) configurations.

This replacement module operates in tandem with a primary FBM (such as the FBM216) to ensure seamless failover in the event of a hardware fault. By continuously synchronizing data between the primary and tracker modules, it guarantees uninterrupted process control and maximizes system uptime in mission-critical applications.

Key Technical Specifications

Quality Control Process

Every replacement module undergoes strict electrical and functional validation. We first verify the 24 VDC power draw and internal regulator stability using a calibrated Fluke multimeter. Next, we perform backplane communication testing to confirm the adapter correctly negotiates redundancy handshakes and synchronizes data with a paired primary module. We then inspect the edge connector for bent pins or oxidation, as physical damage is a common cause of intermittent redundancy faults. All units ship in anti-static shielding.

Replacement Pitfall Guide

❗ Verify FBM Compatibility. The is a specialized adapter designed for specific FBM models (e.g., FBM216). Ensure this adapter matches the exact FBM model you are attempting to make redundant. Using it with an incompatible FBM will prevent redundancy synchronization.

❗ Check Redundancy Pairing. This adapter must be installed in the designated redundant slot adjacent to the primary FBM. Verify your system configuration and backplane slot mapping to ensure the primary and tracker modules are correctly paired.

❗ Inspect Backplane Seating. Redundancy adapters rely on high-speed backplane communication. Ensure the module is fully seated and evenly torqued. Partial insertion can cause data synchronization errors and continuous failover alarms.

❗ Confirm Firmware/Software Revision. Ensure the redundancy adapter’s hardware revision matches the existing system’s firmware expectations. Mismatched revisions can prevent the DCS from recognizing the redundant pair.

Keep these in mind and you’ll cut 90% of rework time.

Foxboro P0917XQ

Compatibility Matrix & Benchmarks

• Failover Time: Seamless, bumpless transfer during primary module failure.
• Data Integrity: Continuous synchronization ensures zero process data loss.
