Product Core Brief

• Model: A6140-9199-00058
• Brand: EMERSON (CSI / PlantWeb)
• Series: AMS 6500 Mechanical Health Monitor
• Core Function: Calculates absolute shaft vibration by combining relative displacement and casing seismic data.
• Product Type: Axis Absolute Vibration Monitor Module
• Key Specs: Dual Channel | 3U Form Factor | API 670 Compliant
• Condition: New Original / New Surplus

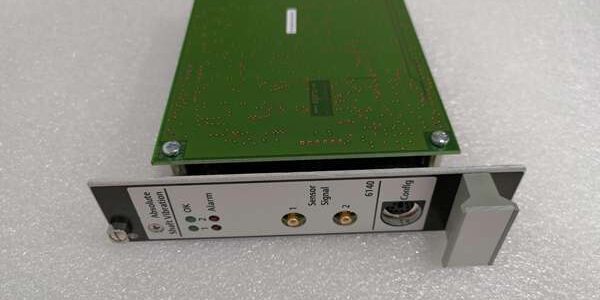

EMERSON A6140-9199-00058

Product Introduction

EMERSON is a dual-channel axis absolute vibration monitor for critical rotating machinery. It mathematically subtracts casing motion from relative shaft displacement to provide true absolute vibration data.

This industrial automation unit occupies only a single 3U slot, cutting rack space requirements in half compared to legacy 6U cards. It is specifically designed for steam, gas, and hydraulic turbines where bearing housing movement is significant.

Key Technical Specifications

Quality Control Process

We validate every EMERSON before it leaves our facility. First, we perform a comprehensive self-diagnostic check to verify hardware, power input, and internal temperature sensors report nominal values.

Next, we inject simulated dual-sensor signals to verify the internal phase compensation and mathematical subtraction logic. Output signals (4-20mA and buffered) must track the calculated absolute value within strict API 670 tolerances.

Finally, each replacement module ships in anti-static shielding with desiccant packs. This prevents moisture ingress during transit.

EMERSON A6140-9199-00058

Replacement Pitfall Guide

❗ Sensor Pairing Requirement: This module requires two distinct sensors per channel: a non-contact relative displacement probe AND a casing-mounted seismic/accelerometer sensor. Missing one sensor input will cause a fault and invalid absolute calculations.

❗ Phase Compensation: The internal processor applies phase compensation between the two sensor inputs. Ensure your seismic sensor is installed in the exact orientation specified by the manufacturer to maintain phase alignment.

❗ Slot Sizing: This is a 3U high, 1-slot wide module. Do not attempt to install it in a slot reserved for standard 6U modules, and ensure your backplane supports the 3U mechanical profile.

❗ Software Configuration: Absolute vibration calculations are highly dependent on AMS software configuration. When swapping this module, you must upload the exact machine setup file to preserve the phase compensation and alarm setpoint parameters.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

• Space Efficiency: 50% smaller footprint than legacy 6U cards
• Processing: Real-time vector math for absolute displacement
