Product Core Brief

• Model: SE4003S2B1
• Brand: Emerson
• Series: DeltaV / Industrial Control System
• Core Function: Receives and processes eight channels of analog field signals.
• Product Type: 8-Channel Analog Input Card
• Key Specs: 4-20 mA Input | 24 VDC Power | 0-60°C Range
• Condition: New Original / New Surplus

Emerson SE4003S2B1

Product Introduction

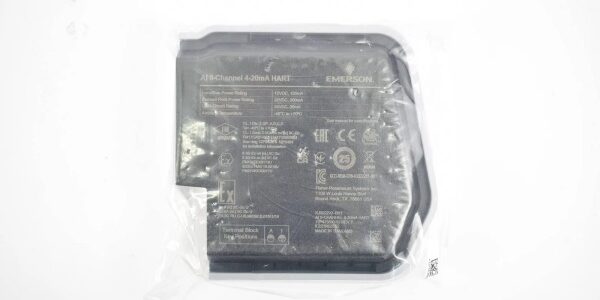

The Emerson serves as a precision analog input card for distributed control systems. This industrial automation unit converts standard 4-20 mA field signals into digital process data.

This replacement module operates reliably across a standard 0 to 60°C temperature range. It provides accurate signal conditioning for critical continuous process control loops.

Key Technical Specifications

Quality Control Process

Every replacement module undergoes strict electrical validation. We first verify the 24 VDC power draw using a calibrated Fluke multimeter to ensure internal regulators are stable. Next, we perform signal injection testing on all eight channels using a precision loop calibrator. We confirm that each analog input accurately registers 4-20 mA values. We then inspect the backplane edge connector for bent pins. Oxidation or physical damage causes intermittent data loss. All units ship in anti-static shielding.

Replacement Pitfall Guide

❗ Verify Loop Wiring. This module strictly accepts 4-20 mA current loop signals. Applying active voltage directly to these terminals will destroy the internal input circuitry. Always verify your field transmitter wiring first.

❗ Check Backplane Power Draw. Eight active analog channels draw significant current from the backplane. Ensure your system power supply has adequate headroom. Overloading the backplane causes random channel dropouts.

❗ Mind the Environmental Limits. The 0 to 60°C operating range is absolute. Installing this module in unventilated enclosures exceeding 60°C degrades analog accuracy rapidly. Ensure adequate rack cooling.

❗ Inspect Terminal Block Seating. The termination assembly must be fully seated and locked. Vibration in the field loosens these connections over time. Always verify torque specs during installation.

Keep these in mind and you’ll cut 90% of rework time.

Emerson SE4003S2B1

Compatibility Matrix & Benchmarks

• Signal Accuracy: High-precision 4-20 mA conversion.
• Data Integration: Seamless backplane communication with DeltaV controllers.
