Product Core Brief

• Model: A06B-6088-H222#H500 (Also referenced#500)
• Brand: Fanuc (发那科)
• Series: Alpha Series Spindle Amplifier Module (SPM)
• Core Function: Delivers high-precision, wide-range variable frequency drive control for CNC spindle motors, supporting stable operation from low to high speeds.
• Product Type: Spindle Amplifier Module
• Key Specs: Modular Design | Wide Speed Range | Integrated Protection | High Reliability
• Condition: New Surplus / Original OEM

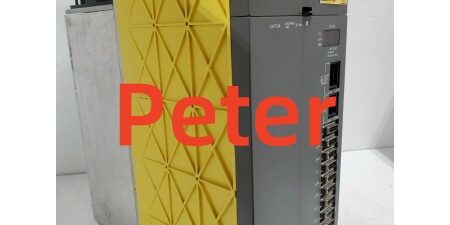

Fanuc A06B-6088-H222#H500

Key Technical Specifications

• Manufacturer: Fanuc
• Part Number:#222#500
• Product Category: Spindle Amplifier Module
• System Architecture: Fanuc Alpha Series
• Control Features: Wide speed regulation, precise closed-loop control
• Protection Features: Overheat, Overcurrent, Overvoltage
• Communication: Standardized CNC interface / Serial Servo Bus
• Operating Temp Range: Standard Industrial CNC Range
• Compliance: CE / UL

Product Introduction (No Fluff)

The Fa#H500 is a highly reliable spindle amplifier module designed for seamless integration with Fanuc CNC systems. It provides stable, precise control for spindle motors across a wide range of speeds, adapting to various machining requirements.

Built with high-quality materials and advanced manufacturing processes, this amplifier ensures long-term stability even in harsh industrial environments. Its standardized communication protocols and comprehensive protection mechanisms safeguard both the spindle motor and the entire CNC system. Sourcing this exact OEM replacement prevents costly production halts and ensures optimal machine performance.

QA & Testing SOP (Dynamic & Transparent)

Spindle amplifiers demand rigorous electrical and functional validation. Ev# undergoes a strict inspection process:

1. Anti-Counterfeit Inspection: Verify Fanuc factory labels, PCB silkscreen, and IGBT module markings against OEM baselines.
2. Power Stage Test: Verify DC bus charging, IGBT switching integrity, and output phase balance using a dedicated spindle test bench.
3. Control Logic Validation: Connect to a Fanuc CNC or test simulator to confirm communication, parameter loading, and alarm-free operation.
4. Protection Function Test: Simulate overcurrent, overvoltage, and overheat conditions to verify the amplifier trips within specified microseconds to protect the motor.
5. Burn-In: 4-hour continuous operation under nominal load to identify marginal power components.
6. Packaging: Shipped in anti-static shielding with a printed QA test report.

Fanuc A06B-6088-H222#H500

Installation Pitfalls & Guide (Engineer to Engineer)

❗ FSSB / Communication Cable Handling: The communication connections use sensitive cables. Never bend the cables beyond their minimum radius or pull on the connectors. Damaged communication lines will cause FSSB or serial bus alarms. Always handle by the connector body.

❗ Motor Parameter Matching: The amplifier must have the correct motor ID parameters set to match the connected spindle motor. Mismatched parameters can cause motor oscillation, excessive heating, or overcurrent alarms. Always verify the motor model and amplifier parameters before power-on.

❗ Cooling & Airflow: Spindle amplifiers generate significant heat. Ensure the amplifier is installed with adequate clearance for airflow and that the control cabinet cooling fans are operational. Blocked ventilation will trigger thermal overload alarms.

❗ EMI Suppression & Grounding: PWM drive technology generates electromagnetic interference. Ensure the amplifier chassis is properly grounded to the machine frame. Motor power cables must be shielded and grounded at the amplifier end only to prevent interference with the CNC controller and encoder feedback.

Replacement Protocol:

1. Pre-Install: Lock out the CNC machine power. Wait at least 15 minutes for the DC bus capacitors to fully discharge. Verify 0 VDC at the amplifier terminals.
2. Removal: Disconnect the communication cables, spindle motor power (U, V, W), and control power cables. Release the retaining screws and extract the amplifier straight out. Inspect the backplane connector for bent pins.
3. Install: Align the # with the guides. Seat it firmly and secure the faceplate screws. Reconnect all cables, ensuring connectors click securely into place.
4. Power-on Test: Restore power. Verify the “READY” LED illuminates. Check the CNC diagnostic page for zero spindle alarms. Run a low-speed rotation test to verify direction. Gradually ramp up to operating speed while monitoring the spindle load meter.

Technical FAQ

Yes, provided the full part num# matches exactly. The “#” suffix denotes specific hardware revision, firmware version, or optional features. Verify the nameplate matches your existing unit before installation.

Why is this listed as “New Surplus” instead of factory-new?
This is genuine Fanuc stock that was never installed on a machine. It has been stored in climate-controlled inventory rather than exposed to coolant mist, vibration, and continuous thermal cycling. You receive the exact same performance and lifespan as a factory-fresh unit, typically at a significantly lower cost without the 12-16 week OEM lead time.

Can I hot-swap this spindle amplifier while the machine is powered?
No. Never disconnect or connect a spindle amplifier under power. Doing so can cause voltage transients that will destroy the IGBT modules or the communication interface. Always follow proper lockout/tagout procedures and wait for the DC bus to discharge.

What is the warranty coverage on this part?
We provide a standard 12-month functional warranty. If the amplifier fails due to IGBT failure, control board fault, or communication error under normal operating conditions within that window, we replace it. Our QA testing proves the amplifier passed all power and control tests before it left our bench.

My spindle amplifier is showing an overcurrent alarm. Is it defective?
Not necessarily. An overcurrent alarm can be triggered by an internal short circuit, but it can also be caused by a shorted spindle motor, damaged motor cables, or a mechanical jam in the spindle. Before replacing #, perform a megger test on the motor and check the motor cables for insulation breakdown. Only replace the amplifier if the motor and cabling test good.
