Product Core Brief

• Model: A06B-0269-B500#0100
• Brand: Fanuc (发那科)
• Series: Alpha Series Spindle Motor
• Core Function: Provides high-precision, high-speed rotational power for CNC machine tool spindles, supporting rigid tapping and high-speed machining.
• Product Type: AC Spindle Motor
• Key Specs: Alpha Series | High-Speed | Integrated Encoder Feedback | IP65
• Condition: New Surplus / Original OEM



Key Technical Specifications

• Manufacturer: Fanuc
• Part Number:#0100
• Product Category: CNC Spindle Motor
• Motor Type: AC Induction / Permanent Magnet Spindle Motor
• Feedback Device: Built-in Position Encoder (MZi Sensor)
• Cooling Method: Air Cooled / Liquid Cooled (Verify specific suffix)
• Max Speed: Up to 10,000+ RPM (Dependent on specific rating)
• Operating Temp Range: Standard Industrial CNC Range
• Compliance: CE / UL
•

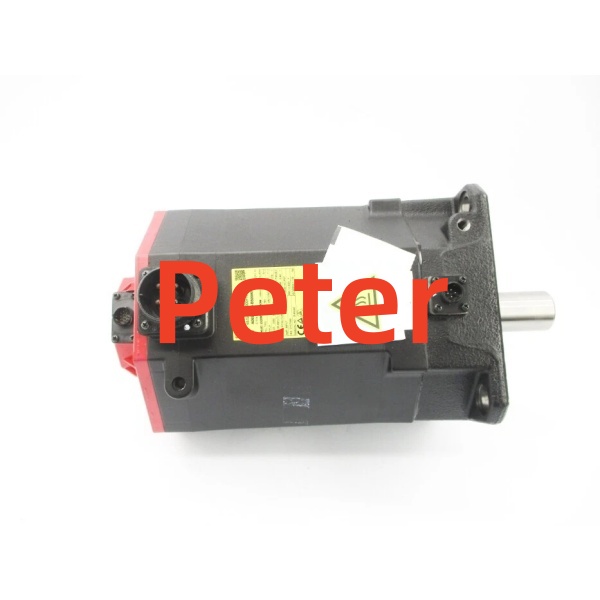

  Fanuc A06B-0269-B500#0100

Product Introduction (No Fluff)



The Fa#0100 is a high-performance Alpha series spindle motor designed for demanding CNC machining centers and turning centers. Engineered for high rigidity and precision, it supports advanced functions like rigid tapping, where the spindle rotation and Z-axis feed are fully synchronized for high-speed, high-accuracy threading.

Sourcing this exact OEM replacement part prevents prolonged machine downtime and ensures seamless integration with existing Fanuc spindle amplifiers. Keeping verified new surplus stock on hand drastically reduces lead times during critical spindle failures.



QA & Testing SOP (Dynamic & Transparent)

Spindle motors demand rigorous mechanical and electrical validation. Ev#0100 undergoes a strict inspection process:

1. Anti-Counterfeit Inspection: Verify Fanuc factory nameplate, serial number, and encoder housing against OEM baselines.
2. Winding Resistance & Megger Test: Verify stator winding balance and insulation resistance (>100 MΩ) to rule out moisture ingress or internal shorts.
3. Encoder Signal Test: Rotate the shaft and verify clean MZi encoder feedback signals to ensure proper commutation and speed feedback.
4. Mechanical Bearing Check: Inspect bearings for smooth rotation, zero axial/radial play, and no abnormal noise.
5. Packaging: Shipped in heavy-duty protective packaging with a printed QA test report.



Installation Pitfalls & Guide (Engineer to Engineer)

❗ Spindle Amplifier Matching: Fanuc spindle motors must be paired with the correct Alpha spindle amplifier. Ensure the amplifier parameters match the motor ID code exactly. Mismatched parameters can cause overcurrent alarms or motor damage.

❗ Encoder Feedback Wiring: This motor uses a serial encoder interface. Ensure the feedback cable is properly shielded and routed away from high-voltage spindle power cables. Poor shielding can cause #368 or #369 serial encoder alarms.

❗ Cooling System Integrity: If this is an air-cooled model, verify the cooling fan is operational and air intake filters are clean. For liquid-cooled variants, ensure coolant flow rate and temperature are within spec before running at high RPM. Overheating will trigger thermal overload alarms.

❗ Grounding: Fanuc systems are highly sensitive to EMI. Ensure the motor chassis is properly grounded to the machine frame using a dedicated, low-impedance ground strap. Floating grounds can cause erratic spindle behavior and #910/#930 alarms.

Replacement Protocol:

1. Pre-Install: Lock out the CNC machine power. Disconnect the spindle power (U, V, W) and encoder feedback cables. Note the belt/pulley configuration.
2. Removal: Remove the failed motor. Inspect the coupling, pulley, and shaft for wear or misalignment.
3. Install: Mount #0100. Reconnect power and feedback cables. Verify the last amplifier JX1B has the required short-circuit plug if this is the end of the servo/spindle bus.
4. Power-on Test: Restore power. Check for alarms. Run a low-speed rotation test to verify direction and encoder feedback. Gradually ramp up to operating speed while monitoring spindle load meter.

Technical FAQ

Is this an exact drop-in replacement for my older A06B-0269 motor?
Yes, provided the base part num matches and the #0100 suffix matches your existing motor’s specification sheet. The suffix denotes specific winding, encoder, and mechanical configurations. Verify the nameplate matches exactly before installation.

Why is this listed as “New Surplus” instead of factory-new?
This is genuine Fanuc stock that was never installed on a machine. It has been stored in climate-controlled inventory rather than exposed to coolant mist, vibration, and continuous thermal cycling. You receive the exact same performance and lifespan as a factory-fresh unit, typically at a significantly lower cost without the 12-16 week OEM lead time.

Can I hot-swap this spindle motor while the machine is powered?
No. Never disconnect or connect a spindle motor under power. Doing so can cause voltage transients that will destroy the spindle amplifier’s IGBT modules. Always follow proper lockout/tagout procedures.

What is the warranty coverage on this part?
We provide a standard 12-month functional warranty. If the motor fails due to bearing seizure, winding fault, or encoder failure under normal operating conditions within that window, we replace it. Our QA testing proves the motor passed all electrical and mechanical tests before it left our bench.

My spindle is vibrating at high RPM. Is the motor bad?
Not necessarily. Before replacing #0100, check the tool holder taper for debris, verify the drawbar tension, and inspect the spindle bearings in the machine headstock. Vibration can also be caused by an unbalanced tool assembly or misaligned belt drive. Only replace the motor if runout and mechanical tests confirm an internal rotor or bearing fault.
